Recombinant SARS-CoV-2 B.1.640.2 S (GCN4-IZ) His Protein, CF

Bio-Techne includes R&D Systems | Catalog # 11105-CV

IHU Variant
Catalog #
Availability
Size / Price
Qty
Loading...
11105-CV-100

Key Product Details

Source

HEK293

Accession #

Conjugate

Unconjugated

Applications

Bioactivity

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike protein
SARS-CoV-2 B.1.640.2 Spike
(Val16-Lys1211)
(Glu96Gln, Cys136del, Asn137del, Asp138del, Pro139del, Phe140del, Leu141del, Gly142del, Val143del, Tyr144del, Arg190Ser, Asp215His, Arg346Ser, Asn394Ser, Tyr449Asn, Glu484Lys, Phe490Ser, Asn501Tyr, Asp614Gly, Pro681His, Thr859Asn, Asp1139His)
(Arg682Ser, Arg685Ser, Lys986Pro, Val987Pro)
Accession # YP_009724390.1
GCN4-IZ 6-His tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Val16

Predicted Molecular Mass

137 kDa

SDS-PAGE

140-160 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).

Scientific Data Images for Recombinant SARS-CoV-2 B.1.640.2 S (GCN4-IZ) His Protein, CF

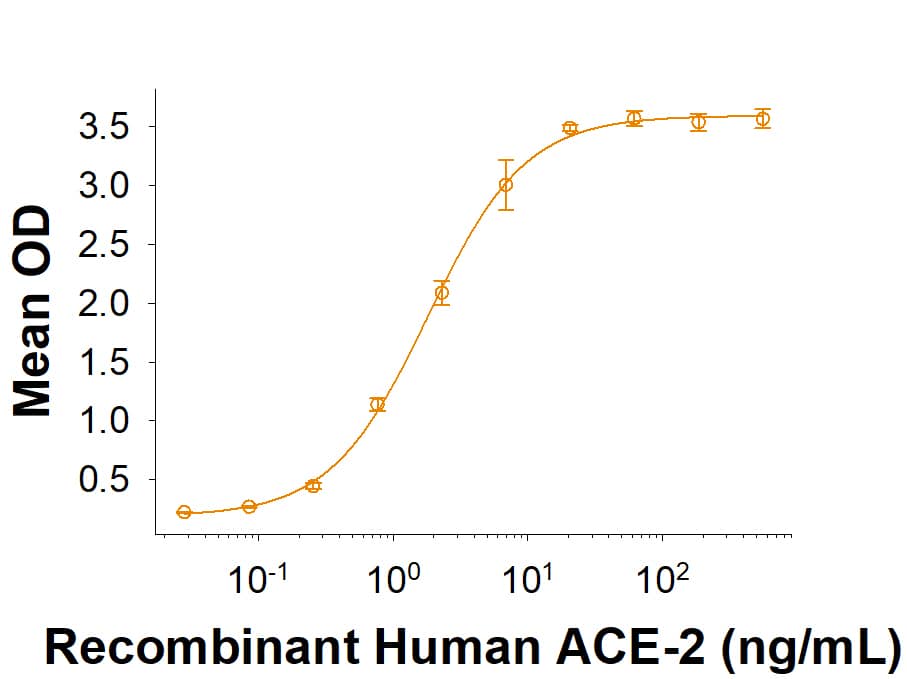

Recombinant SARS-CoV-2 B.1.640.2 Spike (GCN4-IZ) His-tag Protein Binding Activity.

Recombinant SARS-CoV-2 B.1.640.2 Spike (GCN4-IZ) His-tag Protein (Catalog # 11105-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

Recombinant SARS-CoV-2 B.1.640.2 Spike (GCN4-IZ) His-tag Protein SDS-PAGE.

2 μg/lane of Recombinant SARS-CoV-2 B.1.640.2 Spike (GCN4-IZ) His-tag Protein (Catalog # 11105-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 140-160 kD and 280-320 kDa, respectively.

Formulation, Preparation and Storage

11105-CV
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Spike

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180 kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A metallopeptidase, angiotensin-converting enzyme 2 (ACE2), has been identified as a functional receptor for SARS-CoV-2 through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (6, 7). The S protein of SARS-CoV-2 shares 75% and 29% amino acid (aa) sequence identity with the S protein of SARS-CoV-1 and MERS, respectively. A SARS-CoV-2 variant B.1.640.2 (IHU variant) carrying 13 aa substitutions and 9 aa deletions in the spike was identified in samples from France, Indonesia, and Republic of the Congo (8). Whether these mutations in RBD would cause more severe symptom or decrease the efficacy of vaccine-induced immunity is still under investigation.

References

  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
  6. Li, W. et al. (2003) Nature 426:450.
  7. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  8. Colson, P. et al. (2021) medRxiv https://doi.org/10.1101/2021.12.24.21268174.

Long Name

Spike Protein

Alternate Names

S Protein

Entrez Gene IDs

918758 (HCoV-229E); 2943499 (HCoV-NL63); 39105218 (HCoV-OC43); 37616432 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)

Gene Symbol

S

UniProt

Additional Spike Products

Product Documents for Recombinant SARS-CoV-2 B.1.640.2 S (GCN4-IZ) His Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant SARS-CoV-2 B.1.640.2 S (GCN4-IZ) His Protein, CF

For research use only

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

÷
=
