Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike S1 Subunit protein Val16-Pro681 (Thr19Arg, Gly142Asp, Glu156Gly, Phe157del, Arg158del, Leu452Arg, Thr478Lys, Asp614Gly, Pro681Arg), with a C-terminal 6-His tag
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal sequence Analysis
Predicted Molecular Mass
100-110 kDa, under reducing conditions.
Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).
Recombinant SARS-CoV-2 B.1.617.2 S1 His-tag Protein, CF Scientific Data Examples

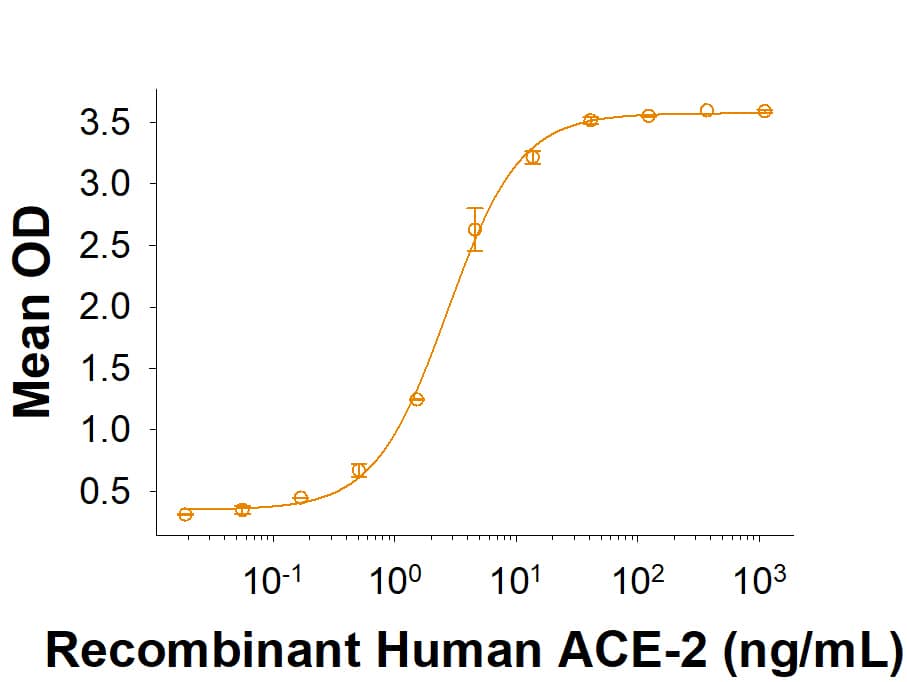

Recombinant SARS-CoV-2 B.1.617.2 Spike S1 Subunit His-tag Protein Binding Activity.
Recombinant SARS-CoV-2 B.1.617.2 Spike S1 Subunit His-tag Protein (Catalog # 11132-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

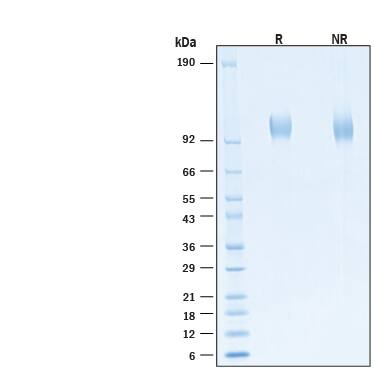

Recombinant SARS-CoV-2 B.1.617.2 Spike S1 Subunit His-tag Protein SDS-PAGE.
2 μg/lane of Recombinant SARS-CoV-2 B.1.617.2 Spike S1 Subunit His-tag Protein (Catalog # 11132-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 100-110 kDa.
Formulation, Preparation and Storage
What does CF mean?
CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our
Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant
protein to be stored at a more dilute concentration.
The carrier free version does not contain BSA.
What formulation is right for me?
In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or
as an ELISA standard.
In contrast, the carrier free protein is recommended for applications, in which the presence of BSA
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitute at 500 μg/mL in PBS.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
3 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: Spike S1 Subunit
SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1). SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into the S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). The S1 protein of SARS-CoV-2 shares 65% and 22% amino acid (aa) sequence identity with the S1 protein of SARS-CoV-1 and MERS, respectively. The S Protein of the SARS-CoV-2 virus, like the SARS-CoV-1 counterpart, binds Angiotensin-Converting Enzyme 2 (ACE2), but with much higher affinity and faster binding kinetics through the receptor binding domain (RBD) located in the C-terminal region of S1 (6). Based on structural biology studies, the RBD can be oriented either in the up/standing or down/lying state with the up/standing state associated with higher pathogenicity (7). Polyclonal antibodies to the RBD of the SARS-CoV-2 S1 protein have been shown to inhibit interaction with the ACE2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (8). It has been demonstrated that the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (9, 10). The SARS-CoV-2 delta variant (B.1.617.2) carrying 9 amino acid substitution/deletion in the S1 subunit was identified as a prevalent strain in India and has been detected globally (11, 12). It has higher transmissible rate and more resistant to vaccine (13).
Wu, F. et al. (2020) Nature 579:265.
Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
Bosch, B.J. et al. (2003). J. Virol. 77:8801.
Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
