Mouse B7-1/CD80 Antibody
R&D Systems, part of Bio-Techne | Catalog # AF740
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Validated by
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Asp37-Lys245
Accession # Q00609
Specificity
Clonality
Host
Isotype
Endotoxin Level
Scientific Data Images for Mouse B7-1/CD80 Antibody
Detection of Mouse B7‑1/CD80 by Western Blot.
Western blot shows lysates of C2C12 mouse myoblast cell line. PVDF membrane was probed with 1 µg/mL of Goat Anti-Mouse B7-1/CD80 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF740) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for B7-1/CD80 at approximately 60 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Detection of B7‑1/CD80 in Mouse Splenocytes by Flow Cytometry.

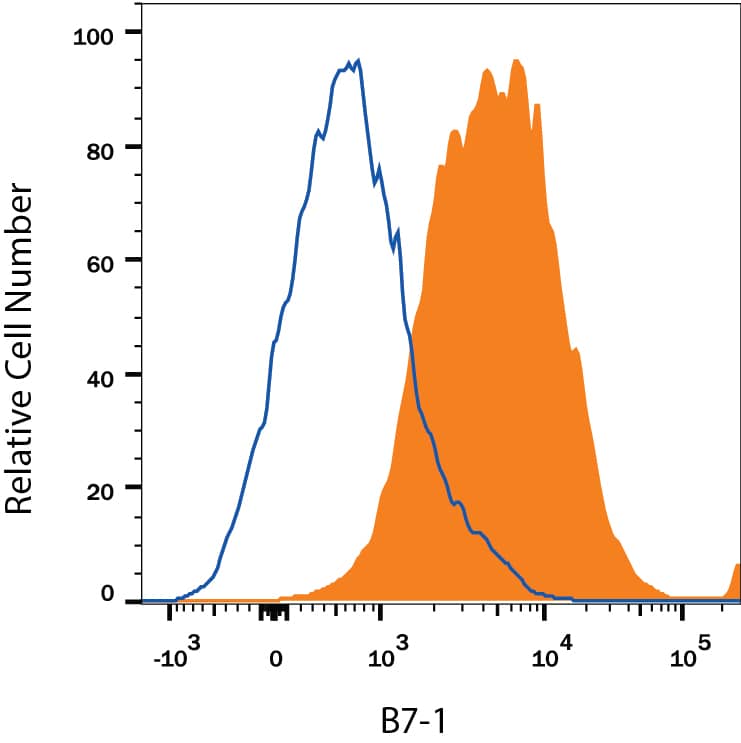

Mouse splenocytes either treated with 200 ng/mL LPS (filled histogram) or unstimulated (open histogram) were stained with Goat Anti-Mouse B7-1/CD80 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF740), followed by Phycoerythrin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0107). View our protocol for Staining Membrane-associated Proteins.Detection of B7‑1/CD80 in Mouse Splenocytes by Flow Cytometry

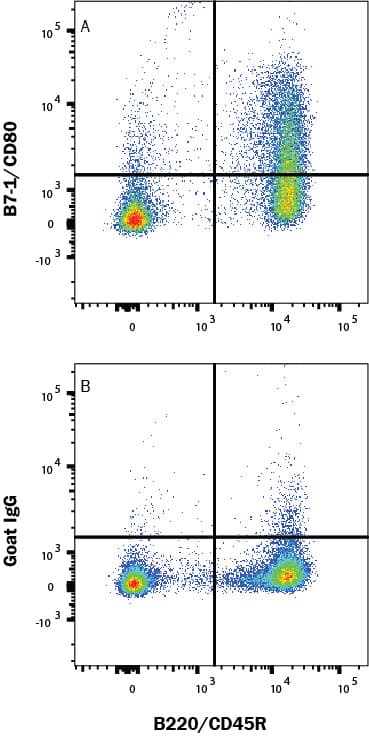

Mouse B6 splenocytes treated with 200 ng/mL LPS for 48 hr were stained with (A) Goat Anti-Mouse B7-1/CD80 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF740) or (B) Goat IgG control antibody (AB-108-C) followed by Phycoerythrin-conjugated Anti-Goat IgG Secondary Antibody (F0107) and Rat Anti-Mouse B220/CD45R Alexa Fluor® 488-conjugated Monoclonal Antibody (FAB1217G). View our protocol for Staining Membrane-associated Proteins.Applications for Mouse B7-1/CD80 Antibody
CyTOF-ready
Flow Cytometry
Sample: Mouse splenocytes treated with LPS
Immunocytochemistry
Sample: Immersion fixed mouse splenocytes
Western Blot
Sample: C2C12 mouse myoblast cell line

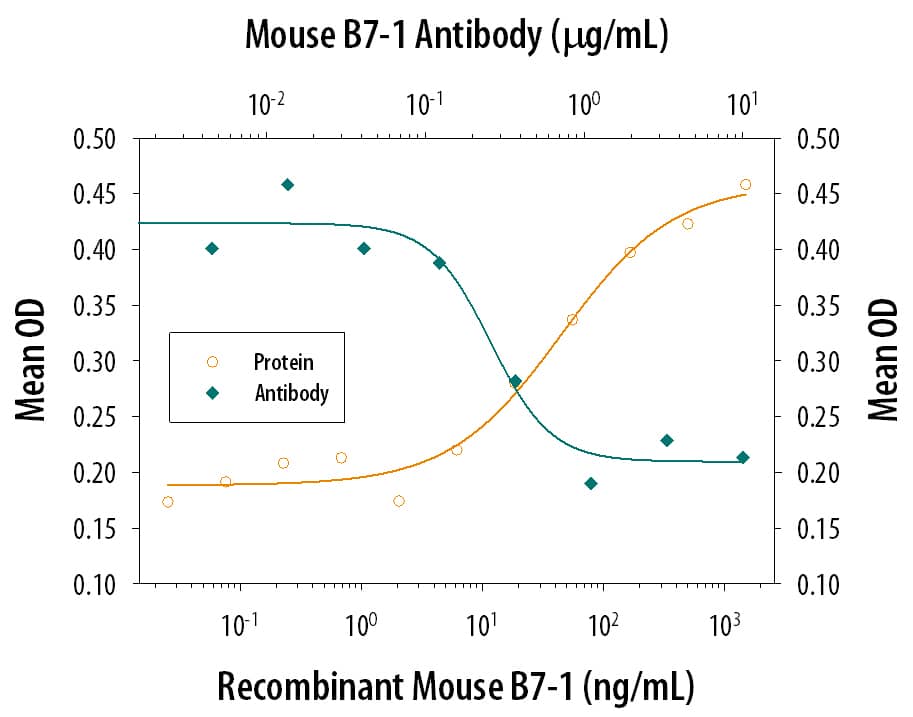

Neutralization

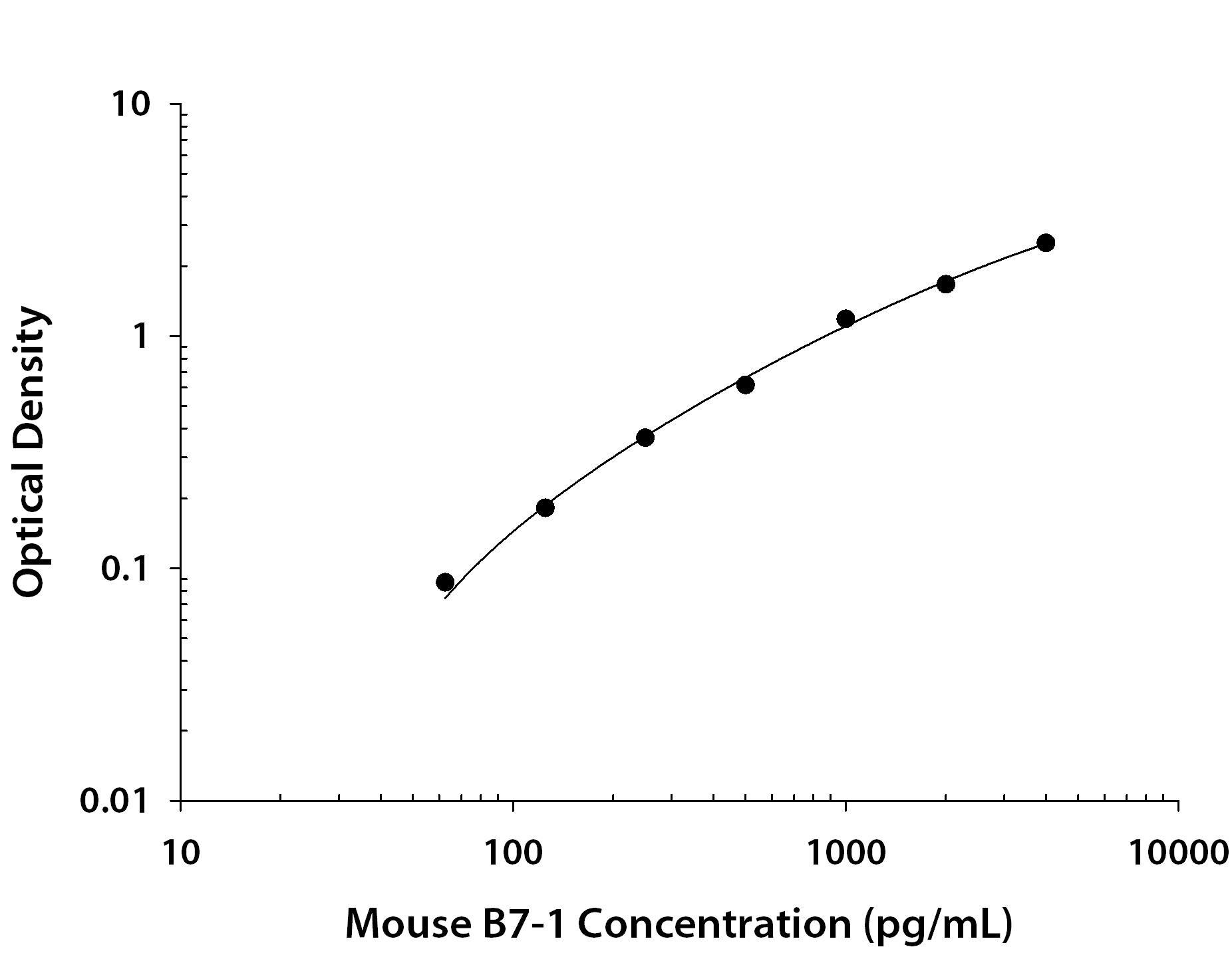

Mouse B7-1/CD80 Sandwich Immunoassay
Reviewed Applications
Read 2 reviews rated 5 using AF740 in the following applications:
Formulation, Preparation, and Storage
Purification
Reconstitution
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: B7-1/CD80
B7-1 and B7-2, together with their receptors CD28 and CTLA-4, constitute one of the dominant costimulatory pathways that regulate T- and B-cell responses. Although both CTLA-4 and CD28 can bind to the same ligands, CTLA-4 binds to B7-1 and B7-2 with a 20‑100 fold higher affinity than CD28 and is involved in the
down‑regulation of the immune response. B7-1 is expressed on activated B cells, activated T cells, and macrophages. B7-2 is constitutively expressed on interdigitating dendritic cells, Langerhans cells, peripheral blood dendritic cells, memory B cells, and germinal center B cells. Additionally, B7-2 is expressed at low levels on monocytes and can be up-regulated through interferon gamma. B7-1 and B7-2 are both members of the immunoglobulin superfamily. Mouse B7-1 is a 306 amino acid (aa) protein containing a putative 37 aa signal peptide, a 190 aa extracellular domain, a 22 aa transmembrane domain, and a 38 aa cytoplasmic domain. Mouse B7-1 and B7-2 share 28% amino acid identity. Mouse and human B7-1 share 44% amino acid identity. However, it has been observed that both human and mouse
B7‑1 and B7‑2 can bind to either human or mouse CD28 and CTLA-4, suggesting that there are conserved amino acids which form the B7-1/B7-2/CD28/CTLA-4 critical binding sites.
References
- Azuma, M. et al. (1993) Nature 366:76.
- Freeman, G.J. et al. (1993) Science 262:909.
- Freeman, G. et al. (1991) J. Exp. Med. 174:625.
- Selvakumar, A. et al. (1993) Immunogenetics 38:292.
- Chen, C. et al. (1994) J. Immunol. 152:4929.
- Freeman, G.J. et al. (1993) J. Exp. Med. 178:2185.
Alternate Names
Gene Symbol
UniProt
Additional B7-1/CD80 Products
Product Documents for Mouse B7-1/CD80 Antibody
Product Specific Notices for Mouse B7-1/CD80 Antibody
For research use only
