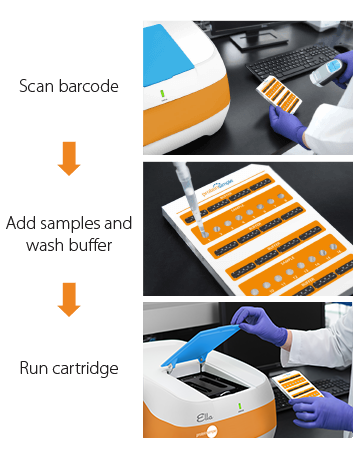

I want to spend less hands-on time doing the immunoassayYou're in a race to make that next discovery, and Ella can help you get there faster. There's no need to split your time between running assays in the lab and analyzing answers at your desk. Simply add your sample and buffers to the Simple Plex cartridge, put it in Ella and start your run. There's only 10-15 minutes of hands-on assay prep time, and she gives you fully analyzed answers in an hour! |
View all citations for the Simple Plex platform.
Please visit our Instrument Citation Database to search our collection of scientific articles that feature our instruments.
"With Ella, we can worry less about manpower and time constraints. It’s convenient, quick, and automated—perfect for pediatric studies with limited sample volume."
Dr. Zhong Youjia, Assistant Professor, Department of Paediatrics, Yong Loo Lin School of Medicine, National University of Singapore
"Ella’s sensitive and tractable workflow is enabling us to tackle large datasets not previously possible with standard ELISA kits. It has enabled us to more quickly and efficiently discover novel connections between hepcidin and inflammation in the context of chronic disease."
Samira Lakhal-Littleton, BSc DPhil, Associate Professor of Cell Physiology, University of Oxford
"We needed assays that were not only excellent at conserving our limited sample volumes but would allow us to test a lot of markers quickly and efficiently. The Luminex and Simple Plex assays proved to be the ideal choice in this case, giving us a level of accuracy and reproducibility that we’ve been unable to get with other platforms."
Dr. Melissa Munroe, M.D., Ph.D., Research Associate, Oklahoma Medical Research Foundation (OMRF)
"Simple Plex assays on Ella gave us speed and efficiency so we could complete our assays quickly, and the high quality of the data meant that we could easily see differences between disease state samples and controls. Plus, sample preparation was so simple it reduced chances of errors significantly."
Paulomi Aldo, Research Associate and Reproductive Sciences Core Manager, Department of Obstetrics, Gynecology and Reproductive Sciences, Yale University
"Ella allows for reproducible sample data with minimal sample input. The lower volume usage allows for the expansion of research into novel areas of angiogenesis and inflammation as they pertain to many forms of cancer."
Andrew Nixon Ph.D., M.B.A.,, Associate Professor, Medicine & Director, Duke University

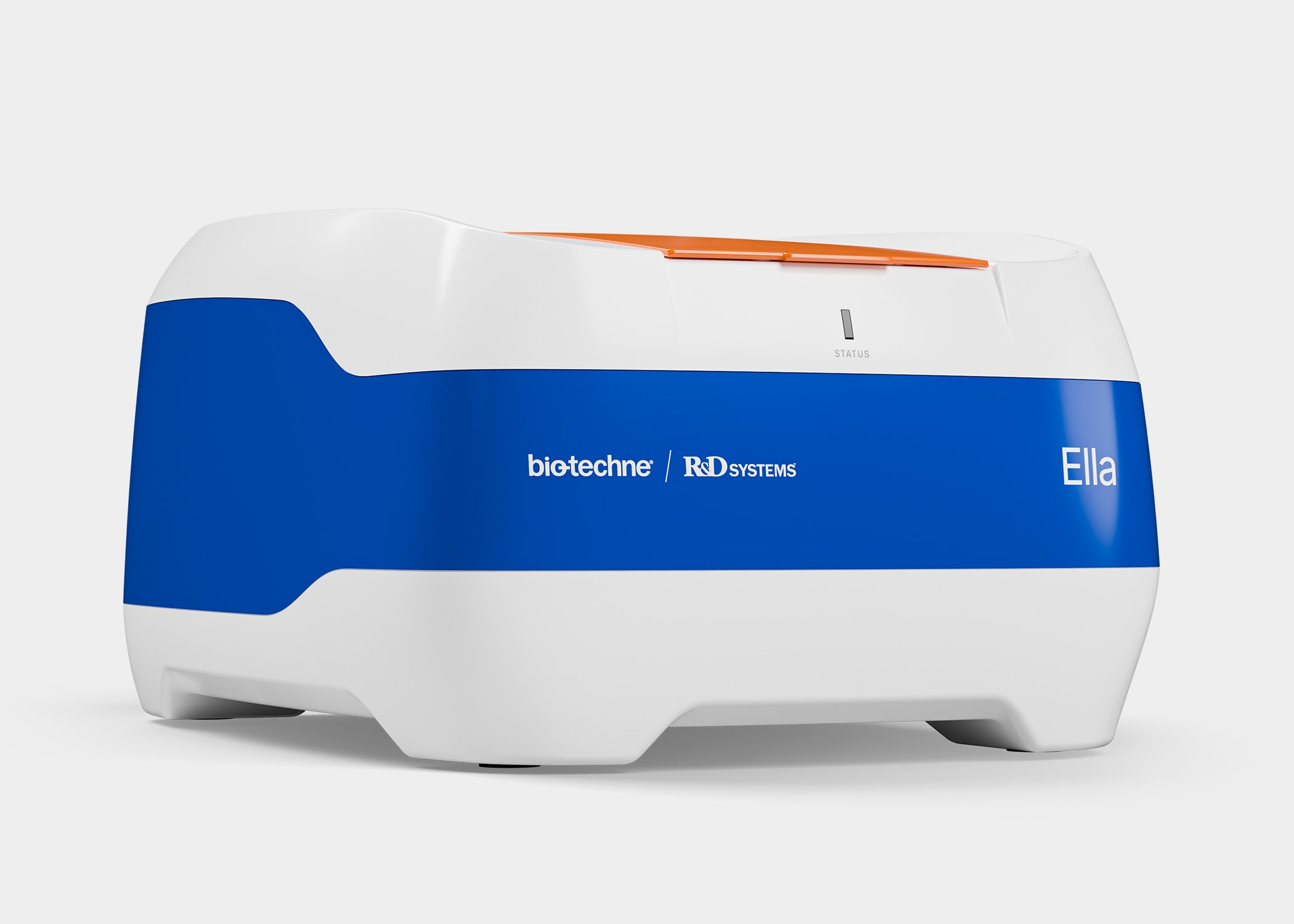

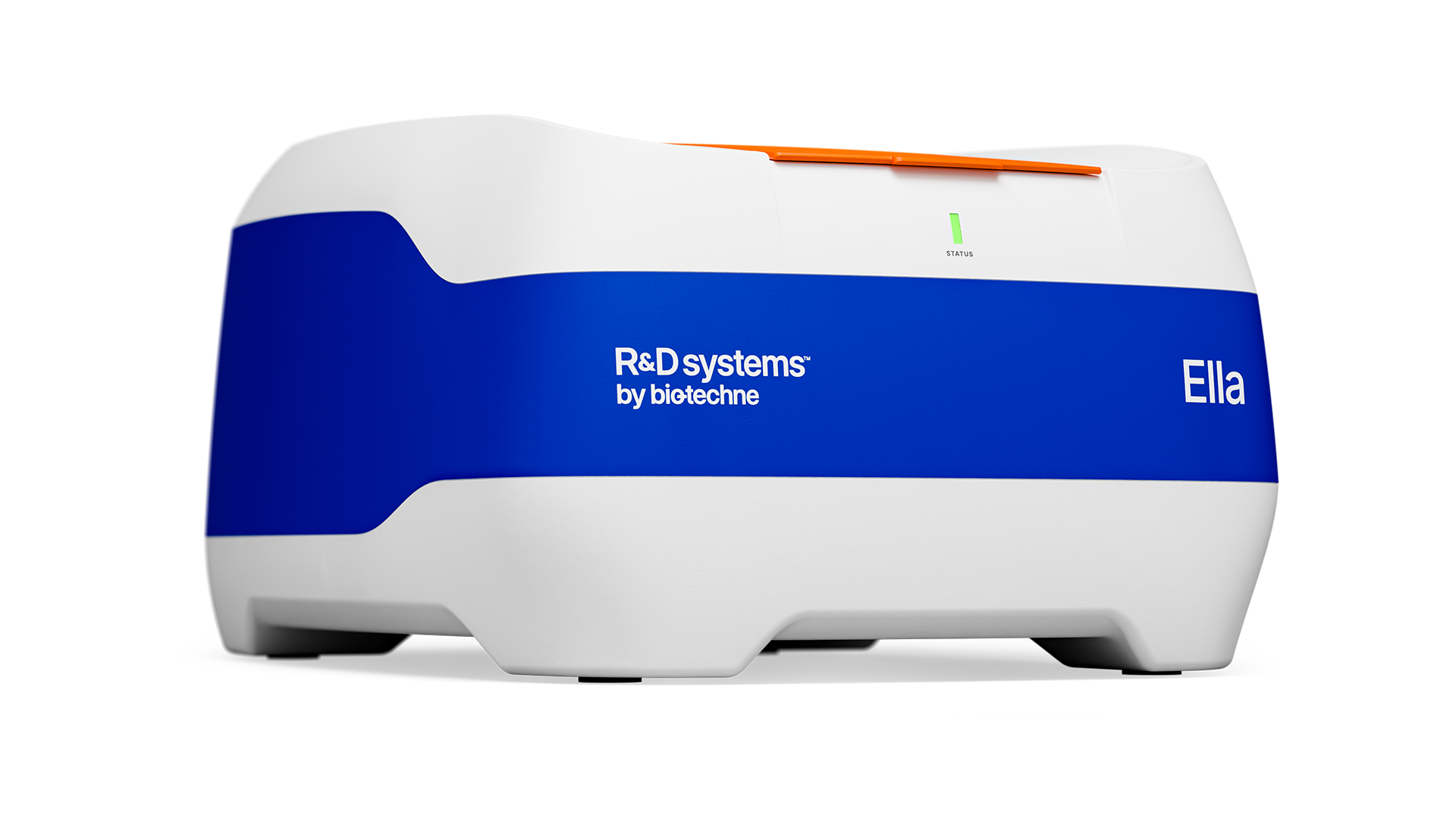

Ella does immunoassays in a microfluidic Simple Plex cartridge. It's like using a pre-kitted immunoassay, except everything's pre-loaded on the cartridge—even the calibration curve! All you need to do is add your sample and buffers and put the cartridge in Ella.
The immunoassay part works like this: sample runs through a microfluidic channel that binds your protein of interest. Next, Ella washes off unbound analyte and adds a detection reagent. Because each channel has three Glass Nano Reactors (GNRs) coated with a capture antibody, you get triplicate answers for each sample. Answers are then generated from the factory-calibrated standard curve that comes with every cartridge. Sound familiar? It's the same immunoassay you're used to, just without the errors that come with traditional assays.
Quantify cytokine and pro-inflammatory responses to SARS-CoV-2 infection in 90 minutes using an automated, multianalyte format.
Simple Plex assays enable rapid and reproducible quantification of inflammatory responses such as cytokine release syndrome and sepsis.
Simple Plex assays for cancer research have the sensitivity to profile low abundance cancer biomarkers.
Measure key neuroscience biomarkers such as neurofilament light (NF-L) and neurofilament heavy (NF-H) in CSF, plasma, and serum.
The Simple Plex HEK 293 HCP 3G assay on the Ella platform offers broad detection coverage of this host cell protein (HCP).
Iterate your workflow faster with Simple Plex CHO HCP 3G-1 assays for process-related impurity testing.
With a four-log range of detection, Simple Plex assays have the sensitivity to pick up even very low picogram-per-milliliter levels of endogenous mouse or rat analytes.
Get highly reproducible adeno-associated virus and lentivirus titer data with no manual steps in just 90 minutes.
| Description | Single Plex Specification | Multianalyte Specification | Multiplex Specification | Customizable Specification |
|---|---|---|---|---|
| Sample Volume Required | 2.5-25 µL | 2.5-25 µL | 2.5-25 µL | 2.5-25 µL |
| Dynamic range | 3-4 logs | |||
| Sensitivity | <1pg/mL (assay dependent) | |||
| Assay Runtime | 75 Minutes | 80 Minutes | ||
| Samples per run | Up to 72 | Up to 32 | Up to 32 | Up to 48 |
| Plex level | 1 | Up to 4 | Up to 8 | 1 |
| Results per run | Up to 72 | Up to 128 | Up to 256 | Up to 48 |
| Replicates per result | Triplicate | Triplicate | Duplicate | Triplicate |
| Ella Weight | 16 kg (35.3 lbs) | |||
| Ella Dimensions (closed) | 37 cm W x 54 cm D x 26 cm H | |||
| Ella Power | 100-240 V(AC), 300 VA, 45/65 Hz, Class I Installation Category(Over Voltage) II | |||
| Ella Operating temperature | 15 to 30 °C (59° to 86°F) | |||
| Ella Operating humidity | 15-80% relative, non-condensing | |||
