Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF

Name: Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF
Brand: R&D Systems
SKU: 10659-CV
Price: 548 USD

R&D Systems, Inc. a Bio-Techne Brand

Catalog # 10659-CV

Citations (1)

Product Datasheet / COA / SDS

CHO Expressed. Trimerization Domain

Catalog #

Availability

Size / Price

Qty

Setting the standard in quality research reagents

Key Product Details

Source:	CHO
Accession #:	YP_009724390.1
Applications:	Bioactivity

View Full Technical Details for Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF

Product Specifications for Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF

Source

Chinese Hamster Ovary cell line, CHO-derived sars-cov-2 Spike RBD protein

SARS-CoV-2 Spike RBD (Arg319-Phe541) Accession # YP_009724390.1	GCN4-IZ	HHHHHH
N-terminus		C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal sequence Analysis

Arg319

Predicted Molecular Mass

31 kDa

SDS-PAGE

37-41 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).

Scientific Data Examples for Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF

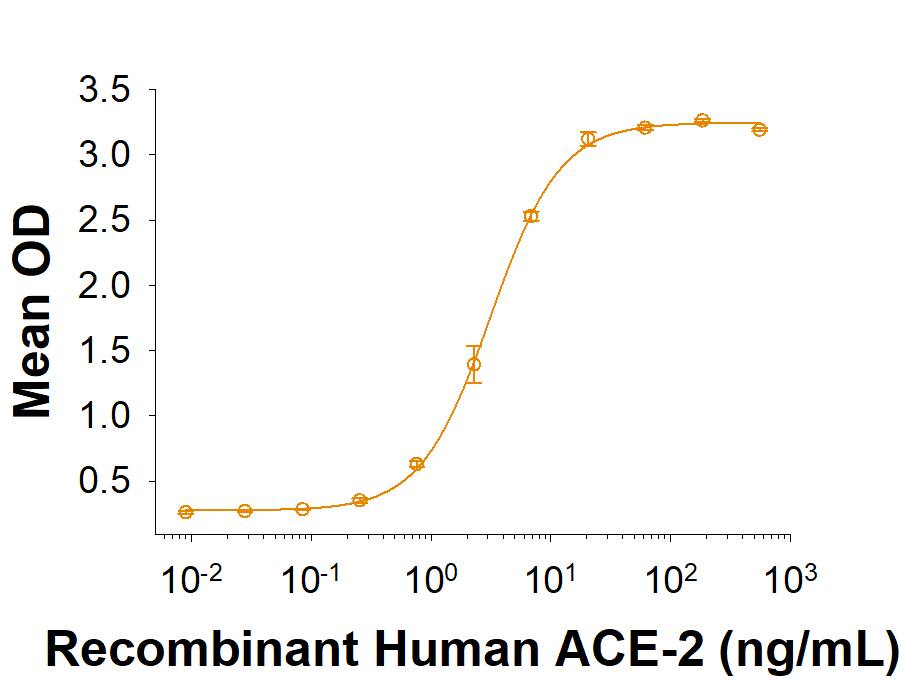

	Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His-tag Protein Binding Activity. Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His-tag (Catalog # 10659-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.
	Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His-tag Protein SDS-PAGE. 2 μg/lane of Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His-tag (Catalog # 10659-CV) was resolved with SDS-PAGE under reducing (R) conditions and visualized by Coomassie® Blue staining, showing a band at 37-41 kDa.

Formulation, Preparation and Storage

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10659-CV

Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution	Reconstitute at 500 μg/mL in PBS.
Shipping	The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: Spike RBD

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS‑CoV and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A receptor binding domain (RBD) in the C-terminus of the S1 subunit has been identified and the RBD of SARS-CoV-2 shares 73% amino acid (aa) identity with the RBD of the SARS-CoV-1, but only 22% aa identity with the RBD of MERS‑CoV (6, 7). The low aa sequence homology is consistent with the finding that SARS and MERS‑CoV bind different cellular receptors (8). The RBD of SARS-CoV-2 binds a metallopeptidase, angiotensin-converting enzyme 2 (ACE-2), similar to SARS-CoV-1, but with much higher affinity and faster binding kinetics (9). Before binding to the ACE-2 receptor, structural analysis of the S1 trimer shows that only one of the three RBD domains is in the "up" conformation. This is an unstable and transient state that passes between trimeric subunits but is nevertheless an exposed state to be targeted for neutralizing antibody therapy (10). Polyclonal antibodies to the RBD of the SARS-CoV-2 protein have been shown to inhibit interaction with the ACE-2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (11). There is also promising work showing that the RBD may be used to detect presence of neutralizing antibodies present in a patient's bloodstream, consistent with developed immunity after exposure to the SARS-CoV-2 (12).

Item	Value
References	Wu, F. et al. (2020) Nature 579:265. Tortorici, M.A. and D. Veesler (2019). Adv. Virus Res. 105:93. Bosch, B.J. et al. (2003). J. Virol. 77:8801. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871. Millet, J.K. and G. R. Whittaker (2015) Virus Res. 202:120. Li, W. et al. (2003) Nature 426:450. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197. Jiang, S. et al. (2020) Trends. Immunol. https://doi.org/10.1016/j.it.2020.03.007. Ortega, J.T. et al. (2020) EXCLI J. 19:410. Wrapp, D. et al. (2020) Science 367:1260. Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.1 Okba, N. M. A. et al. (2020). Emerg. Infect. Dis. https://doi.org/10.3201/eid2607.200841.
Long Name	Spike Receptor Binding Domain
Entrez Gene IDs	3200426 (HCoV-HKU1); 14254594 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)
Alternate Names	Spike RBD

Citations for Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF (1)

Showing 1 - 1 of 1 citation Showing All

Filter By:

Search Title:

Citations are publications that use Bio-Techne products. Selected citations for Recombinant SARS-CoV-2 Spike RBD (GCN4-IZ) His Protein, CF include:

Species: Mouse
Sample Types: In Vivo
Applications: Reference Standard

K Tamminen et al. (2021), Fusion Protein of Rotavirus VP6 and SARS-CoV-2 Receptor Binding Domain Induces T Cell Responses Vaccines, 9(7).
PMID: 34358149
