Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse

Cited:

Mouse

Applications

Validated:

Immunocytochemistry, Simple Western, Western Blot

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # 1210B

Product Specifications

Immunogen

Phosphopeptide containing the human PDGF R beta(Y751) site
Accession # P09619

Specificity

Detects human and mouse PDGF R beta when phosphorylated at Y751 in Western blots.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for Human/Mouse Phospho-PDGF R beta (Y751) Antibody

Detection of Human and Mouse Phospho-PDGF R beta (Y751) antibody by Western Blot.

Detection of Human and Mouse Phospho-PDGF R beta (Y751) by Western Blot.

Western blot shows lysates of CCD-1070Sk human foreskin fibroblast cell line and NIH-3T3 mouse embryonic fibroblast cell line untreated (-) or treated (+) with 100 ng/mL Recombinant Human PDGF-BB (Catalog # 220-BB) for 20 minutes. PVDF membrane was probed with 0.1 µg/mL of Rabbit Anti-Human/Mouse Phospho-PDGF R beta (Y751) Monoclonal Antibody (Catalog # MAB9027) followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # HAF008). A specific band was detected for PDGF R beta at approximately 190 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Phospho-PDGF R beta (Y751) antibody in BJ Human Cell Line by Immunocytochemistry (ICC).

Phospho-PDGF R beta (Y751) in BJ Human Cell Line.

PDGF R beta phosphorylated at Y751 was detected in immersion fixed BJ human skin fibroblast cell line stimulated (top panel), and unstimulated (bottom panel), with Recombinant Human PDGF-BB (Catalog # 220-BB) using Rabbit Anti-Human/Mouse Phospho-PDGF R beta (Y751) Monoclonal Antibody (Catalog # MAB9027) at 5 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Rabbit IgG Secondary Antibody (red; Catalog # NL004) and counterstained with DAPI (blue). Specific staining was localized to cell surfaces and cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

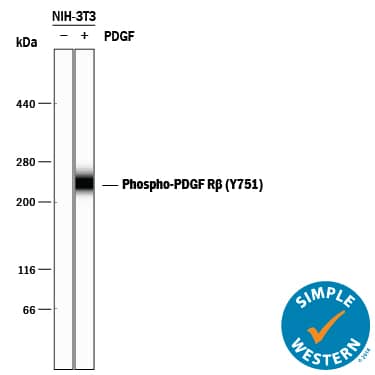

Detection of Mouse Phospho-PDGF R beta (Y751) antibody by Simple WesternTM.

Detection of Mouse Phospho-PDGF R beta (Y751) by Simple WesternTM.

Simple Western lane view shows lysates of NIH-3T3 mouse embryonic fibroblast cell line untreated (-) or treated (+) with 100 ng/mL Recombinant Human PDGF-BB (Catalog # 220-BB) for 20 minutes, loaded at 0.2 mg/mL. A specific band was detected for PDGF R beta at approximately 240 kDa (as indicated) using 1 µg/mL of Rabbit Anti-Human/Mouse Phospho-PDGF R beta (Y751) Monoclonal Antibody (Catalog # MAB9027). This experiment was conducted under reducing conditions and using the 66-440 kDa separation system.

Applications for Human/Mouse Phospho-PDGF R beta (Y751) Antibody

Application
Recommended Usage

Immunocytochemistry

5-25 µg/mL
Sample: Immersion fixed BJ human skin fibroblast cell line

Simple Western

1 µg/mL
Sample: NIH‑3T3 mouse embryonic fibroblast cell line treated (+) with Recombinant Human PDGF‑BB (Catalog # 220-BB)

Western Blot

0.1 µg/mL
Sample: CCD‑1070Sk human foreskin fibroblast cell line and NIH‑3T3 mouse embryonic fibroblast cell line treated with Recombinant Human PDGF‑BB (Catalog # 220-BB)

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: PDGF R beta

PDGF is a major serum mitogen that can exist as a homo or hetero-dimeric protein consisting of disulfide-linked PDGF-A and PDGF‑B chains. The PDGF-AA, PDGF‑BB and PDGF-AB isoforms have been shown to bind to two distinct cell surface PDGF receptors with different affinities. Where as PDGF R alpha binds all three PDGF isoforms with high affinity, PDGF R beta binds PDGF‑BB only with high-affinity. Both PDGF R alpha and PDGF R beta are members of the class III subfamily of receptor tyrosine kinases (RTK) that also includes the receptors for M-CSF, SCF and Flt3 ligand. All class III RTKs are characterized by the presence of five immunoglobulin‑like domains in their extracellular region and a split kinase domain in their intracellular region. PDGF binding induces receptor homo-and hetero‑dimerization and signal transduction. The expression of the alpha and beta receptors is independently regulated in various cell types. Recombinant soluble PDGF R beta binds PDGF with high affinity and is potent PDGF antagonist.

References

  1. Heldin, C.H. and L. Claesson-Welsh (1994) in Guidebook to Cytokines and Their Receptors, Nicola, N.A. ed. Oxford University Press, New York, p. 202.

Long Name

Platelet-derived Growth Factor Receptor beta

Alternate Names

CD140b, PDGFRB

Entrez Gene IDs

5159 (Human); 18596 (Mouse); 24629 (Rat)

Gene Symbol

PDGFRB

UniProt

Additional PDGF R beta Products

Product Documents for Human/Mouse Phospho-PDGF R beta (Y751) Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human/Mouse Phospho-PDGF R beta (Y751) Antibody

For research use only
