Human CCL4/MIP-1 beta MAb (Clone 24006)
R&D Systems, part of Bio-Techne | Catalog # MAB271
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Conjugate
Catalog #
Key Product Details
Validated by
Biological Validation
Species Reactivity
Validated:
Human
Cited:
Human, Primate - Macaca fascicularis (Crab-eating Monkey or Cynomolgus Macaque)
Applications
Validated:
Western Blot, ELISA Capture (Matched Antibody Pair), Neutralization, Intracellular Staining by Flow Cytometry, CyTOF-ready
Cited:
Immunohistochemistry, Immunohistochemistry-Frozen, Western Blot, Neutralization, Flow Cytometry, Immunocytochemistry, Antibody Array Development, ELISA Development, ELISpot Development, Immunodepletion, Lateral Flow Assay, Luminex Development, CyTOF-reported
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG2B Clone # 24006
Product Specifications
Immunogen
S. frugiperda insect ovarian cell line Sf 21-derived recombinant human CCL4/MIP-1 beta
Ala24-Asn92
Accession # P13236
Ala24-Asn92
Accession # P13236
Specificity
Detects human CCL4/MIP-1 beta in ELISAs and Western blots. In Western blots, less than 4% cross-reactivity with recombinant human(rh) CCL3/MIP‑1 alpha and no cross-reactivity with recombinant mouse (rm) CCL3/MIP‑1 alpha, rmCCL4/MIP‑1 beta, rhCXCL8/IL‑8, rhCCL5, rhCXCL1, rhCXCL2, or rhCXCL3 is observed.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG2B
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.
Scientific Data Images for Human CCL4/MIP-1 beta MAb (Clone 24006)
Chemotaxis Induced by CCL4/MIP-1 beta and Neutralization by Human CCL4/MIP-1 beta Antibody.
Recombinant Human CCL4/MIP-1 beta (Catalog # 271-BME) chemoattracts the BaF3 mouse pro-B cell line transfected with human CCR5 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Human CCL4/MIP-1 beta (0.04 µg/mL) is neutralized (green line) by increasing concentrations of Mouse Anti-Human CCL4/MIP-1 beta Monoclonal Antibody (Catalog # MAB271). The ND50 is typically 0.3-1.2 µg/mL.

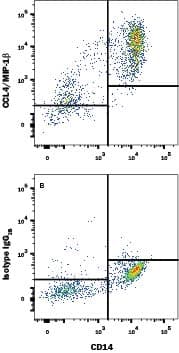

Detection of CCL4/MIP‑1 beta in Human Blood Monocytes by Flow Cytometry.
Human peripheral blood monoctyes treated with LPS and Monensin for 5 hours were stained with Mouse Anti-Human CD14 APC-conjugated Monoclonal Antibody (Catalog # FAB3832A) and either (A) Mouse Anti-Human CCL4/MIP-1 beta Monoclonal Antibody (Catalog # MAB271) or (B) Mouse IgG2BFlow Cytometry Isotype Control (Catalog # MAB0041) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.
Human CCL4 / MIP-1 beta ELISA Standard Curve
Recombinant Human CCL4/MIP-1 beta (Catalog # 271-BME) was serially diluted and captured by Mouse Anti-Human CCL4/MIP-1 beta Monoclonal Antibody (Catalog # MAB271) coated on a Clear Polystyrene Microplate (Catalog # DY990). Goat Anti-Human CCL4/MIP-1 beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF-271-NA) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998)Applications for Human CCL4/MIP-1 beta MAb (Clone 24006)
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Intracellular Staining by Flow Cytometry
0.25 µg/106 cells
Sample: Human peripheral blood monoctyes treated with LPS and Monensin were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Sample: Human peripheral blood monoctyes treated with LPS and Monensin were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Western Blot
1 µg/mL
Sample: Recombinant Human CCL4/MIP-1 beta (Catalog # 271-BME)
Sample: Recombinant Human CCL4/MIP-1 beta (Catalog # 271-BME)
Neutralization
Measured by its ability to neutralize CCL4/MIP-1 beta-induced chemotaxis in the BaF3 mouse pro-B cell line transfected with human CCR5. The Neutralization Dose (ND50) is typically 0.3-1.2 µg/mL in the presence of 0.04 µg/mL Recombinant Human CCL4/MIP-1 beta.
Human CCL4/MIP-1 beta Sandwich Immunoassay
Please Note: Optimal dilutions of this antibody should be experimentally determined.
Reviewed Applications
Read 5 reviews rated 5 using MAB271 in the following applications:
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: CCL4/MIP-1 beta
Alternate Names
Exodus-3, MIP-1 beta, MIP1 beta
Entrez Gene IDs
Gene Symbol
CCL4
UniProt
Additional CCL4/MIP-1 beta Products
Product Documents for Human CCL4/MIP-1 beta MAb (Clone 24006)
Product Specific Notices for Human CCL4/MIP-1 beta MAb (Clone 24006)
For research use only
