Western blot shows lysates of Neuro-2A mouse neuroblastoma cell line. PVDF membrane was probed with 0.3 µg/mL Goat Anti-Mouse/Rat PTP1B Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3954) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). For additional reference, Recombinant Human PTP1B (Catalog # 1366-PT) and recombinant mouse PTP1B 5 ng/lane) were included. A specific band for PTP1B was detected at approximately 50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

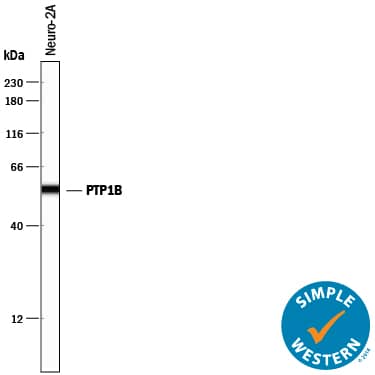

Detection of Mouse PTP1B by Simple Western^TM.

Simple Western lane view shows lysates of Neuro-2A mouse neuroblastoma cell line, loaded at 0.2 mg/mL. A specific band was detected for PTP1B at approximately 56 kDa (as indicated) using 5 µg/mL of Goat Anti-Mouse/Rat PTP1B Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3954) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Applications for Mouse/Rat PTP1B Antibody

Application

Recommended Usage

Simple Western

5 µg/mL
Sample: Neuro‑2A mouse neuroblastoma cell line

Western Blot

0.3 µg/mL
Sample: Neuro-2A mouse neuroblastoma cell line

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: PTP1B

Protein tyrosine phosphatase 1B (PTP1B), also known as protein tyrosine phosphatase, non-receptor type 1 (PTPN1) and placental protein tyrosine phosphatase, dephosphorylates tyrosine residues in proteins. PTP1B is a cytosolic enzyme anchored in the endoplasmic reticulum that plays a critical role in regulating growth factor responsiveness. PTP1B knockout mice show increased resistance to high fat diet-induced obesity and have exaggerated responses to insulin.

Long Name

Protein Tyrosine Phosphatase 1B

Alternate Names

PTPN1

Entrez Gene IDs

5770 (Human); 19246 (Mouse)

Gene Symbol

PTPN1

UniProt

P35821

Additional PTP1B Products

Product Documents for Mouse/Rat PTP1B Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Mouse/Rat PTP1B Antibody

For research use only

Citations
Reviews

Mouse/Rat PTP1B Antibody

R&D Systems, part of Bio-Techne | Catalog # AF3954

Key Product Details

Species Reactivity

Validated:

Cited:

Applications

Validated:

Cited:

Label

Antibody Source

View all PTP1B Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Mouse/Rat PTP1B Antibody

Detection of Mouse/Rat PTP1B by Western Blot.

Detection of Mouse PTP1B by Simple WesternTM.
