Key Product Details

Species Reactivity

Human, Mouse, Rat

Applications

CyTOF-ready, Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2B Clone # 188331

Product Summary for Human/Mouse/Rat Jagged 1 Antibody

Immunogen

NS0-derived recombinant human Jagged 1
Ser32-Asp296
Accession # P78504

Specificity

Detects human, mouse, and rat Jagged 1. In direct ELISAs, no cross‑reactivity with recombinant human Jagged 2 is observed. Stains human Jagged 1 transfectants but not the parental cell line or human Jagged 2 transfectants in flow cytometry.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human/Mouse/Rat Jagged 1 Antibody

Detection of Jagged 1 antibody in bEnd.3 Mouse Cell Line antibody by Flow Cytometry.

Detection of Jagged 1 in bEnd.3 Mouse Cell Line by Flow Cytometry.

bEnd.3 mouse endo-thelioma cell line was stained with Mouse Anti-Human Jagged 1 Monoclonal Antibody (Catalog # MAB1277, filled histogram) or isotype control antibody (Catalog # MAB0041, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).

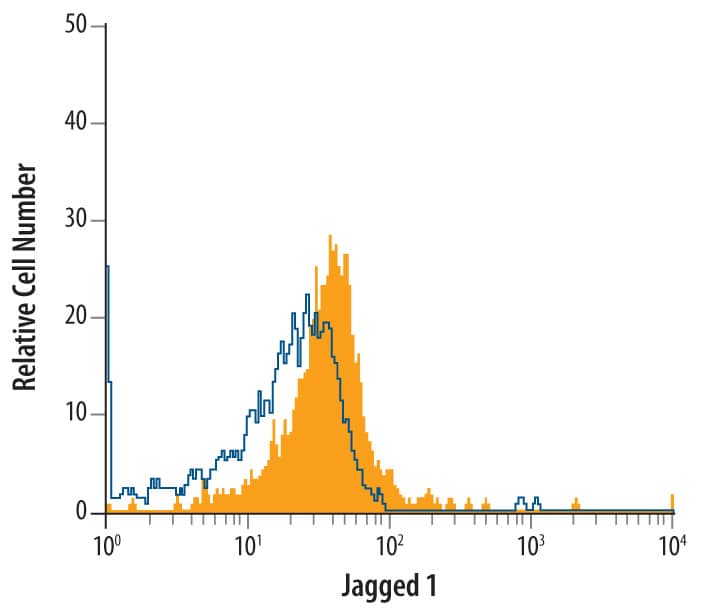

Detection of Jagged 1 antibody in Rat Cortical Stem Cells antibody by Flow Cytometry.

Detection of Jagged 1 in Rat Cortical Stem Cells by Flow Cytometry.

Rat cortical stem cells were stained with Mouse Anti-Human Jagged 1 Monoclonal Antibody (Catalog # MAB1277, filled histogram) or isotype control antibody (Catalog # MAB0041, open histo-gram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).

Applications for Human/Mouse/Rat Jagged 1 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: K562 human chronic myelogenous leukemia cell line, bEnd.3 mouse endothelioma cell line, and rat cortical stem cells
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 2 reviews rated 5 using MAB1277 in the following applications:

Published Applications

Read 6 publications using MAB1277 in the following applications:

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185‑229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. Mature human Jagged 1 shares 97% and 96% aa identity with mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1‑8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

References

  1. Sainson, R.C. and A.L. Harris (2008) Angiogenesis 11:41.
  2. Cordle, J. et al. (2008) Nat. Struct. Mol. Biol. 15:849.
  3. Artavamis-Tsokanas, S. et al. (1999) Science 284:770.
  4. Lai, E.C. (2004) Development 131:965.
  5. Milner, L.A. et al. (1994) Blood 83:2057.
  6. Nyfeler, Y. et al. (2005) EMBO J. 24:3504
  7. Linheng, L. et al. (1998) Immunity 8:43.
  8. Iso, T. et al. (2003) Arterioscler. Thromb. Vasc. Biol. 23:543.
  9. Oda, T. et al. (1997) Nat. Genet. 16:235.
  10. Oda, T. et al. (1997) Genomics 43:376.

Alternate Names

CD339, JAG1

Entrez Gene IDs

182 (Human); 16449 (Mouse); 29146 (Rat)

Gene Symbol

JAG1

UniProt
