Human CD31/PECAM‑1 Antibody

Catalog # BBA7 | R&D Systems, Inc. a Bio-Techne Brand
Catalog #
Availability
Size / Price
Qty
Loading...
BBA7

Key Product Details

Species Reactivity

Human

Applications

Immunocytochemistry, Immunohistochemistry, Immunoprecipitation, Knockout Validated, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 9G11

Product Summary for Human CD31/PECAM‑1 Antibody

Immunogen

Activated HUVEC human umbilical vein endothelial cells

Specificity

Detects human CD31/PEACAM-1. In Western blots, no cross-reactivity with recombinant human (rh) E-Selectin, rhICAM-1, -2, -3, rhVCAM‑1, or recombinant mouse VCAM‑1 was observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human CD31/PECAM‑1 Antibody

Detection of Human CD31/PECAM-1 antibody by Western Blot.

Detection of Human CD31/PECAM‑1 by Western Blot.

Western blot shows lysates of HUVEC human umbilical vein endothelial cells. PVDF membrane was probed with 1 µg/mL of Mouse Anti-Human CD31/PECAM-1 Monoclonal Antibody (Catalog # BBA7) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (HAF018). A specific band was detected for CD31/PECAM-1 at approximately 130 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
CD31/PECAM‑1 antibody in HUVEC Human Cells by Immunocytochemistry (ICC).

CD31/PECAM‑1 in HUVEC Human Cells.

CD31/PECAM-1 was detected in immersion fixed HUVEC human umbilical vein endothelial cells using 10 µg/mL Mouse Anti-Human CD31/PECAM-1 Monoclonal Antibody (Catalog # BBA7) for 3 hours at room temperature. Cells were stained with the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; NL007) and counterstained with DAPI (blue). View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

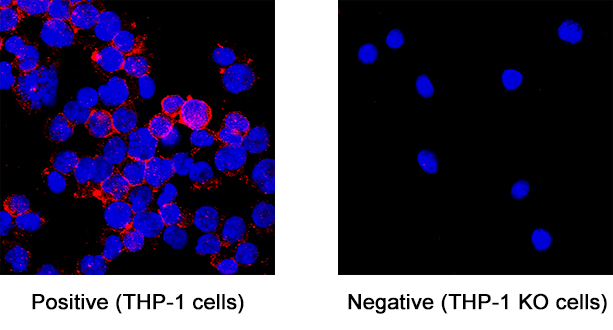

CD31/PECAM‑1 Specificity is Shown by Immunocytochemistry in Knockout Cell Line.

CD31/PECAM‑1 was detected in immersion fixed THP‑1 human acute monocytic leukemia cell line but is not detected in CD31/PECAM‑1 knockout (KO) THP‑1 human cell line using Mouse Anti-Human CD31/PECAM‑1 Monoclonal Antibody (Catalog # BBA7) at 8 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; NL007) and counterstained with DAPI (blue). Specific staining was localized to cell membrane. Staining was performed using our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Applications for Human CD31/PECAM‑1 Antibody

Application
Recommended Usage

Immunocytochemistry

8-25 µg/mL
Sample: Immersion fixed HUVEC human umbilical vein endothelial cells

Immunohistochemistry

5-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of Artery in Human Liver

Immunoprecipitation

Lampugnani, M.G. et al. (1992) J. Cell Biol. 118:1511.

Knockout Validated

CD31/PECAM‑1 was detected in immersion fixed THP‑1 human acute monocytic leukemia cell line but is not detected in CD31/PECAM‑1 knockout (KO) THP‑1 human cell line.

Western Blot

1 µg/mL
Sample: HUVEC human umbilical vein endothelial cells
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 7 reviews rated 4.1 using BBA7 in the following applications:

Formulation, Preparation and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Sterile PBS to a final concentration of 0.5 mg/mL.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CD31/PECAM-1

The CD31 adhesion molecule, also known as PECAM-1, is expressed in large amounts on endothelial cells at intercellular junctions and on T cell subsets, and to a lesser extent on platelets and most other leukocytes such as monocytes and neutrophils. CD31 binds to itself homotypically, and also to the leukocyte integrin alphav beta3 heterotypically. CD31 is required for the transendothelial migration of leukocytes through intercellular junctions of vascular endothelial cells. CD31 has been found in human plasma, and the presence of this circulating isoform is suggested to modulate the transendothelial migration of leukocytes.

Long Name

Platelet Endothelial Cell Adhesion Molecule 1

Alternate Names

CD31, EndoCAM, PECA1, PECAM-1, PECAM1

Entrez Gene IDs

5175 (Human); 18613 (Mouse); 29583 (Rat)

Gene Symbol

PECAM1

Product Documents for Human CD31/PECAM‑1 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human CD31/PECAM‑1 Antibody

For research use only

Citations for Human CD31/PECAM‑1 Antibody (36)

Showing  1 - 10 of 36 citations Showing All
Filter By:
Search Title:

Citations are publications that use Bio-Techne products. Selected citations for Human CD31/PECAM‑1 Antibody include:

There are no citations that match your criteria.

Showing  1 - 10 of 36 citations Showing All

Customer Reviews for Human CD31/PECAM‑1 Antibody (7)

4.1 out of 5
7 customer ratings
5 stars
29%
4 stars
57%
3 stars
14%
2 stars
0%
1 star
0%

Customer Images


Showing  1 - 5 of 7 reviews Showing All
Filter By:
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Western Blot
    Sample Tested: HUVEC human umbilical vein endothelial cells
    Species: Human
    Verified Customer | Posted 03/09/2022
    Human CD31/PECAM‑1 Antibody BBA7
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Microarrays
    Sample Tested: EDTA Plasma
    Species: Human
    Verified Customer | Posted 01/14/2021
    Human CD31/PECAM‑1 Antibody BBA7
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Microarrays
    Sample Tested: EDTA Plasma
    Species: Human
    Verified Customer | Posted 11/14/2018
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Microarray
    Sample Tested: EDTA Plasma
    Species: Human
    Verified Customer | Posted 11/02/2018
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Immunocytochemistry/Immunofluorescence
    Sample Tested: HUVEC human umbilical vein endothelial cells
    Species: Human
    Verified Customer | Posted 02/28/2017
    Antibody was reconstituted at 0.5mg/ml and used at 1:50 dilution overnight in 4ºC.
    Human CD31/PECAM‑1 Antibody BBA7
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Immunohistochemistry
    Sample Tested: artery
    Species: Human
    Verified Customer | Posted 08/29/2016
    Frozen human artery. Permeabilized with 80% acetone. Primary antibody at 1:100 incubate at 4oC overnight Secondary antibody: CY3 donkey anti-mouse secondary antibody. 1 hour at room temperature.
    Human CD31/PECAM‑1 Antibody BBA7
  • Human CD31/PECAM-1 Antibody
    Name: Anonymous
    Application: Immunohistochemistry
    Sample Tested: Muscle tissue
    Species: Human
    Verified Customer | Posted 08/29/2016
    Antigen retrieval: 10mM Citrate pH6. Primary antibody at 1:100 incubate at 4oC overnight Secondary antibody: Alexa 647 donkey anti-mouse secondary antibody. 1 hour at room temperature.
    Human CD31/PECAM‑1 Antibody BBA7

There are no reviews that match your criteria.

Showing  1 - 5 of 7 reviews Showing All

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

÷
=
