Simple Plex Human TNF-alpha 2nd Gen Cartridge Best Seller
ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-002803
Need a different panel or sample type? Customize your cartridge here.
Key Product Details
Assay Length
Sample Type & Volume Required Per Well*
Sensitivity
Assay Range
Simple Plex Human TNF-alpha 2nd Gen Cartridge Summary
*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.
Compatible Instruments
Ella Automated Immunoassay System
Product Specifications
Assay Type
Format
Reactivity
Specificity
Cross-reactivity
Interference
Precision
Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.
Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.
Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum
| Intra-Assay Precision | Inter-Assay Precision | |||
|---|---|---|---|---|
| Sample | 1 | 2 | 1 | 2 |
| n | 16 | 16 | 36 | 35 |
| Mean (pg/mL) | 6.99 | 383 | 0.662 | 36.9 |
| Standard Deviation | 0.345 | 20.6 | 7.81 | 408 |
| CV% | 4.9 | 5.4 | 8.5 | 9.0 |
Recovery for Simple Plex Human TNF-alpha 2nd Gen Cartridge
Recovery at three different spiked concentrations within the range of the assay was evaluated.
| Sample Type | Average % Recovery | Range % |
|---|---|---|
| Cerebrospinal Fluid (n=6) | 109 | 103-115 |
| EDTA Plasma (n=4) | 97 | 89-105 |
| Heparin Plasma (n=4) | 89 | 77-96 |
| Serum (n=4) | 99 | 92-108 |
Linearity
<div style="box-sizing: border-box;">Samples containing and/or spiked with high concentrations of human IL-6 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.</div>
Scientific Data Images for Simple Plex Human TNF-alpha 2nd Gen Cartridge

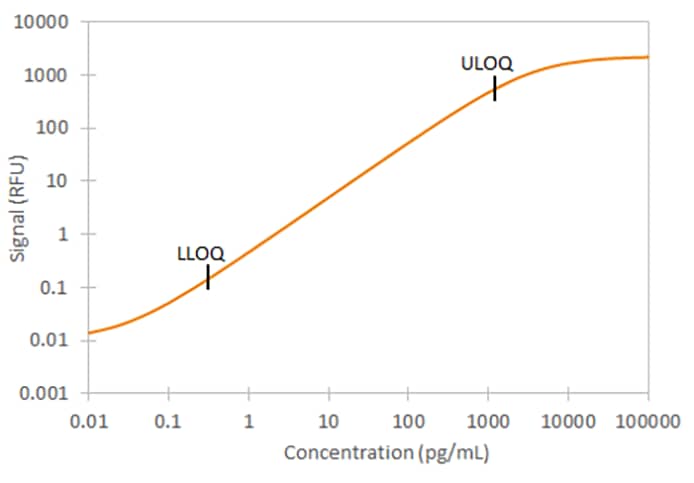

Human TNF-alpha Assay Standard Curve
Preparation and Storage
Shipping
Stability & Storage
Background: TNF-alpha
TNF-alpha (Tumor necrosis factor alpha) plays a central role in inflammation, immune system development, apoptosis, and lipid metabolism. TNF-alpha was first identified as a cytotoxic factor produced by macrophages capable of killing mouse tumor cells. It is the prototypic ligand and along with Lymphotoxin-alpha, were identified as the first members of the TNF superfamily. Active TNF-alpha and other members of the TNF superfamily exist as a homotrimer with high structural homology. Receptor binding occurs at the interface of two TNF-alpha monomers. And receptor activation occurs when all three monomer interfaces are engaged with a receptor. For TNF-alpha, receptor binding and activation occurs through TNF R1 or TNF RII, and subsequently leads to activation of NF-kB or MAPK signaling pathways. Another pathway that TNF-alpha can activate utilizes the death domain of TNF RI to induce apoptosis. TNF-alpha promotes the inflammatory response largely through NF-kB signaling, and inhibition of TNF-alpha has proven successful in treating many autoimmune disorders. TNF-alpha is also present on the cell surface as membrane-bound TNF-alpha can induce the lysis of neighboring tumor cells and virus infected cells. TNF-alpha protein is translated as a type II transmembrane protein containing an N-terminal transmembrane domain. The soluble cytokine is released from its cell-anchoring TM domain by proteolytic processing by metalloproteases.
Long Name
Alternate Names
Entrez Gene IDs
Gene Symbol
Additional TNF-alpha Products
Product Documents for Simple Plex Human TNF-alpha 2nd Gen Cartridge
Product Specific Notices for Simple Plex Human TNF-alpha 2nd Gen Cartridge
For research use only
