Mouse 4-1BB Ligand/TNFSF9 Antibody

Name: Mouse 4-1BB Ligand/TNFSF9 Antibody
Brand: R&D Systems
SKU: AF1246

R&D Systems, Inc. a Bio-Techne Brand

Catalog # AF1246

Citations (5)

Product Datasheet / COA / SDS

Catalog #

Availability

Size / Price

Qty

Setting the standard in quality research reagents

Key Product Details

Species Reactivity:	Mouse
Immunogen:	S. frugiperda insect ovarian cell line Sf 21-derived recombinant mouse 4‑1BB Ligand/TNFSF9 Arg104-Glu309 Accession # P41274
Applications:	Western Blot
Label:	Unconjugated
Source:	Polyclonal Goat IgG
Specificity:	Detects mouse 4‑1BB Ligand/TNFSF9 in direct ELISAs and Western blots. In Western blots, approximatley 5% cross‑reactivity with recombinant mouse (rm) Fas Ligand is observed and less than 1% cross-reactivity with rmOX40 Ligand, rmTWEAK, rmTRAIL, and rmTNF-alpha is observed.

View Full Technical Details for Mouse 4-1BB Ligand/TNFSF9 Antibody

Applications for Mouse 4-1BB Ligand/TNFSF9 Antibody

	Recommended Concentration	Sample
Western Blot	0.1 µg/mL	Recombinant Mouse 4‑1BB Ligand/TNFSF9 (Catalog # 1246-4L)

Please Note: Optimal dilutions should be determined by each laboratory for each application.

Formulation, Preparation and Storage

Purification	Antigen Affinity-purified
Endotoxin level	<0.10 EU per 1 μg of the antibody by the LAL method.
Reconstitution	Reconstitute at 0.2 mg/mL in sterile PBS. Reconstitution Buffer Available: Size / Price Qty Loading... RB01:
Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: 4-1BB Ligand/TNFSF9

4-1BB ligand (4-1BBL) is a type II transmembrane glycoprotein belonging to the TNF superfamily (TNFSF) and has been designated TNFSF9. Mouse 4-1BBL cDNA encodes a 309 amino acid residues (aa) protein with an 82 aa N-terminal cytoplasmic domain, a 21 aa transmembrane domain and a 206 aa C-terminal extracellular domain. The extracellular domain of 4-1BBL has a tertiary structure similar to that of other TNFSF members, but shares only low aa sequence homology (14‑16%). Murine 4-1BBL shares 36% aa sequence identity with its human counterpart (1, 2). 4-1BBL is predominantly expressed on activated antigen presenting cells (APCs) such as B cells, macrophages and dendritic cells (DCs). It is also expressed on most T and B lymphoma cell lines (3). A soluble 4-1BBL is released from the cell surface following cellular activation via proteolytic cleavage by one or more sheddases (4). By analogy to other TNFSF ligands, both the soluble and transmembrane 4-1BBL are expected to exist as non-covalent homotrimers. 4-1BBL binds 4-1BB, a TNF receptor superfamily member, TNFRSF9, which is also known as CD137 and ILA (induced by lymphocyte activation). 4-1BB is expressed on activated CD4⁺ and CD8⁺ T cells, thymocytes, and NK cells. It is also expressed on monocytes, neutrophils, DCs and eosinophils. In response to 4-1BBL binding, 4-1BB transduces a T cell costimulatory signal in both CD4⁺ and CD8⁺ T cells to promote survival and enhance proliferation, cytokine production and effector function. In dendritic cells, 4-1BB is a DC-activating molecule that enhances cytokine production and up‑regulates expression of B7-1 and B7-2 costimulatory molecules (3).

Item	Value
References	Goodwin, R.G. et al. (1993) Eur. J. Immunol. 23:2631. Alderson, M.R. et al. (1994) Eur. J. Immunol. 24:2219. Kwon, B., H.W. Lee and B.S Kwon (2002) TRENDS in Immunology 23:378. Salih, H.R. et al. (2001) J. Immunol. 167:4059.
Entrez Gene IDs	8744 (Human); 21950 (Mouse); 353218 (Rat); 102129676 (Cynomolgus Monkey)
Alternate Names	4-1BB Ligand, 4-1BB-L, 4-1BBL, 41BB Ligand, CD137L, TNFSF9, homolog of mouse 4-1BB-L, receptor 4-1BB ligand, tumor necrosis factor (ligand) superfamily, member 9, tumor necrosis factor ligand superfamily member 9

Citations for Mouse 4-1BB Ligand/TNFSF9 Antibody (5)

Showing 1 - 5 of 5 citations Showing All

Filter By:

Search Title:

Citations are publications that use Bio-Techne products. Selected citations for Mouse 4-1BB Ligand/TNFSF9 Antibody include:

Species: Mouse
Sample Types: Cell Lysates
Applications: Western Blot

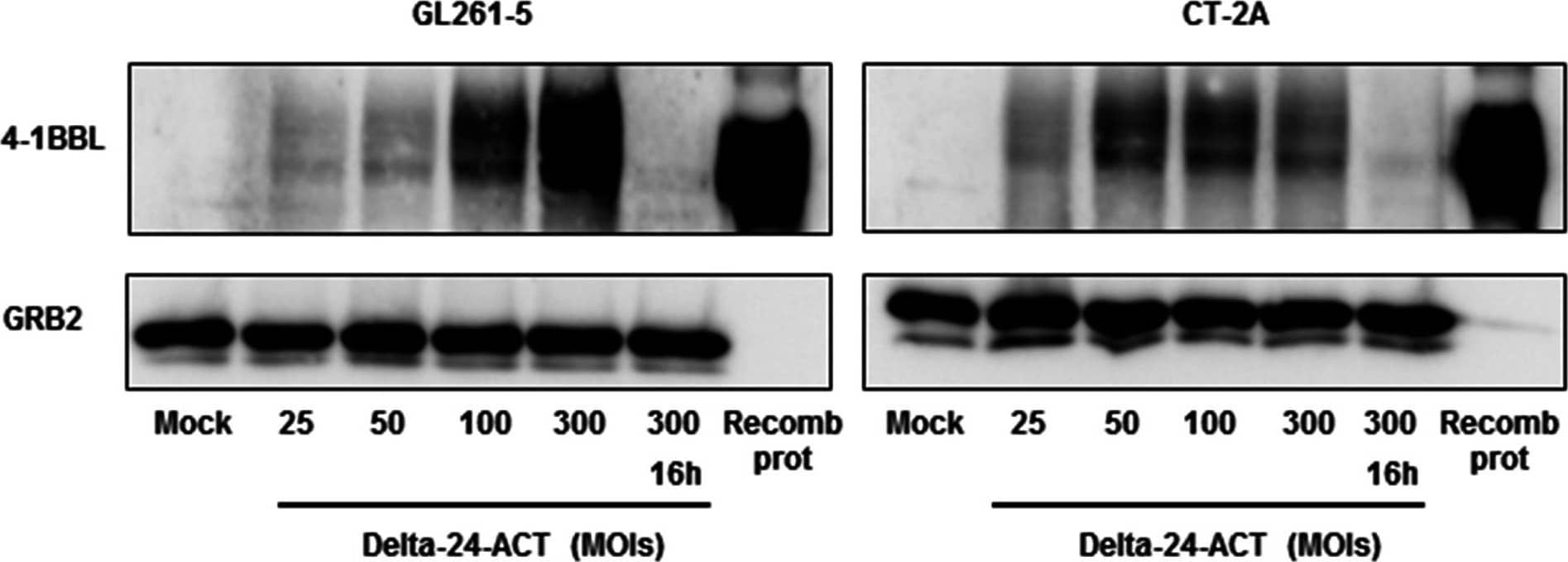

V Laspidea et al. (2022), Exploiting 4-1BB immune checkpoint to enhance the efficacy of oncolytic virotherapy for diffuse intrinsic pontine gliomas JCI Insight, 7(7).
PMID: 35393952
Species: Mouse
Sample Types: Whole Cells
Applications: ICC

Eun S et al. (2015), 4-1BB ligand signaling to T cells limits T cell activation. J Immunol, 194(1):134-41.
PMID: 25404362
Species: Human
Sample Types: Cell Lysates
Applications: Western Blot

Kanagavelu et al. (2014), HIV-1 adenoviral vector vaccines expressing multi-trimeric BAFF and 4-1BBL enhance T cell mediated anti-viral immunity. PLoS ONE, 9(2):e90100.
PMID: 24587225
Species: Mouse
Sample Types: Cell Lysates
Applications: Western Blot

Huang JH et al. (2010), Therapeutic and tumor-specific immunity induced by combination of dendritic cells and oncolytic adenovirus expressing IL-12 and 4-1BBL. Mol. Ther., 18(2):264-74.
PMID: 19738604
Species: Mouse
Sample Types: Cell Lysates
Applications: Western Blot

Kang YJ et al. (2007), Cell surface 4-1BBL mediates sequential signaling pathways 'downstream' of TLR and is required for sustained TNF production in macrophages. Nat. Immunol., 8(6):601-9.
PMID: 17496895

There are no citations that match your criteria.

Showing 1 - 5 of 5 citations Showing All

Product Documents for Mouse 4-1BB Ligand/TNFSF9 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS
