Simple Plex Human IGFBP-1 Cartridge

Name: Simple Plex Human IGFBP-1 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000327

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000327

Simple Plex Human IGFBP-1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Urine (10 uL)
Sensitivity:	0.956 pg/mL
Assay Range:	2.63 - 4,020 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine)
Simple Plex Human IGFBP-1 Cartridge Summary:	Simple Plex assay for the detection of human Free Insulin-like Growth Factor Binding Protein 1 (Free IGFBP-1) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin) and urine.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human IGFBP-1 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human IGFBP-1 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human IGFBP-1.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	18	18
Mean (pg/mL)	25.3	1271	27.1	1223
Standard Deviation	1.4	93.9	3.23	65.3
CV%	5.4	7.4	11.9	5.3

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Supernates (n=5)	98	90-111

Linearity

Samples containing and/or spiked with high concentrations of human IGFBP-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human IGFBP-1 Cartridge

	Human Free IGFBP-1 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IGFBP-1

The superfamily of insulin-like growth factor (IGF) binding proteins include the six high-affinity IGF binding proteins (IGFBP) and at least four additional low-affinity binding proteins referred to as IGFBP related proteins (IGFBP-rP). All IGFBP superfamily members are cysteine-rich proteins with conserved cysteine residues, which are clustered in the amino- and carboxy-terminal thirds of the molecule. IGFBPs modulate the biological activities of IGF proteins. Some IGFBPs may also have intrinsic bioactivity that is independent of their ability to bind IGF proteins. Post-translational modifications of IGFBP, including glycosylation, phosphorylation and proteolysis, have been shown to modify the affinities of the binding proteins to IGF. ALS (Acid Labile Subunit) is a liver-derived protein that exists in a ternary complex with Insulin-like Growth Factor (IGF)-binding Protein-3 (IGFBP-3) or IGFBP-5, and either IGF-I or IGF-II. ALS increases the half-life of IGF/IGFBP complexes in circulation.

Item	Value
Long Name	Insulin-like Growth Factor Binding Protein 1
Entrez Gene IDs	3484 (Human); 16006 (Mouse)
Alternate Names	IBP-1, IBP1, IGF-BP25, IGF-binding protein 1, IGFBP-1, IGFBP1, PP12AFBP, Placental protein 12, alpha-pregnancy-associated endometrial globulin, amniotic fluid binding protein, binding protein-25, binding protein-26, binding protein-28, growth hormone independent-binding protein, hIGFBP-1, insulin-like growth factor binding protein 1, insulin-like growth factor-binding protein 1

Compatible Instruments

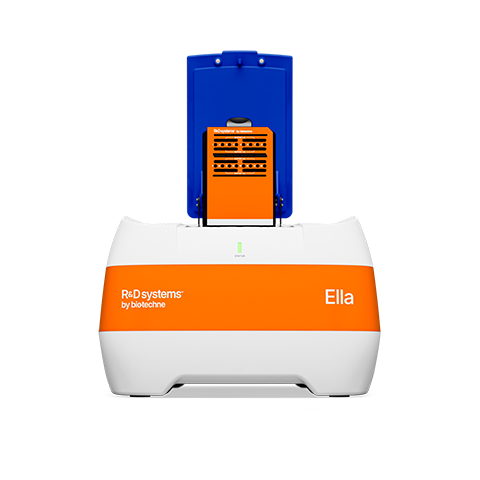

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human IGFBP-1 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
