Simple Plex Human CXCL5/ENA-78 Cartridge

Name: Simple Plex Human CXCL5/ENA-78 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000334

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000334

Simple Plex Human CXCL5/ENA-78 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (25 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.613 pg/mL
Assay Range:	0.44 - 4,160 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Human CXCL5/ENA-78 Cartridge Summary:	Simple Plex assay for the detection of human ENA-78 in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human CXCL5/ENA-78 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human CXCL5/ENA-78 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human ENA-78.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	10	10
Mean (pg/mL)	32.6	1511	31.2	1446
Standard Deviation	2.14	117	1.33	73.3
CV%	6.5	7.8	4.3	5.1

Linearity

Samples containing and/or spiked with high concentrations of human ENA-78 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human CXCL5/ENA-78 Cartridge

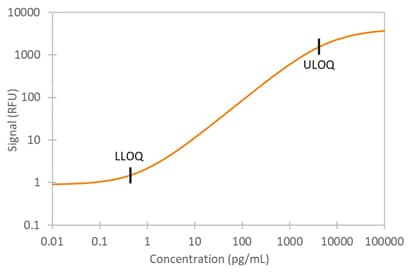

	Human ENA-78 Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CXCL5/ENA-78

CXCL5/Epithelial Cell-derived Neutrophil-activating Peptide (ENA-78), is a member of the CXC subfamily of chemokines. Full-length CXCL5/ENA-78 is 114 amino acids (aa) in length with a predicted molecular weight of 12 kDa. Following the removal of the signal peptide, bioactive CXCL5/ENA-78 is 78 aa in length. CXCL5/ENA-78 can be N-terminally cleaved by Cathepsin G and Chymotrypsin to CXCL5/ENA-74 (74 aa) and CXCL5/ENA-70 (70 aa), which show increased potency relative to CXCL5/ENA-78. While murine LIX was thought to be an ortholog to human CXCL5/ENA-78, genome-wide analysis and a consensus in the field suggests that human CXCL5/ENA-78 does not have a true murine ortholog. CXCL5/ENA-78 is upregulated at sites of inflammation and is expressed by multiple hematopoietic cell types, fibroblasts, endothelial cells, vascular smooth muscle cells, and adipocytes. It acts as a chemoattractant for neutrophils, has angiogenic properties, and contributes to cancer progression.

Item	Value
Entrez Gene IDs	6374 (Human)
Alternate Names	C-X-C motif chemokine 5, CXCL5, CXCL5/ENA-78, ENA-78, ENA-78(1-78), ENA78, Epithelial-derived neutrophil-activating protein 78, Neutrophil-activating peptide ENA-78, SCYB5ENA78, chemokine (C-C motif) ligand 5, neutrophil-activating protein 78

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human CXCL5/ENA-78 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
