Luminex 100/200 ReagentsThe Luminex 100 and Luminex 200 instruments require sheath fluid to serve as the delivery medium to transport the beads to instrument optics. Both instruments have the option of a 20L disposable external sheath fluid container or a compact 20X sheath fluid concentrate pack; which can be reconstituted, with water, to a working volume of 20L when needed. The Luminex 100/200 instruments, operating on xPONENT software, are calibrated using a calibration and a verification kit, each providing 25 uses. |
Download and view LX200 instrument and software quick guide for routine setup instructions. For detailed instructions refer to the instrument user manual or the Luminex Xponent software user manual.

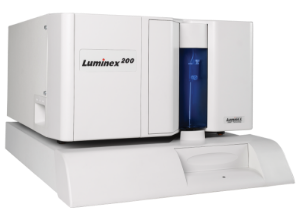

| Description | Luminex 200 System with xPONENT 4.3 |
| Core Instrument | Luminex 200 flow-based bead reader with: Sheath Delivery System; X-Y Platform for 96-well plates; Sample probe-needle; 1L sheath bottle, 1.2L Waste bottle; Sample probe height adjustment kit; Automated Maintenance Plate; Heater Block (96 well plate); Documentation |
| Available Power Cords (pick one nation) | USA, Australia, Brazil, Denmark, Germany, Sweden, France, Belgium, Spain, Switzerland, Israel, UK, Italy, Japan, India, China, S. Africa, Argentina, Korea, Taiwan |
| Bar-code scanner | Optional, at no charge with purchase of new system |
| Included Software | xPONENT 4.3 (3 seats) Allele-call module (3 seats) Remote Web Monitoring module (3 seats) |
| Optional Software (extra charges apply) | LIS integration module Automation interface module Basic Security Module 21 CFR Part 11 Module (supersedes Basic Security) Additional seats |
| Reagents Included | LX2R-CAL-K25, qty 1 (separately shipped) LX2R-PVER-K25, qty 1 (separately shipped) xMAP Sheath Fluid (20L), qty 1 (ships with LX200) |
| Desktop PC with Win 7 32-bit, US English & xPONENT 4.3 | Dell Optiplex with 2 Port PCI RS232 Serial Adapter Card Dell Warranty Transfer Dell 17” LCD monitor Dell Keyboard & mouse |
