Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric) New

Name: Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric)
Brand: Novus Biologicals
SKU: NBP3-57067

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-57067

Submit a review

Product Datasheet / COA

100% Guarantee

Product Specifications
Precision
Scientific Data
Kit Contents
Preparation & Storage
Background
Product Documents
Specific Notices

Key Product Details

Sample Type & Volume Required Per Well

Tissue homogenates, cell lysates and other biological fluids (100 uL)

Sensitivity

0.108 ng/mL (example only; lot dependent)

Assay Range

0.312 - 20 ng/mL (example only; lot dependent)

View all EGLN1/PHD2 ELISA Kits »

Product Specifications

Assay Type

Sandwich ELISA

Kit Type

ELISA Kit (Colorimetric)

Reactivity

Mouse

Description

The Ready-To-Use ELISA kit offers pre-diluted detection reagents and a shorter experimental time.
Assay Length: 3 hours

Precision

Intra-Assay Precision (Precision within an assay) %CV < 10 (example only; lot dependent)

Inter-Assay Precision (Precision between assays) %CV < 12 (example only; lot dependent)

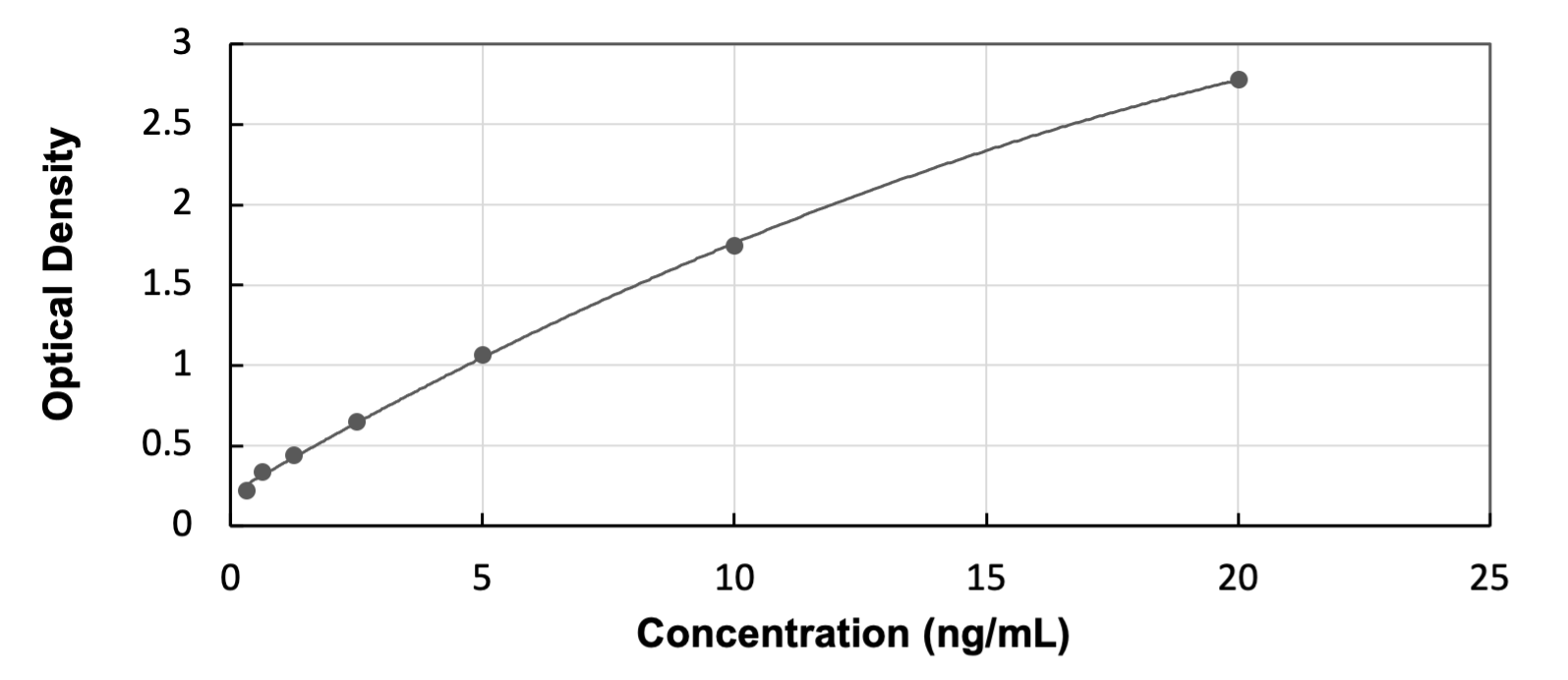

Scientific Data Images for Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric)

ELISA: Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric) [NBP3-57067]

Kit Contents for Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric)

Pre-coated 96T strip plate, Plate sealer for 96 wells, Standard, Standard Diluent, Detection Solution A, Detection Solution B, TMB Substrate, Stop Solution, Wash Buffer (30 x concentrate), Instruction manual

Preparation and Storage

Stability & Storage

Storage of components varies. See protocol for specific instructions.

Background: EGLN1/PHD2

PHD2 (Prolyl Hydroxylase Domain-containing protein 2) belongs to the Prolyl-4-hydroxylase domain (PHD) family of proteins and is encoded by the Egl-9 Family Hypoxia Inducible Factor 1 (EGLN1) gene (1). Human EGLN1/PHD2 is a ubiquitously expressed enzyme that is 426 amino acids (aa) long with a theoretical molecular weight of ~46 kDa. Structurally PHD2 contains a nuclear export signal (NES, aa 6-20), an N-terminal MYND zinc finger domain (aa 21-58), and a C-terminal catalytic domain (aa 291-392) (2, 3). Functionally, PHD2 serves as an oxygen sensor and is responsible for post-translational modification of Hypoxia-inducible factor alpha (HIF-1alpha), a component of a transcriptional complex involved in oxygen homeostasis (1-3). During normoxia, PHD2 is responsible for oxygen-dependent hydroxylation of HIF-1alpha proline residue 402, 564, or both (3). The hydroxylation event promotes the binding of von Hippel-Lindau protein (VHL) and targets HIF1-alpha for ubiquitination and degradation (4, 5).

EGLN1/PHD2 has been implicated in several critical processes including erythropoiesis, angiogenesis, and metabolism as well as various pathologies such as cancer (2, 5, 6). Studies in mice have found that somatic deletion of PHD2 resulted in higher vascular endothelial growth factor A (VEGF-A) levels, increased blood vessel formation, and more erythropoietin (EPO), leading to severe polycythemia or erythrocytosis (high red blood cell (RBC) volume) (6). Another study revealed that specific point mutations in EGLN1/PHD2 led to elevated EPO and RBC mass associated with hemorrhages and strokes (6). Accordingly, given the known role of PHD2 in inhibition of EPO production, PHD2 inhibitors are being studied as a potential therapeutic for anemia (6). Additionally, dysregulation in EGLN1, and specifically the PHD2-VHL-HIF-1alpha pathway, has been associated with the development of pheochromocytomas (PCC) and sympathetic paragangliomas (PGL), which are rare neuroendocrine tumors (2). Besides pathological features, EGLN1/PHD2 may also be important for high altitude adaptation as two coding sequence variants in PHD2 are prevalent in the Tibetan population but is very rare in people at lower altitudes (2).

Alternate names for EGLN1/PHD2 include HIF Prolyl Hydroxylase 2, PH2, Prolyl hydroxylase domain containing protein 2, HIF2PH2, HIF-Prolyl hydroxylase 2, egl nine homolog 1, and C1orf12.

References

1. Amorim-Pires, D., Peixoto, J., & Lima, J. (2016). Hypoxia Pathway Mutations in Pheochromocytomas and Paragangliomas. Cytogenetic and genome research. https://doi.org/10.1159/000457479

2. Gardie, B., Percy, M. J., Hoogewijs, D., Chowdhury, R., Bento, C., Arsenault, P. R., Richard, S., Almeida, H., Ewing, J., Lambert, F., McMullin, M. F., Schofield, C. J., & Lee, F. S. (2014). The role of PHD2 mutations in the pathogenesis of erythrocytosis. Hypoxia (Auckland, N.Z.). https://doi.org/10.2147/HP.S54455

3. Minervini, G., Quaglia, F., & Tosatto, S. C. (2015). Insights into the proline hydroxylase (PHD) family, molecular evolution and its impact on human health. Biochimie. https://doi.org/10.1016/j.biochi.2015.07.009

4. Semenza G. L. (2007). Hypoxia-inducible factor 1 (HIF-1) pathway. Science's STKE : signal transduction knowledge environment. https://doi.org/10.1126/stke.4072007cm8

5. Chan, D. A., & Giaccia, A. J. (2010). PHD2 in tumour angiogenesis. British journal of cancer. https://doi.org/10.1038/sj.bjc.6605682

6. Meneses, A. M., & Wielockx, B. (2016). PHD2: from hypoxia regulation to disease progression. Hypoxia (Auckland, N.Z.). https://doi.org/10.2147/HP.S53576

Long Name

Egl Nine Homolog 1/Prolyl Hydroxylase Domain-containing Protein 2

Alternate Names

C1orf12, HIFPH2, HPH2, PHD2, SM20, ZMYND6

Gene Symbol

EGLN1

Additional EGLN1/PHD2 Products

Product Documents for Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric)

Product Datasheets

Download Product Datasheets

COA

Product Specific Notices for Mouse EGLN1/PHD2 - Ready-To-Use ELISA Kit (Colorimetric)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. ELISA Kits are guaranteed for 6 months from date of receipt.
