Key Product Details

Species Reactivity

Mouse

Applications

Western Blot, Immunocytochemistry

Label

CoraFluor 1

Antibody Source

Monoclonal Rat IgG2A Clone # 742002

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse VISTA/B7-H5/PD-1H
Phe33-Ala191
Accession # Q9D659

Specificity

Detects mouse VISTA/B7-H5/PD-1H in direct ELISAs and Western blots. In direct ELISAs, less than 10% cross-reactivity with recombinant human VISTA/B7-H5/PD-1H is observed.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Description

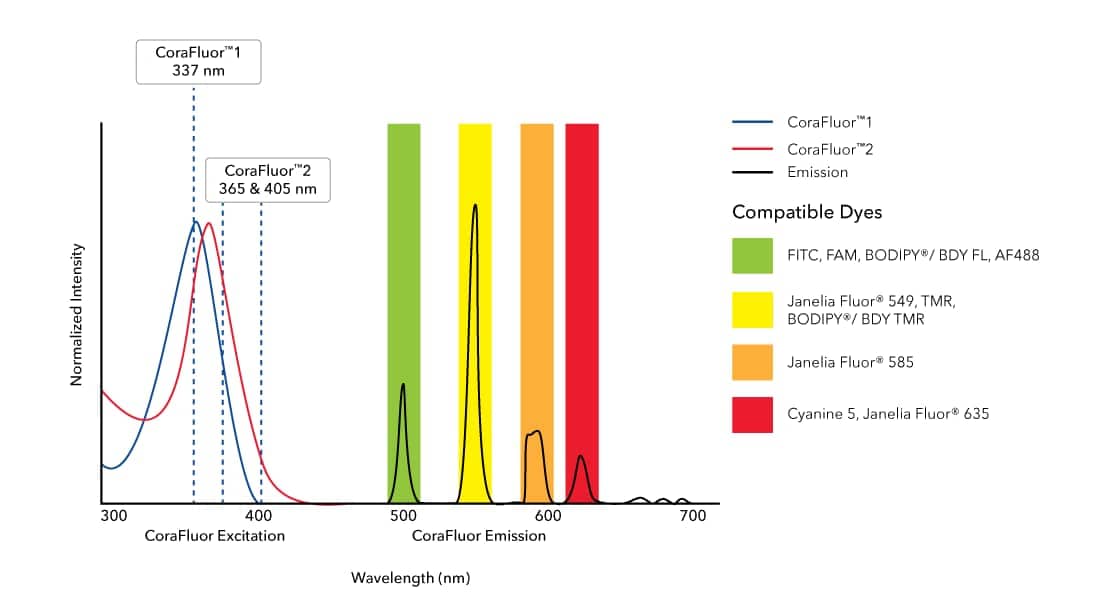

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(TM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

CoraFluor(TM) 1, amine reactive

CoraFluor(TM) 1, thiol reactive

For more information, please see our CoraFluor(TM) TR-FRET technology flyer.

Applications for VISTA/B7-H5/PD-1H Antibody (742002) [CoraFluor™ 1]

Application
Recommended Usage

Immunocytochemistry

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: VISTA/B7-H5/PD-1H

VISTA (V-domain immunoglobulin suppressor of T cell activation) is a cell surface coinhibitory protein belonging to the CD28/B7 family. VISTA can act as both a ligand and a receptor in regulating T cell activity. VISTA is expressed on dendritic cells, monocytes, and both CD4+ and CD8+ T cells. VISTA functions as an inhibitory receptor downregulating CD4+ and CD8+ T cell proliferation and exhibiting a protective effect in mice from graft versus host disease, asthma, and acute hepatitis. VISTA also acts as a ligand on antigen presenting cells. Two cell surface expressed proteins VSIG-3 and PSGL-1 have been identified as binding partners of VISTA. Immune checkpoint proteins like the VISTA protein are often overexpressed by cancer cells or surrounding cells in the tumor microenvironment. VISTA upregulation occurs on tumor-infiltrating leukocytes and is expressed on several cancer types including melanoma, lung, ovarian, colon, prostate, and pancreatic cancer. Further, knockout and blocking antibody studies of VISTA have shown an increase in T cell responses in several mouse tumor models making VISTA a potential therapeutic target alone or in combination with other known immune checkpoint inhibitors. Alternative names of VISTA include PD-1H, Gi24, Dies1, and SISP1.

Alternate Names

4632428N05Rik, B7-H5, C10orf54, Dies1, Gi24, PD-1H, PD1H, SISP1, VSIR

Gene Symbol

VSIR

Additional VISTA/B7-H5/PD-1H Products

Product Documents for VISTA/B7-H5/PD-1H Antibody (742002) [CoraFluor™ 1]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for VISTA/B7-H5/PD-1H Antibody (742002) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
