Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry, CyTOF-ready

Label

CoraFluor 1

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # 2097C

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

View all NKG2A/CD159a Antibodies »

Product Specifications

Immunogen

Synthtic peptide containing mouse NKG2A/CD159a
Accession # Q9Z202

Specificity

Detects mouse NKG2A/CD159a in direct ELISAs. In Flow Cytometry, no cross-reactivity with mouse NKG2C/CD159c is observed.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Description

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(TM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

CoraFluor(TM) 1, amine reactive

CoraFluor(TM) 1, thiol reactive

For more information, please see our CoraFluor(TM) TR-FRET technology flyer.

Scientific Data Images for NKG2A/CD159a/KLRC1 Antibody (2097C) [CoraFluor™ 1]

NKG2A/CD159a/KLRC1 Antibody (2097C) [CoraFluor™ 1]

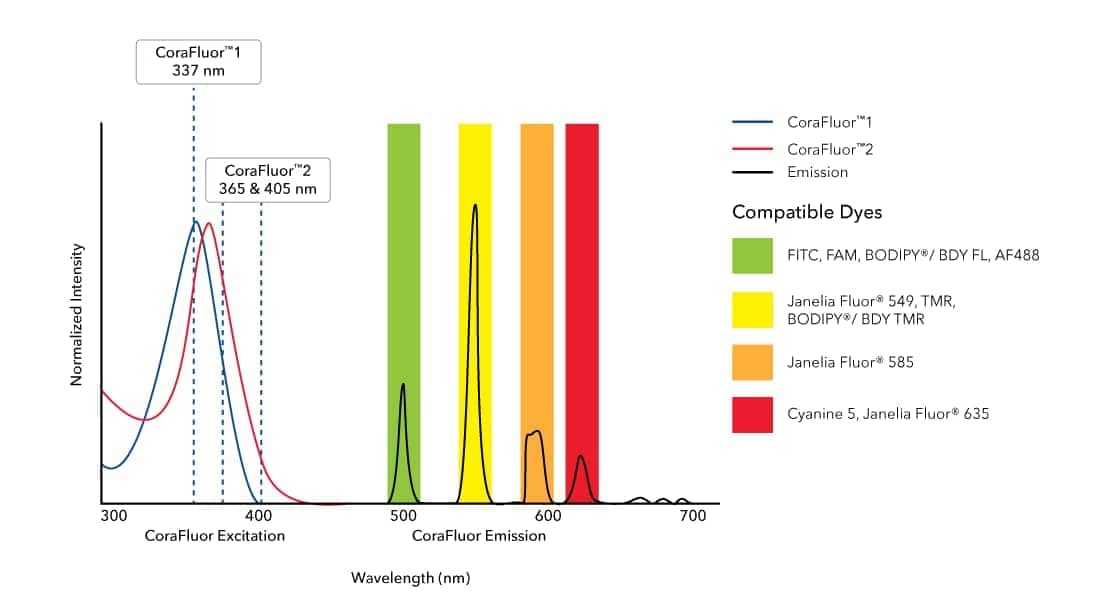

Product Feature: CoraFluor Probes for TR-FRET

CoraFluor™ 1, amine reactive (Catalog:7920) and CoraFluor™ 2, amine reactive (Catalog # 7950) are terbium-based probes that have been developed for use as TR-FRET donors. They emit wavelengths compatible with commonly used fluorescent acceptor dyes such as BODIPY® (or BDY) and Janelia Fluor® dyes, FITC (Catalog # 5440), TMR and Cyanine 5 (Catalog # 5436). CoraFluor™ fluorescence is brighter and more stable in biological media than existing TR-FRET donors, leading to enhanced sensitivity and improved data generation. CoraFluor™ 1 exhibits excitation upon exposure to a 337 nm UV laser.

Applications for NKG2A/CD159a/KLRC1 Antibody (2097C) [CoraFluor™ 1]

Application
Recommended Usage

CyTOF-ready

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: NKG2A/CD159a

NK group 2 member A (NKG2A), also known as killer lectin like receptor c1 (KLRC1) and CD159a, is a ~38 kDa type II transmembrane protein belonging to the C-type lectin superfamily and plays a role in suppression of cytotoxic CD8+ T cell activity and functions as an immune checkpoint (1,2). NKG2A belongs to a group of natural killer (NK) cell inhibitor receptors (IRs) which includes killer immunoglobulin receptors (KIRs), lymphocyte activation gene-3 (LAG-3), T cell immunoreceptor with Ig and ITIM domains (TIGIT), programmed death ligand-1 (PD-1), and T cell immunoglobulin mucin-3 (TIM-3) (1,3). NKG2A is synthesized as a protein of 233 amino acids (aa) with a theoretical molecular weight of 26.3 kDa and is expressed on CD56hi NK cells, NKT cells, and some CD8+ alphabeta T cells (2,4). Together with CD94, NKG2A forms a heterodimer and acts as a receptor for the MHC Class I molecular human leukocyte antigen (HLA)-E (1-3). The NKG2A/CD94 receptor interaction with the HLA-E ligand results in phosphorylation of NKG2A's immunoreceptor tyrosine-based inhibition motifs (ITIMs), causing suppression of activating signals from immunoreceptor tyrosine-based activation motif (ITAM)- containing T cell receptors (TCR) or other activating receptors like NKG2D, via the intracellular phosphatase SHP1 (2,3,5). Overall, cancer cells utilize the NKG2A-HLA-E interaction and signaling to evade immune surveillance by NK cells and T cells (1-3,5-6).

Similar to cytotoxic T lymphocyte associated protein 4 (CTLA-4) and PD-1, NKG2A has become a prominent target for immune checkpoint blockade and cancer immunotherapy (1-3,5-6). Monalizumab is a novel IgG4 monoclonal antibody developed for blocking NKG2A's interaction with HLA-E and has shown promising results in clinical trials (1-3,5-6). In addition to being used as a single agent, it is being studied as a possible combination therapy with other blocking antibodies such as anti-PD-L1 and anti-epidermal growth factor receptor (EGFR) (2,5,6).

References

1. Alfarra, H., Weir, J., Grieve, S., & Reiman, T. (2020). Targeting NK Cell Inhibitory Receptors for Precision Multiple Myeloma Immunotherapy. Frontiers in immunology, 11, 575609. https://doi.org/10.3389/fimmu.2020.575609

2. Creelan, B. C., & Antonia, S. J. (2019). The NKG2A immune checkpoint - a new direction in cancer immunotherapy. Nature reviews. Clinical oncology, 16(5), 277-278. https://doi.org/10.1038/s41571-019-0182-8

3. Zaghi, E., Calvi, M., Marcenaro, E., Mavilio, D., & Di Vito, C. (2019). Targeting NKG2A to elucidate natural killer cell ontogenesis and to develop novel immune-therapeutic strategies in cancer therapy. Journal of leukocyte biology, 105(6), 1243-1251. https://doi.org/10.1002/JLB.MR0718-300R

4. Uniprot (P26715)

5. Borst, L., van der Burg, S. H., & van Hall, T. (2020). The NKG2A-HLA-E Axis as a Novel Checkpoint in the Tumor Microenvironment. Clinical cancer research : an official journal of the American Association for Cancer Research, 26(21), 5549-5556. https://doi.org/10.1158/1078-0432.CCR-19-2095

6. Andre, P., Denis, C., Soulas, C., Bourbon-Caillet, C., Lopez, J., Arnoux, T., Blery, M., Bonnafous, C., Gauthier, L., Morel, A., Rossi, B., Remark, R., Breso, V., Bonnet, E., Habif, G., Guia, S., Lalanne, A. I., Hoffmann, C., Lantz, O., Fayette, J., ... Vivier, E. (2018). Anti-NKG2A mAb Is a Checkpoint Inhibitor that Promotes Anti-tumor Immunity by Unleashing Both T and NK Cells. Cell, 175(7), 1731-1743.e13. https://doi.org/10.1016/j.cell.2018.10.014

Long Name

Natural Killer G2A

Alternate Names

CD159a, Klrc1, NKG2

Additional NKG2A/CD159a Products

Product Documents for NKG2A/CD159a/KLRC1 Antibody (2097C) [CoraFluor™ 1]

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for NKG2A/CD159a/KLRC1 Antibody (2097C) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
