pSIVA Apoptosis Detection Kit

Catalog # NBP2-29382 | Novus Biologicals a Bio-Techne Brand
Catalog #
Availability
Size / Price
Qty
Loading...
NBP2-29382

Key Product Details

Species

Human, Mouse, Rat

Applications

Functional Assay, Immunocytochemistry/ Immunofluorescence, Microscopy

Kit Type

Kit

Conjugate

IANBD

Product Summary for pSIVA Apoptosis Detection Kit

Polarity Sensitive Indicator of Viability (pSIVA(TM) is an Annexin based, polarity sensitive probe for the spatiotemporal or kinetic analysis of apoptosis and other forms of cell death. pSIVA(TM) binding is reversible, enabling researchers to detect transient phosphatidylserine (PS) exposure which is associated with normal physiological processes as well as with reversible or rescuable apoptosis cell death events. pSIVA(TM) is conjugated to IANBD, a polarity sensitive dye that fluoresces only when pSIVA(TM) is bound to the cell membrane. pSIVA's membrane-bound dependent fluorescence and reversible binding properties are a technological leap for detecting PS exposure and offer additional information on the apoptosis pathway and cell survival compared to Annexin V conjugates. Annexin V binding is nonreversible.

Product Specifications

Application Notes

See attached PDF protocol for specific usage information. Use in Immunocytochemistry/immunofluorescence reported in scientific literature (PMID 24162663). use in ICC/IF, in vitro , and in vivo. reported in scientific literature (PMID: 19966809).

Reactivity Notes

Mouse reactivity reported in scientific literature (PMID: 24999049). Human reactivity reported in scientific literature (PMID: 25692494). Rat reactivity reported in scientific literature (PMID: 19966809).

Scientific Data Images for pSIVA Apoptosis Detection Kit

Live Imaging Microscopy: Polarity Sensitive Indicator of Viability Apoptosis Microscopy Kit [NBP2-29382] - Rescue of dying neurons: NGF withdrawal leads to cell death and pSIVA-IANBD(TM) fluorescence. Addition of NGF eventually rescues some neurons as shown by the loss of pSIVA-IANBD(TM) fluorescence (30h boxes).
Live Imaging Microscopy: Polarity Sensitive Indicator of Viability Apoptosis Microscopy Kit [NBP2-29382] - Rescue of dying neurons. NGF withdrawal leads to cell death and pSIVA-IANBD(TM) fluorescence. Correlation of fluorescence and phase microscopy shows that NGF rescued the neurons as shown by the loss of pSIVA-IANBD(TM) fluorescence at 30h.

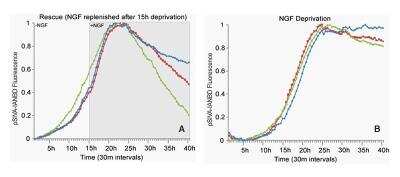

Live Imaging Microscopy: Polarity Sensitive Indicator of Viability Apoptosis Microscopy Kit [NBP2-29382] - Quantitative analysis of pSIVA-IANBD™ fluorescence is rescued and NGF deprived neuronal cultures. pSIVA-IANBD(TM) fluorescence from 3 areas of the culture shows that NGF rescue (A) of dying cells was associated with loss of fluorescence whereas unrescued cells (B) continued to fluoresce.

Kit Contents for pSIVA Apoptosis Detection Kit

  • Propidium Iodide Staining Solution (500 uL)
  • pSIVA-IANBD (200 uL)

Formulation, Preparation, and Storage

Concentration

Concentration is not relevant for this product. Please see the protocols for proper use of this product.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store at 4°C.

Background: pSIVA Apoptosis Detection

Alternate Names

apoptosis kinetics, apoptosis kit, apoptosis kit annexin v, apoptosis kit flow cytometry, apoptosis kit microscopy

Product Documents for pSIVA Apoptosis Detection Kit

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for pSIVA Apoptosis Detection Kit

pSIVA is protected under patent number: 8,541,549. This is the same kit which was sold as pSIVA(TM) - IANBD Apoptosis/Viability Microscopy Set [Catalog Number IMG-6701K] by Imgenex - now a part of Novus Biologicals, a Bio-Techne brand.

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Kits are guaranteed for 6 months from date of receipt.

Citations for pSIVA Apoptosis Detection Kit (36)

Showing  1 - 10 of 36 publications Showing All
Filter By:
Search Title:

Citations are publications that use Bio-Techne products. Selected citations for pSIVA Apoptosis Detection Kit include:

There are no citations that match your criteria.

Showing  1 - 10 of 36 publications Showing All

Customer Reviews for pSIVA Apoptosis Detection Kit (1)

5 out of 5
1 customer rating
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 star
0%

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Name: Anonymous
    Application: Immunofluorescence
    Sample Tested: dystrophic (RCS) rat neural retina
    Species: Rat
    Verified Customer | Posted 06/08/2016
    pSIVA Apoptosis Detection Kit NBP2-29382

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

Protocols

View specific protocols for pSIVA Apoptosis Detection Kit (NBP2-29382):

[[URL:https://www.novusbio.com/products/psiva-apoptosis-detection-kit_nbp2-29… Apoptosis Detection Kit]]
Hazard Information
Chemical Name: Propidium Iodide
CAS Number: 25535-16-4

Hazard Identification
Eye, skin

First Aid Measures
Eye Contact: Irrigate thoroughly with water for at least 15 minutes. Seek medical advice.
Skin Contact: Wash skin thoroughly with soap and water for at least 15 minutes. Remove contaminated clothing and wash before re-use. In severe cases, obtain medical attention.
Inhalation: Remove from exposure, rest and keep warm. In severe cases, seek medical advice.
Ingestion: Wash out mouth thoroughly with water and give plenty of water to drink. Seek medical advice.

Accidental Release Measures
Wear appropriate protective clothing. Inform others to keep a safe distance. Spread inert absorbent material liberally over spillage. If local regulations permit, mop up cautiously with plenty of water and run to waste, diluting greatly with running water. Otherwise transfer to container and arrange removal by disposal company. Wash site of spillage thoroughly with water.

Handling and Storage
Handling: No special handling required. Store at 4C or colder, protect from light.
Exposure Controls / Personal Protection
Ventilation: Use in an open, well-ventilated area
Gloves: Rubber or plastic
Eye Protection: Lab goggles or face shield
Physical and Chemical Properties
Form: Liquid
Color: Colorless
Odor: Odorless

Melting Point: 220-225C
Boiling Temperature: No data available
Density: No data available
Vapor Pressure: No data available
Solubility in Water: Very soluble
Flash Point: No data available
Explosion limits: No data available
Ignition Temperature: No data available
Stability and Reactivity: Stable at room temperature

Other Information
Transport: not classified as dangerous


Material Safety Data Sheet for IANBD

Hazard Information
Chemical Name: N-((2-(iodoacetoxy)ethyl)-N-methyl)amino-7-nitrobenz-2-oxa-1,3-diazole (IANBD ester)

Hazard Identification
The product contains no substances which at their given concentration are considered to be hazardous to health. NOVUS recommends handling all chemicals with caution.

FAQs for pSIVA Apoptosis Detection Kit

Showing  1 - 2 of 2 FAQs Showing All
  • Q: Our end user is working on tissues (epithelium of imaginal disk from drosophila leg). The tissues are kept growing on a culture medium and they manage to follow apoptosis properly with orange acrylin but not with annexin V because of background. Did you ever test any of your pSIVA apoptosis kits (NBP2-29382, NBP2-29611) on tissue culture instead of cell culture ? Is there a chance the proble will work on such an application ? Would you be able to provide a sample for this application ? As for the other samples, I'm still waiting on customer feedback and I'll keep you posted.

    A: Yes, pSIVA has been used in tissue applications as denoted on the publication link. Specifically, I would encourage the research to look at the following publications from the link: 1. Diurnal, localized exposure of phosphatidylserine by rod outer segment tips in wild-type but not Itgb5-/- or Mfge8-/- mouse retina. Ruggiero L, MP Connor, J Chen, R Langen, SC Finnemann. PNAS 109:8145-4148 (2012). Live tissue imaging (mouse retina): Figs 4, 5. S4. pSIVA-IANBD was added to dissected live mouse retina and shown to label the tips of photoreceptor outer segments (POS). > The results suggested that phosphatidylserine (PS) exposure is specific to the POS surface. Furthermore, enhanced PS exposure preceded rod shedding and phagocytosis, suggesting that surface PS exposure promotes these processes. 2. Diurnal photoreceptor outer segment shedding: contributions of the RPE. Finnemann SC, L Ruggiero, MP Connor. Invest Opthalmol Vis Sci 53:4327 (2012). Live Imaging: mouse retina. pSIVA was used quantify the surface exposure of phosphotidylserine on the distal rod photoreceptor outer segments. 3. Characterization of cell cycle modifications induced by electric pulses in human corneal endothelium. Thi MH, Z He, N Campolmi, S Piselli, P Gain, M Peoc'H, JM Dumolllard, S Acquart, O Garraud, G Thuret. Acta Opthalmologica 90:s249 (2012). Live tissue imaging (human cornea organ cultures): pSIVA-IANBD was used to assess cell death following gene electrotransfer into corneal endothelial cells. > 3. Engineering a polarity-sensitive biosensor for time-lapse imaging of apoptotic processess and degeneration. Kim YE, J Chen, JR Chan, R Langen. Nature Methods 7:67-73 (2010a). Real-time live-cell imaging and time-lapse microscopy of apoptosis: Fig 2 (COS-7 cells), Fig 3 (rat neuronal degeneration), Fig 4 (rat axonal degeneration), Fig 5 (rescue of rat neuronal degeneration as visualized by pSIVA. (this was also used in a rat nerve injury tissue model) Please watch the pSIVA webinar on our website for additional information about pSIVA. The webinar is referred to March 25, 2014: Real-Time Tracking of Cell Death Webinar. We would certainly be pleased to offer any of your end user research customers a sample who is willing to provide a short explanation about what they are planning to do, their timeframe, and provide feedback about how it worked for them. For any samples, please specify if you

  • Q: How many tests can you perform with this kit?

    A: 100 tests for the full sized kit and 25 tests for the 1 sample sized kit.

Showing  1 - 2 of 2 FAQs Showing All
