Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge

Name: Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-000584

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-000584

Simple Plex Mouse/Rat CCL2/JE/MCP-1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Mouse Cell Culture Supernates (5 uL), Rat Cell Culture Supernates (5 uL), Mouse Serum (25 uL), Rat Serum (5 uL), Mouse EDTA Plasma (25 uL), Rat EDTA Plasma (25 uL), Mouse Heparin Plasma (25 uL), Rat Heparin Plasma (25 uL), Mouse Cerebrospinal Fluid (25 uL)
Sensitivity:	0.16 pg/mL
Assay Range:	0.71 - 1,090 pg/mL (Mouse Cell Culture Supernates, Rat Cell Culture Supernates, Mouse Serum, Rat Serum, Mouse EDTA Plasma, Rat EDTA Plasma, Mouse Heparin Plasma, Rat Heparin Plasma, Mouse Cerebrospinal Fluid)
Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge Summary:	Simple Plex assay is for the detection of mouse and rat Monocyte Chemotactic Protein 1 (MCP-1) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse, Rat
Specificity	Natural and recombinant mouse/rat MCP-1.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one MCP-1 assay

Inter-Assay Precision (Precision between assays) Replicates of each MCP-1 control were tested in multiple assays performed by at least three technicians using two lots of reagents for MCP-1

Mouse Cell Culture Supernates, Rat Cell Culture Supernates, Mouse Serum, Rat Serum, Mouse EDTA Plasma, Rat EDTA Plasma, Mouse Heparin Plasma, Rat Heparin Plasma, Mouse Cerebrospinal Fluid

	Intra-Assay Precision		Inter-Assay Precision
Sample
n	16	16	54	54
Mean (pg/mL)	331	6.41	313	6.6
Standard Deviation	20.2	0.484	27.4	0.697
CV%	6.1	7.5	8.8	10.6

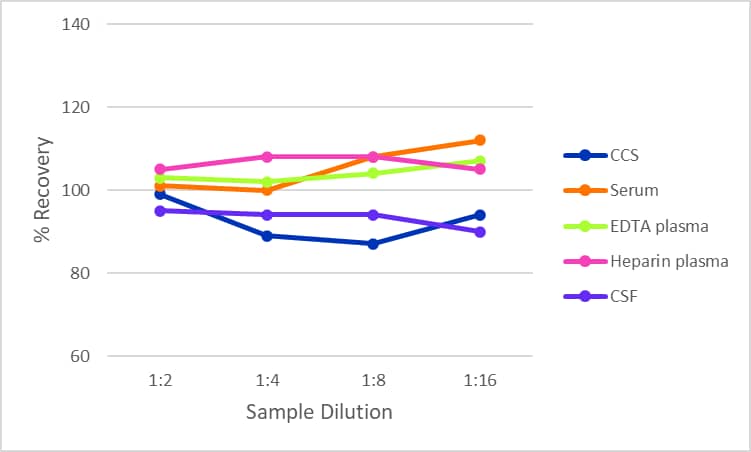

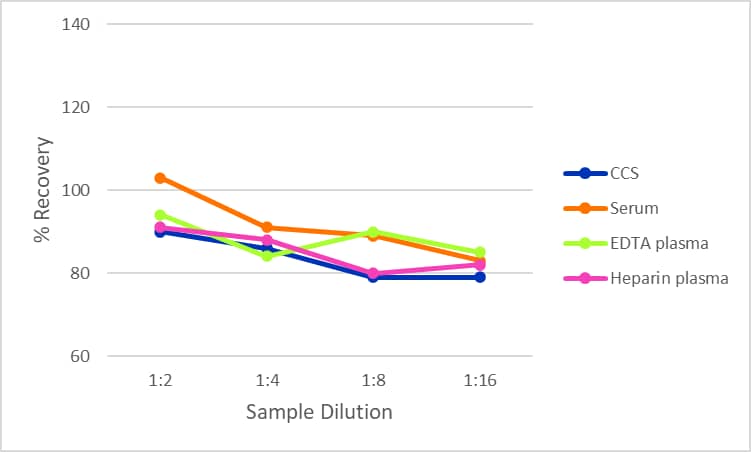

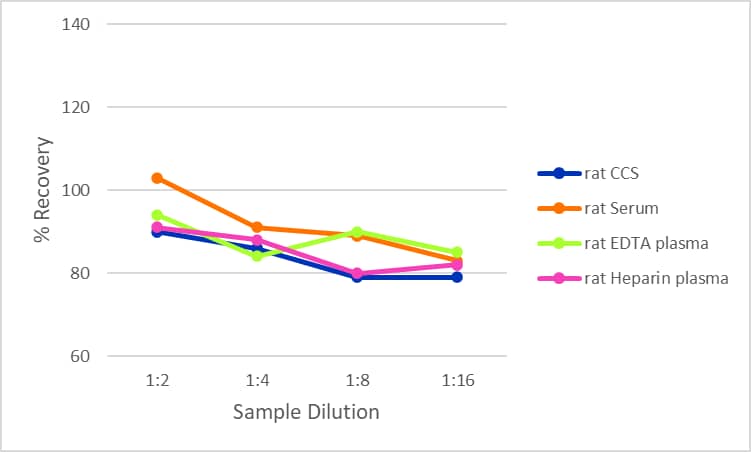

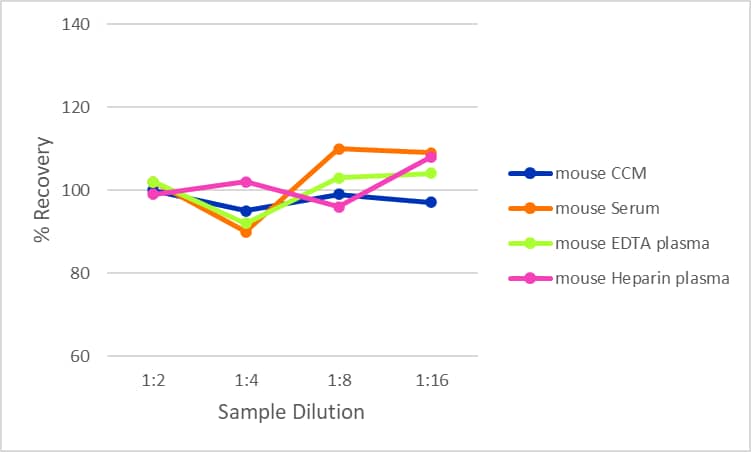

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat MCP-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge

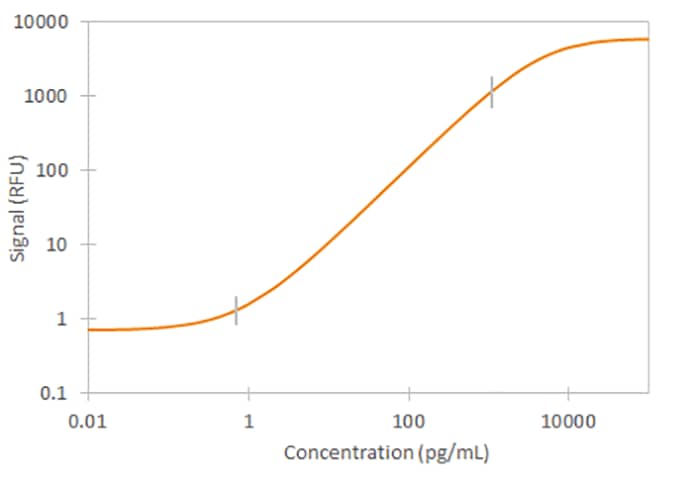

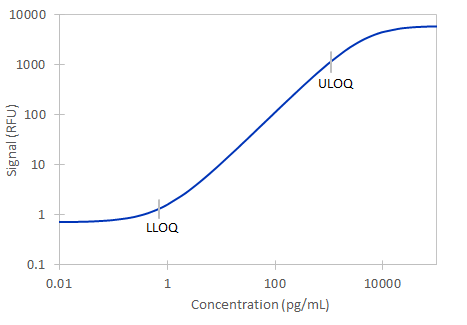

	Simple Plex Mouse/Rat MCP-1 Assay Standard Curve Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse/Rat MCP-1 Assay. Assay range is 0.71-1090 pg/mL.

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CCL2/JE/MCP-1

CCL2/JE/MCP-1, is a chemokine that binds the receptor CCR2 and induces the chemoattraction of mononuclear cells. It induces the activation of monocytes, NK cells, lymphocytes, and basophils. Additionally, CCL2 promotes Th2 polarization in CD4+ T cells, and CCL2-mediated recruitment of monocytes to sites of inflammation contributes to disease severity in atherosclerosis, multiple sclerosis, and allergic asthma. Endogenous proteolytic trimming of CCL2 at the N-terminus, including the N-terminal pyrrolidone carboxylic acid-modified glutamine, downregulates activity but not receptor binding.

Item	Value
Entrez Gene IDs	6347 (Human); 20296 (Mouse); 24770 (Rat); 403981 (Canine)
Alternate Names	C-C motif chemokine ligand 2, CCL2, GDCF-2, HC11, HSMCR30, MCAF, MCP-1, Mcp1, SCYA2, SMC-CF

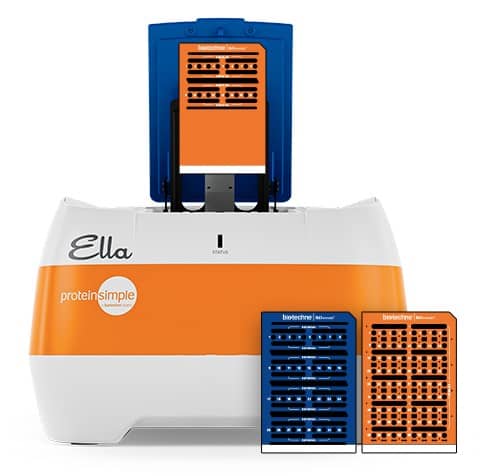

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Mouse/Rat CCL2/JE/MCP-1 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
