Simple Plex Human Erythropoietin Cartridge Best Seller

Name: Simple Plex Human Erythropoietin Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000487

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000487

Simple Plex Human Erythropoietin/EPO assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.202 mIU/mL
Assay Range:	0.36 - 550 mIU/mL (Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Human Erythropoietin Cartridge Summary:	Simple Plex assay for the detection of human EPO in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human Erythropoietin Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human Erythropoietin Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human EPO.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	9	8
Mean (mIU/mL)	2.65	142	2.75	150
Standard Deviation	0.096	5.62	0.213	9.44
CV%	3.6	4	7.8	6.3

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Supernates (n=4)	108	106-111
EDTA Plasma (n=4)	115	97-125
Heparin Plasma (n=4)	113	97-129
Serum (n=4)	113	111-115

Linearity

Samples containing and/or spiked with high concentrations of human EPO were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human Erythropoietin Cartridge

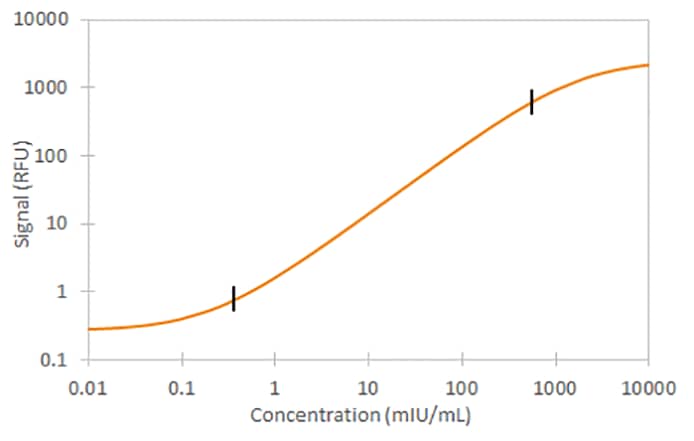

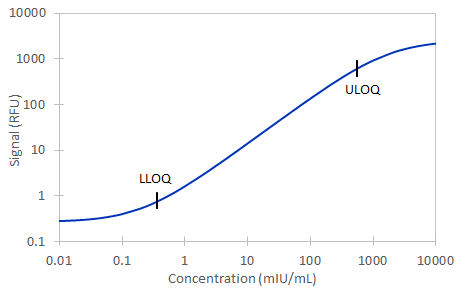

	Human Epo Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Erythropoietin/EPO

Erythropoietin (Epo) is a 30-kDa, heavily glycosylated protein produced primarily by the kidney. It is the principal factor that regulates erythropoiesis. The production of Epo by kidney cells is increased in response to hypoxia or anemia. The cDNAs for Epo have been cloned from many species. The mature proteins from the various species are highly conserved, exhibiting greater than 80% sequence identity at the amino acid level.

The biological effects of Epo are mediated by the Erythropoietin receptor (Epo R). At the protein sequence level, the human Epo R is approximately 83% identical to the mouse protein. As a result of alternative splicing of the Epo R gene, cDNA clones encoding truncated soluble forms of Epo R have been found. Recombinant soluble Epo R binds Epo with high affinity and is a potent Epo antagonist.

Item	Value
Entrez Gene IDs	2056 (Human); 13856 (Mouse); 24335 (Rat)
Alternate Names	ECYT5, EP, EPO, Erythropoietin, MGC138142, MVCD2, epoetin

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.
