Non-Human Primate CCL19/MIP-3b Cartridge
ProteinSimple, part of Bio-Techne | Catalog # SPCKB-NP-011294
Customize Your Simple Plex Cartridge
Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and add up to 8 analytes per cartridge.
Key Product Details
Assay Length
Sample Type & Volume Required Per Well*
Sensitivity
Assay Range
Non-Human Primate CCL19/MIP-3b Cartridge Summary
*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.
Compatible Instruments

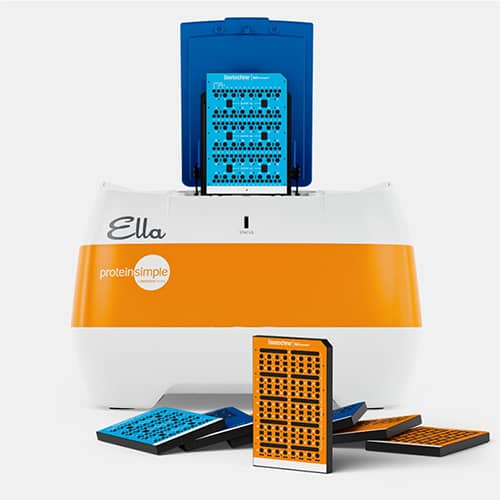

Ella Automated Immunoassay System
Product Specifications
Assay Type
Format
Reactivity
Specificity
Cross-reactivity
Interference
Precision
Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.
Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.
EDTA Plasma, Heparin Plasma, Serum
| Intra-Assay Precision | Inter-Assay Precision | |||
|---|---|---|---|---|
| Sample | 1 | 2 | 1 | 2 |
| n | 16 | 16 | 37 | 36 |
| Mean (pg/mL) | 36.4 | 2055 | 34.8 | 1881 |
| Standard Deviation | 1.57 | 115 | 3.51 | 209 |
| CV% | 4.3 | 5.6 | 10.1 | 11.1 |
Recovery for Non-Human Primate CCL19/MIP-3b Cartridge
Recovery
| Sample Type | Average % Recovery | Range % |
|---|---|---|
| EDTA Plasma (n=4) | 86 | 79-101 |
| Heparin Plasma (n=5) | 82 | 78-88 |
| Serum (n=5) | 81 | 76-89 |
Linearity
Samples containing and/or spiked with high concentrations of MIP-3 beta were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.
Scientific Data Images for Non-Human Primate CCL19/MIP-3b Cartridge
Non-Human Primate CCL19/MIP-3b Ella Assay Standard Curve
Preparation and Storage
Shipping
Stability & Storage
Background: CCL19/MIP-3 beta
Macrophage inflammatory protein 3 beta (MIP-3 beta), also known as ELC (EBI1-ligand chemokine) and exodus-3, is constitutively expressed in various lymphoid tissues, including thymus, lymph nodes, appendix and spleen. It is distantly related to other CC chemokines (20-30% amino acid sequence identity).
Alternate Names
Gene Symbol
Additional CCL19/MIP-3 beta Products
Product Documents for Non-Human Primate CCL19/MIP-3b Cartridge
Product Specific Notices for Non-Human Primate CCL19/MIP-3b Cartridge
For research use only
