F. tularensis Cpf1 (Ser2-Asn1300) Accession # WP_003034647.1
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal sequence Analysis
Predicted Molecular Mass
110-135 kDa, under reducing conditions
Measured by its ability to cleave a targeted DNA substrate. rF. tularensis Cpf1 achieves >80% substrate cleavage, as measured under the described conditions.
Recombinant F. tularensis Cpf1 Protein, CF Scientific Data Examples

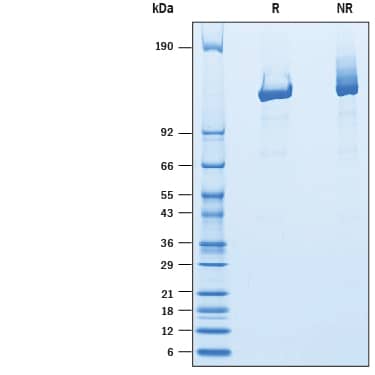

Recombinant F. tularensis Cpf1 Protein SDS-PAGE
2 μg/lane of Recombinant HumanF. tularensisCpt1 Protein (Catalog # 10343-C1) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 110-135 kDa.
Formulation, Preparation and Storage
What does CF mean?
CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our
Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant
protein to be stored at a more dilute concentration.
The carrier free version does not contain BSA.
What formulation is right for me?
In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or
as an ELISA standard.
In contrast, the carrier free protein is recommended for applications, in which the presence of BSA
Supplied as a 0.2 μm filtered solution in Tris, NaCl, EDTA, Glycerol and TCEP.
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
6 months from date of receipt, -20 to -70 °C as supplied.
3 months, -20 to -70 °C under sterile conditions after opening.
Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR)-associated endonuclease from Prevotella and Francisella 1, Cpf1, also known as Cas12a, is a 1200-1500 amino-acids long monomeric protein that belongs to the CRISPR/Cas system (1, 2), an adaptive immune system of prokaryotes that has now become a powerful tool for genome editing (3). CRISPR/Cpf1 belongs the class II (type 5) of the CRISPR/Cas system that is defined by a single-subunit effector (4). Cpf1 has recently emerged as an alternative for Cas9, due to its distinct features (2, 5) such as the ability to target T-rich motifs, no need for trans-activating crRNA, inducing a staggered double-strand break and potential for both RNA processing and DNA nuclease activity. In addition, Cpf1 is able to process more structured pre-CRISPR/RNA(crRNA) molecules into mature crRNAs (6) which allows the possibility to use both mature or pre-crRNA for genome editing purposes(7). All these features make the CRISPR-Cpf1 system a valuable genome-engineering tool (8). CRISPR-Cpf1(Cas12a) has been successfully used to edit genomes in mammalians cells (2), plants (9), mice (10), Drosophila (11) and recently zebrafish and Xenopus (7). Two Cpf1 orthologs have been commonly used for genome editing in different organisms: AsCpf1 and LbCpf1, which are derived from Acidaminococcus sp. BV3L6 and Lachnospiraceae bacterium ND2006, respectively (8).The attached nuclear localization signals (NLSs) on the chimeric protein ensures nuclear compartmentalization in cells during gene editing (12).
Jinek, M. et al. (2012) Science 337:816.
Zetsche, B. et al. (2015) Cell 163:759.
Sandler J.D. and Joung J.K. (2014) Nat Biotechnol. 32:347.
Koonin E.V. et al. (2017) Curr. Opin. Micrbiol. 37:67.
Bayat H. et al. (2018) Curr. Micribiol. 75:107.
Fonfara, I. et al. (2016) Nature 532:517.
Moreno-Mateo, M.A. et al. (2017) Nat. Commun 8:2024.
Joung K.J. et al. (2016) Nat. Biotechnol. 34:869.
Kim, H et al. (2017) Nat. Commun. 8:14406.
Kim, Y. et al. (2016) Nat. Biotechnol. 34:808.
Port, F. and Bullock, S.L. (2016) Nat Methods 13:852.
