FluorChem FC3 system
ProteinSimple, part of Bio-Techne | Catalog # 92-15408-00
Discontinued Product
The FluorChem™ FC3 system gives you the full gamut of image acquisition modes for all the common fluorescent and chemiluminescent applications you run regularly. ***We regretfully notify you that this system has been discontinued and existing products once depleted will no longer be available.***
|

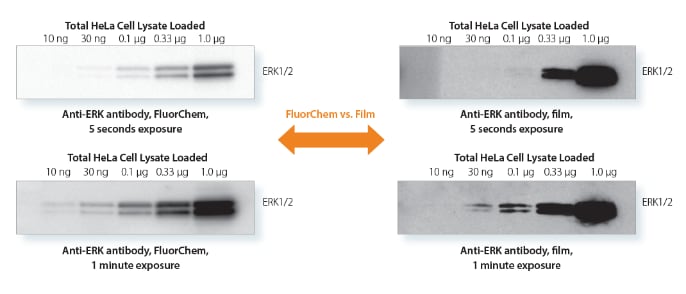

I'm tired of doing multiple exposures with film to get the images I needWith a 5-log dynamic range enabled by the large, high-resolution CCD sensor in FluorChem imagers, you can detect faint bands and bright bands without oversaturating in a single exposure. And you get your data in minutes, with no waste at all. |
|
|

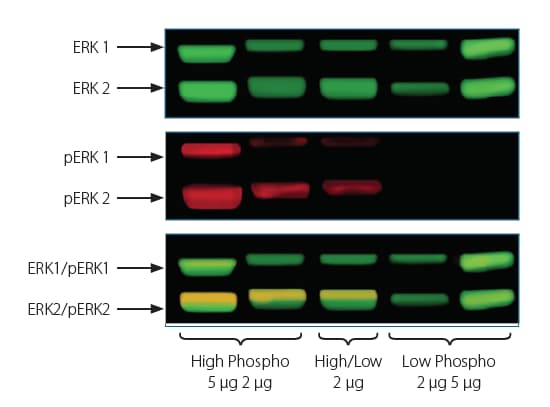

My proteins are close in molecular weight, and I need to be able to differentiate between them on a single blotThe high resolution, supercooled CCD cameras in FluorChem imagers ensure that you'll get the best image quality and the sensitivity you need to do accurate analysis, and differentiate between bands that are close together. The FluorChem Q also enables multiplex fluorescent imaging, letting you analyze overlapping proteins in the same blot. |
|
We're doing a lot of different applications, and we don't want to have to buy multiple imagersFluorChem imagers are versatile - they are upgradeable, with true multi-mode capabilities, including trans and epi UV, trans and epi white light, chemiluminescence, and visible fluorescence detection modes. Cover all your application bases with the flexibility you need. |
|

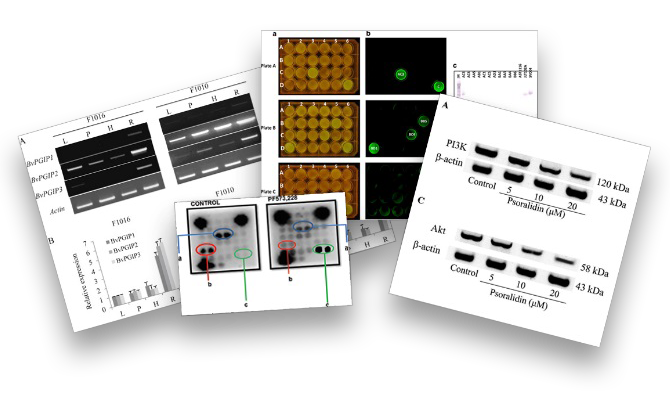

I need to publish my results—how do I know I can get the quality images I need?Our imagers have been published in over 20,000 publications worldwide. Our scientific-grade, high-resolution cameras ensure that you get great looking images that are perfect for publication. |
|

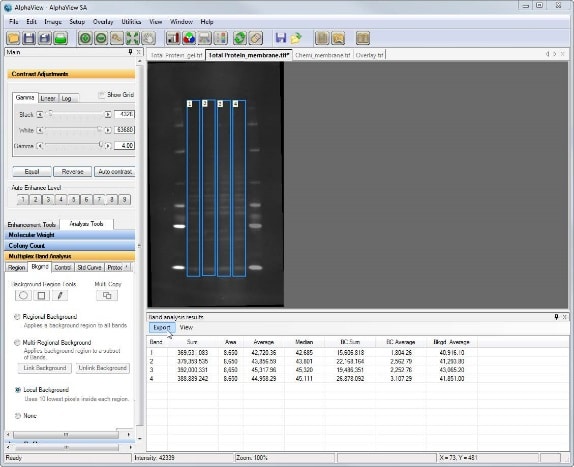

I need to do analyses like densitometry and total protein normalizationAlphaView software, which comes with all AlphaImagers and FluorChem imagers, is packed with many advanced analysis features. From molecular weight analysis, lane profiling, and multiplex band analysis to colony counting and total protein normalization, AlphaView has everything you need for simple and complex applications. |
Citations for FluorChem FC3 system
View all citations for the Imaging platform.
Please visit our Instrument Citation Database to search our collection of scientific articles that feature our instruments.
More Information About FluorChem FC3 system
| Feature | Description |
|---|---|
| Applications | |
| Application Types | Chemiluminescent, Colorimetric, UV Fluorescent |
| System Configuration | |
| Camera Resolution | 1.45 Megapixels (1392 x 1040) |
| A/D | 16-bit |
| Lens Options | 20 mm, f/1.8 Fixed, Manual 12.5 - 75 mm, f / 1.2 Zoom, Motorized |
| Pixels | 6.45 x 6.45 µm |
| Filter Positions | 5, Motorized |
| Upgrade Options | HD2 |
| Size | 20 W x 15 D x 39.5 H (51 x 38 x 100 cm) |
| Weight | 100 lbs (45.4 kg) |
