AlphaImager Mini System
ProteinSimple, part of Bio-Techne | Catalog # 92-14021-00
Discontinued Product
The AlphaImager® Mini is perfect for routine fluorescent and colorimetric research applications. This compact, portable system weighs only 14 lbs (6.4 kg) and requires very little bench space. ***We regretfully notify you that this system has been discontinued and existing products once depleted will no longer be available.***
|

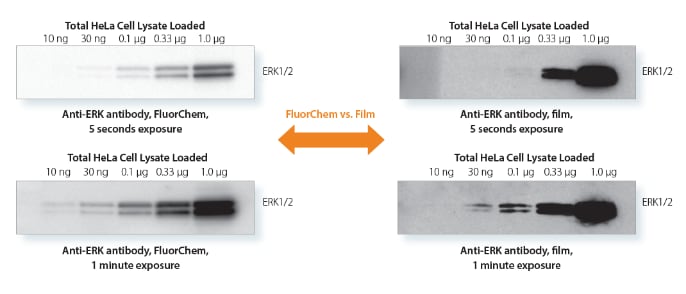

I'm tired of having to develop multiple exposures with film. It's wasteful and time consumingDigital imaging gives you a greater dynamic range than film, which means you can detect faint bands and bright bands without oversaturating in a single exposure. And you get your data in minutes, with no waste at all. |
|

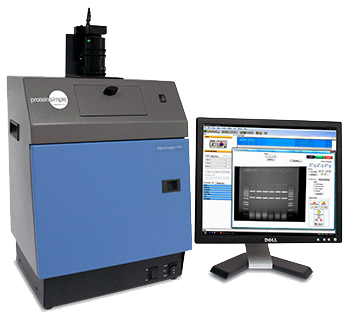

I need a digital imager, but I don't have a lot of bench spaceThe AlphaImager Mini is a compact, portable imager. With a footprint of only 11" x 14", the Mini will easily fit onto a lab bench without taking up too much of your precious space. |
|

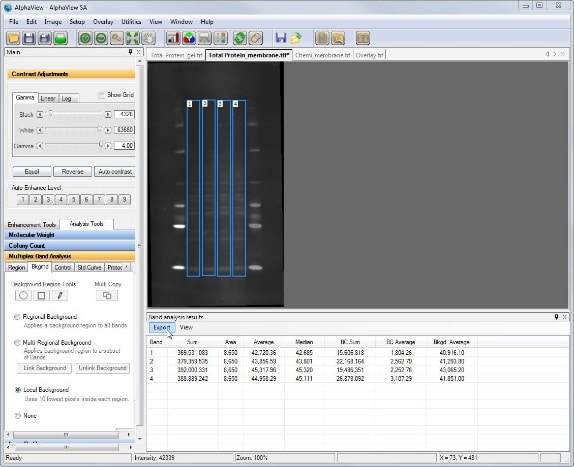

I need to do analyses like densitometry and total protein normalizationAlphaView software, which comes with all AlphaImagers and FluorChem imagers, is packed with many advanced analysis features. From molecular weight analysis, lane profiling, and multiplex band analysis to colony counting and total protein normalization, AlphaView has everything you need for simple and complex applications. |
|
I need to publish my results—how do I know I can get the quality images I need?Our imagers have been published in over 20,000 publications worldwide. Our scientific-grade, high-resolution cameras ensure that you get great looking images that are perfect for publication. |
Citations for AlphaImager Mini System
View all citations for the Imaging platform.
Please visit our Instrument Citation Database to search our collection of scientific articles that feature our instruments.
More Information About AlphaImager Mini System
| Feature | Description |
|---|---|
| Applications | |
| Application Types | Colorimetric, UV Fluorescent |
| System Configuration | |
| Camera Resolution | 1.3 Megapixels |
| A/D | 12-bit |
| Lens | 8-48 mm, f/1.2 Zoom, Manual |
| Maximum Field of View | 21.8 x 15 cm |
| Filter Positions | 1 |
| Size | Unit: 14 W x 11 D x 19 H (35.5 x 28 x 48 cm) UV Trans: 13.5 W x 10 D x 3.5 H(34.3 x 25.4 x 9 cm) |
| Weight | Unit: 15 lbs (6.7 kg) UV Trans: 10 lbs(4.4 kg) |
