CD63 Antibody (MEM-259) - BSA Free

Catalog # NB100-77913 | Novus Biologicals a Bio-Techne Brand

Key Product Details

Species Reactivity

Human, Mouse, Rat


CyTOF-ready, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Immunoprecipitation, Western Blot



Antibody Source

Monoclonal Mouse IgG1 Clone # MEM-259


BSA Free


1.0 mg/ml

Product Summary for CD63 Antibody (MEM-259) - BSA Free


HPB-ALL T cell line

Reactivity Notes

Use in Mouse and Rat reported in scientific literature (PMID:32111836).


The antibody MEM-259 reacts with an extracellular/luminal epitope of CD63 (LAMP-3), a 40-60 kDa tetraspan glycoprotein expressed by granulocytes, platelets, T-cells, monocytes/macrophages and endothelial cells. Cell surface exposition of CD63 is usually activation-dependent.


Late Endosomes Marker







Theoretical MW

60 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for CD63 Antibody (MEM-259) - BSA Free

Immunocytochemistry/Immunofluorescence: CD63 Antibody (MEM-259) [NB100-77913] - Human HeLa cells. ICC/IF image submitted by a verified customer review.
Western Blot: CD63 Antibody (MEM-259) [NB100-77913] - Immunoblot analysis of CD63, CD81, TSG101, and CD9 protein in LSC-Exo and MSC-Exo. Image collected and cropped by CiteAb from the following publication (, licensed under a CC-BY license.
Immunohistochemistry-Paraffin: CD63 Antibody (MEM-259) [NB100-77913] - Staining of human spleen (paraffin sections) using anti-CD63 (MEM-259).

Applications for CD63 Antibody (MEM-259) - BSA Free

Recommended Usage

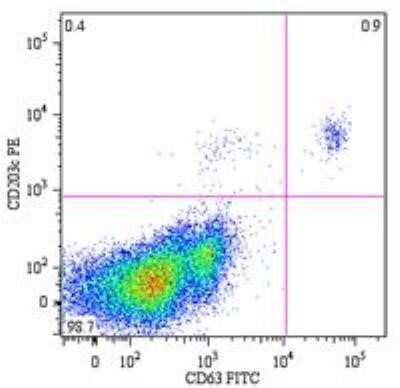

Flow Cytometry

2 ug/ml

Immunocytochemistry/ Immunofluorescence

1:10 - 1:2000


10 ug/mL


10 ug/ml


1:10 - 1:500

Western Blot

1:100 - 1:2000
Application Notes
This antibody is CyTOF ready. WB reactivity reported in (PMID: 25034888). Clone MEM-259 has been used for extracellular vesicle flow cytometry
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 1 review rated 5 using NB100-77913 in the following applications:

Published Applications

Read 14 publications using NB100-77913 in the following applications:

Formulation, Preparation, and Storage


Protein A purified


PBS (pH 7.4)


BSA Free


15mM Sodium Azide


1.0 mg/ml


The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C. Do not freeze.

Background: CD63

CD63 (cluster of differentiation 63), also known as lysosome associated membrane protein 3 (LAMP-3), is a membrane spanning glycoprotein with a molecular mass ranging from 30-60 kDa that was the first characterized member of the tetraspanin superfamily (1,2). CD63 is ubiquitously expressed and largely present on the cell surface in the endosomal system (1-3). More specifically, it is generally present in multivesicular bodies (MVBs), also called late endosomes, and lysosomes (1). The CD63 molecule is a total of 238 amino acids (aa), has four hydrophobic membrane-spanning regions and three N-glycosylation sites, and the encoded protein has a theoretical molecular weight of 25 kDa (2,3). CD63 both directly and indirectly interacts with other proteins including integrins, cell surface receptors, other tetraspanins, kinases, and adapter proteins, to name a few (1). CD63 is involved in many cell processes including cell survival and activation, cell adhesion, invasion, and migration (1). Additionally, CD63 has been shown to interact with tissue inhibitor of metalloproteinase 1 (TIMP-1), which originally thought to be an inhibitor of cancer progression has recently been shown to have cancer promoting properties as well (1,4). The CD63-TIMP-1 interaction has been shown to activate the PI3K/AKT pathway in lung adenocarcinoma cells and also promote survival and invasion of acute myeloid leukemia cells (1).CD63 is a useful flow cytometry marker for basophil granulocytes and can be used for the basophil activation test (BAT) to assess IgE-mediated allergy response (5). As CD63 was initially discovered on activated blood platelets and is a lysosomal-associated protein it makes sense it would be involved in platelet or lysosomal-related disorders (1,2). More precisely, CD63 is associated with Hermansky-Pudlak syndrome, a disease characterized by albinism and platelet storage pool deficiency (6).


1. Pols, M. S., & Klumperman, J. (2009). Trafficking and function of the tetraspanin CD63. Experimental cell research.

2. Metzelaar, M. J., Wijngaard, P. L., Peters, P. J., Sixma, J. J., Nieuwenhuis, H. K., & Clevers, H. C. (1991). CD63 antigen. A novel lysosomal membrane glycoprotein, cloned by a screening procedure for intracellular antigens in eukaryotic cells. The Journal of biological chemistry.

3. Horejsi, V., & Vlcek, C. (1991). Novel structurally distinct family of leucocyte surface glycoproteins including CD9, CD37, CD53 and CD63. FEBS letters.

4. Eckfeld, C., HauBler, D., Schoeps, B., Hermann, C. D., & Kruger, A. (2019). Functional disparities within the TIMP family in cancer: hints from molecular divergence. Cancer metastasis reviews.

5. Hoffmann, H. J., Santos, A. F., Mayorga, C., Nopp, A., Eberlein, B., Ferrer, M., Rouzaire, P., Ebo, D. G., Sabato, V., Sanz, M. L., Pecaric-Petkovic, T., Patil, S. U., Hausmann, O. V., Shreffler, W. G., Korosec, P., & Knol, E. F. (2015). The clinical utility of basophil activation testing in diagnosis and monitoring of allergic disease. Allergy.

6. Dell'Angelica, E. C., Shotelersuk, V., Aguilar, R. C., Gahl, W. A., & Bonifacino, J. S. (1999). Altered trafficking of lysosomal proteins in Hermansky-Pudlak syndrome due to mutations in the beta 3A subunit of the AP-3 adaptor. Molecular cell.

Alternate Names

CD63, Granulophysin, Lamp-3, ME491, OMA81H, Tspan30

Entrez Gene IDs

967 (Human)

Gene Symbol



Product Documents for CD63 Antibody (MEM-259) - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for CD63 Antibody (MEM-259) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.


FAQs for CD63 Antibody (MEM-259) - BSA Free

Showing  1 - 1 of 1 FAQ Showing All
  • Q: Hi, does this antibody work in western blots under reducing conditions? Thanks!

    A: In regards to your inquiry about our CD63 antibody, we do recommend running this antibody in a Western Blot under reducing conditions.

Showing  1 - 1 of 1 FAQ Showing All
