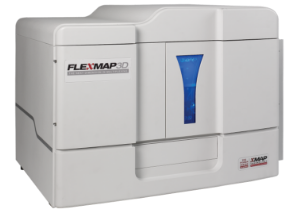

Luminex FLEXMAP 3D w/xPONENT 4.3
Advanced, versatile and high throughput
- Multiplexing: Up to 500 analytes in a single sample volume
- Dynamic Range (Typical): >4.5 logs
- Read Time: 96-well plate in < 20 min (up to 144,000 tests/hour); 384-well plate in<75 min (up to 153,600 tests/hour)
- Daily Start-Up/Shut-Down: < 30 min
|
FLEXMAP 3D ReagentsThe FLEXMAP 3D instrument requires sheath fluid to serve as the delivery medium to transport the beads to the instrument’s optics. This instrument has the option of a 20L disposable external sheath fluid container or a compact 20X sheath fluid concentrate pack; which can be reconstituted, with water, to a working volume of 20L when needed. The FLEXMAP 3D instrument is calibrated using a calibration and a verification kit, each providing 25 uses. |
Citations for Luminex FLEXMAP 3D w/xPONENT 4.3
View all citations for the Luminex Instrumentation platform.
Please visit our Instrument Citation Database to search our collection of scientific articles that feature our instruments.
More Information About Luminex FLEXMAP 3D w/xPONENT 4.3
FLEXMAP Quick Guide
FLEXMAP Quick Guide
Download and view FLEXMAP instrument and software quick guide for routine setup instructions. For detailed instructions refer to the instrument user manual or the Luminex Xponent software user manual.
| Part Number | FLEXMAP-3D-RUO |
|---|---|
| Sample Required | FLEXMAP 3D xPONENT 4.3 System |
| Core Instrument | FLEXMAP 3D flow based bead reader with: Sample probe-needle; Off plate reagent block; Waste container; Sample probe height adjustment tool; Barcode Scanner; Heater Block 96-well; Heater Block 386- well; Documentation |
| Available Power Cords (pick one nation) | USA, Australia, Brazil, Denmark, Germany, Sweden, France, Belgium, Spain, Switzerland, Israel, UK, Italy, Japan, India, China, S. Africa, Argentina, Korea, Taiwan, Pakistan |
| Included Software | xPONENT 4.3 (3 seats) Allele-call module (3 seats) Remote Web Monitoring module (3 seats) |
| Optional Software (extra charges apply) | LIS integration module Automation interface module Basic Security Module 21 CFR Part 11 Module (supersedes Basic Security) Additional seats |
| Reagents Included | F3D-CAL-K25, qty 1 (separately shipped) F3D-PVER-K25, qty 1 (separately shipped) Sheath Fluid (20L) qty 1 (Ships with FLEXMAP 3D) |
| PC with Win 7 32-bit, US English | PC, Desktop, USFF, WIN 7 with XPON 4.3 Dell OptiPlex 7010 “Ultra Small Form Factor” Dell Warranty Transfer Arm Mounted ELO 19” Touch Screen Monitor AX2010 USB Stereo Speaker System Keyboard & Mouse |
