Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2, CF

Catalog # 10711-GT | R&D Systems, Inc. a Bio-Techne Brand
Catalog #
Size / Price

Key Product Details



Accession #




Enzyme Activity

Product Specifications


Human embryonic kidney cell, HEK293-derived human N-Acetylglucosaminyltransferase 2/MGAT2 protein
Asn34-Gln447, with N-terminal HA tag


>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Tyr of HA tag

Predicted Molecular Mass

48.7 kDa


46-54 kDa, under reducing conditions.


Measured by its ability to modify the glycan Cy5-labeled M1N1f and thereby creating a band shift.
Able to convert >50% of the substrate glycan M1N1f to the product glycan, as measured under the described conditions.

Scientific Data Images for Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2, CF

Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2 Protein Enzyme Activity Diagram.

MGAT2 (Catalog # 10711-GT) recognizes an unmodified GlcNAc residue installed by MGAT1 (8334-GT) in the alpha3 arm of the trimannose core of N-glycans and transfers a second GlcNAc residue to the alpha6 arm of the structure to generate product glycan M2. MGAT2 can tolerate core-6 fucose and its Cy5 derivatives.

Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2 Protein SDS-PAGE

1 μg/lane of Recombinant Human MGAT2 His-tag (Catalog # 10711-GT) was resolved with SDS-PAGE under reducing (R) conditions and visualized by silver staining, showing bands at 46-54 kDa.

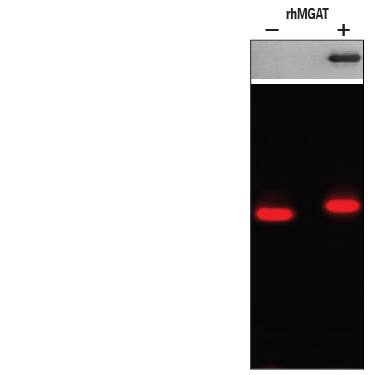

Fluorescent gel mobility shift caused by rhMGAT2.

Lane 1 contained substrate glycan M1N1f' (GL302). In the presence of rhMGAT2, the glycan was modified and a mobility shift was observed.

Formulation, Preparation and Storage

Formulation Supplied as a 0.2 μm filtered solution in Tris and NaCl.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: N-Acetylglucosaminyltransferase 2/MGAT2

Mannosylglycoprotein N-acetyl-glucosaminyltransferase 2 (MGAT2) is a key enzyme for the synthesis of complex type N-glycan. It specifically recognizes an unmodified GlcNAc residue installed by MGAT1 in the alpha3 arm of the trimannosy core of N-glycans and transfers a second GlcNAc residue to the alpha6 arm of the structure, thereby initiating the conversion of oligomannose type N-glycan to the complex type N-glycan (1-3). MGAT2 is a Golgi resident type II membrane protein with a typical domain structure of glycosyltransferases, containing a short N-terminal cytoplasmic domain, a hydrophobic non-cleavable signal-anchor domain, and a C-terminal catalytic domain (4). MGAT2 Mutations lead to type II carbohydrate-deficient glycoprotein syndrome (5) and abnormal brain development (6). Additionally, MGAT2 maybe involved in glycoantigen presentation and T cell activation (7). The activity of recombinant MGAT2 is demonstrated in an electrophoretic gel mobility shift assay using a fluorophore-labeled core N-glycan as the substrate.


  1. Moremen, K.W. and Haltiwanger, R.S. (2019) Nat. Chem. Biol. 15:853.
  2. Kadirvelraj, R. et al. (2018) Proc. Natl. Acad. Sci. USA 115:4637.
  3. Schachter, H. (1986). Biochem. Cell Biol. 64:163.
  4. Paulson, J.C. and Colley, K.J. (1989). J. Biol. Chem. 264:17615.
  5. Wang, Y. et al. (2001) Glycobiology 11:1051.
  6. Tan, J. et al. (1996) Am. J. Hum. Genet. 59:810.
  7. Ryan, S.O. et al. 2014 Glycobiology 24:262.

Long Name

Mannosyl (alpha-1,6-)-glycoprotein beta-1,2-N-acetylglucosaminyltransferase

Alternate Names


Entrez Gene IDs

4247 (Human); 217664 (Mouse)

Gene Symbol



Product Documents for Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human N-Acetylglucosaminyltransferase2/MGAT2, CF

For research use only
