Recombinant Human B7-H3 His-tag Avi-tag Protein, CF

Bio-Techne includes R&D Systems | Catalog # AVI2318

Biotinylated long-form B7-H3 (4Ig)/B7-H3b
Catalog #
Availability
Size / Price
Qty
Loading...
AVI2318-050

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

HEK293

Accession #

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human B7-H3 protein
Human B7-H3
(Leu29-Thr461)
Accession # Q5ZPR3-1
HHHHHH  Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

N-terminal Sequence Analysis

Leu29

Predicted Molecular Mass

49 kDa

SDS-PAGE

70-90 kDa, under reducing conditions

Activity

Measured in a cell proliferation assay using mouse CD4+ cells in the presence of anti-CD3.
The ED50 for this effect is 3-12 μg/mL.

Measured by its binding ability in a functional ELISA.
When Human B7-H3 Antibody (Catalog # AF1027) is immobilized at 1.0 μg/mL, 100 μL/well, the concentration of Biotinylated Recombinant Human B7‑H3 His-tag Avi-tag (Catalog # AVI2318) that produces 50% of the optimal binding response is approximately 3 -15 ng/mL.

Scientific Data Images for Recombinant Human B7-H3 His-tag Avi-tag Protein, CF

Recombinant Human B7-H3 His-tag Avi-tag Protein Binding Activity

Recombinant Human B7-H3 His-tag Avi-tag Protein Binding Activity

When Human B7-H3 Antibody (Catalog # AF1027) is immobilized at 1.0 µg/mL, 100 µL/well, the concentration of Biotinylated Recombinant Human B7-H3 His-tag Avi-tag (Catalog # AVI2318) that produces 50% of the optimal binding response is approximately 3-15 ng/mL.

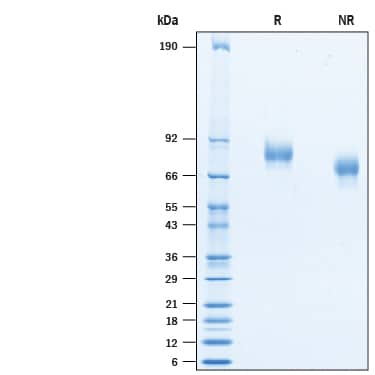

Recombinant Human B7-H3 His-tag Avi-tag Protein SDS-PAGE

Recombinant Human B7-H3 His-tag Avi-tag Protein SDS-PAGE

2 μg/lane of Recombinant Human B7-H3 His-tag Avi-tag (Catalog # AVI2318) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 70-90 kDa.

Formulation, Preparation and Storage

AVI2318
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 200 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: B7-H3

Human B7 homolog 3 (B7-H3) is a member of the B7 family of immune proteins that provide signals for the regulation of immune responses (1 - 3). Other family members include B7-1, B7-2, B7-H1/PD-L1, B7-H2, and PD-L2. B7 family proteins are type I transmembrane immunoglobulin (Ig) superfamily members that contain extracellular Ig V‑like and Ig C‑like domains with a short cytoplasmic tail. Among the family members there is about 20 - 40% amino acid (aa) sequence identity. B7-H3 was initially reported to be a 316 aa type I transmembrane precursor protein that contained a signal sequence, an extracellular region with one V‑type and one C‑type Ig domain, a transmembrane segment and a short cytoplasmic tail (1). Subsequent studies have identified a second 110 kDa form whose precursor is 534 aa in length. Termed 4IgB7-H3 or B7-H3b, this molecule has two additional Ig-like domains (one V‑type and one C‑type) and shows a ubiquituous expression pattern (4, 5). It would appear that the human 4Ig form is the principal, if not the only form of B7-H3 (5). Its precursor contains a 26 aa signal sequence, a 435 aa extracellular region, a 31 aa transmembrane domain, and a 42 aa cytoplasmic tail. The four Ig-like domains alternate between V‑type and C‑type, and apparently are the consequence of a V‑C type tandem duplication (4, 5). B7-H3b is expressed on dendritic cells as well as activated T, B and NK cells (5). The mouse gene differs from that of human in that it cannot code for four Ig-like domains; only a V‑type:C‑type pair (4). Human B7-H3b binding to an undefined receptor has shown to be inhibitory to NK cells and cytokine release (6). It also seems to be required for late stage osteoblast differentiation (7).

References

  1. Chapoval, A.I. et al. (2001) Nat. Immunol. 2:269.
  2. Sharpe, A.H. and G.J. Freeman (2002) Nat. Rev. Immunol. 2:116.
  3. Coyle, A. and J.Gutierrez-Ramos (2001) Nat. Immunol. 2:203.
  4. Sun, M. et al. (2002) J. Immunol. 168:6294.
  5. Steinberger, P. et al. (2004) J. Immunol. 172:2352.
  6. Prasad, D.V.R. et al. (2004) J. Immunol. 173:2500.
  7. Suh, W-K. et al. (2004) Proc. Natl. Acad. Sci. USA 101:12969.

Long Name

B7 Homolog 3

Alternate Names

B7H3, CD276

Entrez Gene IDs

80381 (Human); 102657 (Mouse); 315716 (Rat); 102131295 (Cynomolgus Monkey)

Gene Symbol

CD276

UniProt

Additional B7-H3 Products

Product Documents for Recombinant Human B7-H3 His-tag Avi-tag Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human B7-H3 His-tag Avi-tag Protein, CF

For research use only
