GDP-Cy3-Fucose
R&D Systems, part of Bio-Techne | Catalog # ES401
Key Product Details
Key Benefits
Learn more about Fluorescent Glycan Labeling and Detection
Species
Multi-Species
Conjugate
Cy3
Product Summary for GDP-Cy3-Fucose
|
Formula |
C51H79N11O25P2S3 |
|
Molecular Weight |
1404.37 |
|
Formulation |
Lyophilized with Tris, pH 8.0 |
|
Stability & Storage |
Store the unopened product at < -20 °C. Good for 12 months from date of receipt. |
Applications
- Fluorescent labeling with Cy3 of free glycans as well as glycoproteins and glycolipids.
- Fluorescent detection of specific glycan epitopes on glycoproteins as well as cell surface.
- Quantitation of fucosylation level of specific glycans.
- Together with CMP-Cy5-Sialic Acid, allows dual labeling and detection of sialoglycans.
Key Features and Benefits:
- Excitation at 550 nm and emission at 570 nm, exhibits green fluorescent light under microscope.
- The fluorescent dye is conjugated to the C6 position of the fucose.
- Can be directly introduced into glycoproteins and glycolipids via various fucosyltransferases.
- Can be introduced to live cells for glycan imaging.
- Have minimum side-effect on target molecules.
- Very convenient and user-friendly.
For Details:
Wu et al., (2019) Glycobiology 29: 750-754.
Wu et al., (2020) Glycobiology 30:454-462.
Wu, ZL. et al., (2020) Glycobiology 30:970.
Related Reagents
Click Chemistry
- CMP-Cy3-Sialic Acid (ES402)
- GDP-Cy5-Fucose (ES301)
- CMP-Cy5-Siaic Acid (ES302)
- GDP-Azido-Fucose (ES101)
- CMP-Azido-Sialic Acid (ES102)
- UDP-Azido-GalNAc (ES103)
- UDP-Azido-GlcNAc (ES104)
- CMP-C9-Biotin-Sialic Acid (ES201)
Enzymes and detection reagents
- Various fucosyltransferases
- Various neuraminidase
Data Examples
|

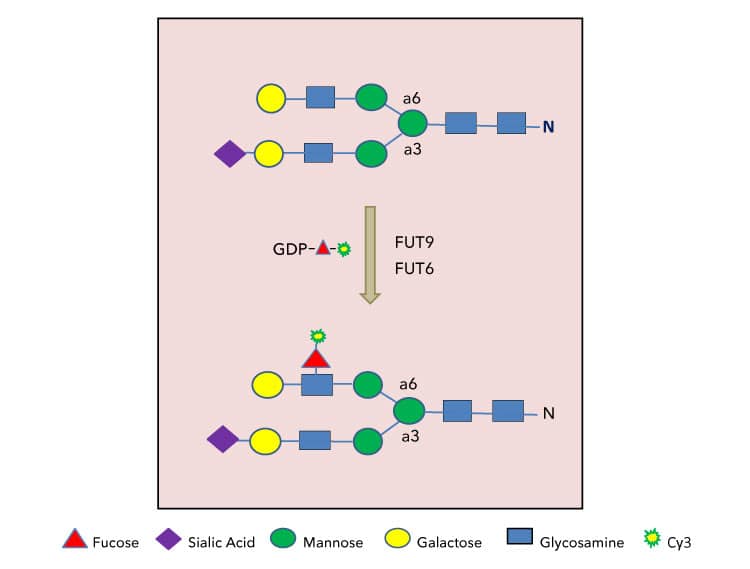

Strategies for substrate glycan labeling with GDP-Cy3-Fucose. Only terminal lactosamine structure on N-glycans are depicted here for FUT6 or FUT9 labeling. Substrate glycans for other fucosyltransferases can be labeled under the same principle. |
|
Labeling bovine fetuin (Fet) using GDP-Cy3-Fucose. Bovine fetuin was purified from crude fetuin by gel filtration. Samples of fetuin were labeled with Recombinant Human Fucosyltransferase 9/FUT9 Protein (Catalog # 9347-GT). In control lanes, no fetuin was present, revealing the self-labeling of FUT9 itself. Each lane contained 1 μg of fetuin except the controls. Samples were not labeled in the absence of neuraminidase but labeled strongly on asialo-fetuin (aFet) (generated by addition of Recombinant C. perfringens Neuraminidase Protein (Catalog # 5080-NM), Samples were separated on 4-20% gradient SDS-PAGE and imaged with TCE staining (top panel) and a fluorescent imager (lower panel). The bands of fetuin corresponding to the neuraminidase treated samples appear to be darker than those of without neuraminidase treatment because of the incorporation of Cy3. |
|
Cellular glycan imaging with GDP-Cy3-Fucose. HeLa cells were stained by incorporation GDP-Cy3-Fucose (Catalog # ES401) by Recombinant Human Fucosyltransferase 9/FUT9 Protein (Catalog # 9347-GT) (green) . Hela cells on a 96 well plate were briefly treated with Recombinant C. perfringens Neuraminidase Protein (Catalog # 5080-NM) to remove preexisting sialic acids. The treated cells were then labeled by FUT9 in the presence of GDP-Cy3-Fucose for 30 minutes. After the labeling, the solution was quickly removed by aspiration and washing two times with PBS. Afterwards, the cells were fixed and stained with DAPI (red) in the presence of 0.5% Triton X 100 to reveal the cell nuclei. These images show that N-glycans on HeLa cells display differential expression. For details on cell imaging with fluorophore-conjugated sugars, please refer to Wu. L. et al., (2020) Glycobiology 30:454-462. |
Table 1. Guideline for using CMP-Cy5-Sialic Acid for sialoglycan labeling and detection
| Sialyltransferase | Catalog # | Substrate | GDP-Cy3-Fucose Tolerance |
|---|---|---|---|
| FUT1 | Terminal Gal in H antigen | Not determined | |
| FUT2 | 7770-GT | Terminal Gal in H antigen | yes |
| FUT3 | 4950-GT | GlcNAc in type 1 glycan chain | yes |
| FUT4 | GlcNAc in terminal lactosamine | yes | |
| FUT5 | 4949-GT | GlcNAc in terminal lactosamine | yes |
| FUT6 | GlcNAc in terminal lactosamine | yes | |
| FUT7 | 6409-GT | GlcNAc in sialylated lactosamine | yes |
| FUT8 | 5768-GT | Core GlcNAc in N-glycans | yes |
| FUT9 | 9347-GT | GlcNAc in non-sialylated lactosamine | yes |
| FUT10 | Unknown | unknown | |
| FUT11 | 5964-GT | Unknown | unknown |
| POFUT1 | 7409-GT | Notch receptor | Not determined |
Formulation, Preparation, and Storage
Shipping
The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at -20 to -70 °C. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. Do not use past expiration date.
Product Documents for GDP-Cy3-Fucose
Product Specific Notices for GDP-Cy3-Fucose
For research use only
