CEACAM-8 was detected in immersion fixed paraffin-embedded sections of human colon cancer using Mouse Anti-Human CEACAM-8, Monoclonal Antibody (Catalog #MAB4246) at 1ug/mL at 37° Celsius for 4 minutes. Before incubation with the primary antibody, tissue underwent an all-in-one dewaxing and antigen retrieval preprocessing using PreTreatment Module (PT Module)and Dewax and HIER Buffer H (pH 9; Epredia Catalog #TA-999-DHBH). Tissue was stained using the Alexa Fluor™ 647 Goat anti-Mouse IgG Secondary Antibody at 1:200 at 37 ° Celsius for 2 minutes. (Yellow; Lunaphore Catalog # DR647MS) and counterstained with DAPI (blue; Lunaphore Catalog # DR100). Specific staining was localized to the membrane. Protocol available in COMET™ Panel Builder.

Detection of CEACAM-8 in Human Hodgkin Lymphoma via seqIF™ staining on COMET™

CEACAM-8 was detected in immersion fixed paraffin-embedded sections of human Hodgkin Lymphoma using Mouse Anti-Human CEACAM-8, Monoclonal Antibody (Catalog #MAB4246) at 1ug/mL at 37° Celsius for 4 minutes. Before incubation with the primary antibody, tissue underwent an all-in-one dewaxing and antigen retrieval preprocessing using PreTreatment Module (PT Module)and Dewax and HIER Buffer H (pH 9; Epredia Catalog #TA-999-DHBH). Tissue was stained using the Alexa Fluor™ 647 Goat anti-Mouse IgG Secondary Antibody at 1:200 at 37 ° Celsius for 2 minutes. (Yellow; Lunaphore Catalog # DR647MS) and counterstained with DAPI (blue; Lunaphore Catalog # DR100). Specific staining was localized to the membrane. Protocol available in COMET™ Panel Builder.

Detection of CEACAM-8 in Human Tonsil via seqIF™ staining on COMET™

CEACAM-8 was detected in immersion fixed paraffin-embedded sections of human tonsil using Mouse Anti-Human CEACAM-8, Monoclonal Antibody (Catalog #MAB4246) at 1ug/mL at 37° Celsius for 4 minutes. Before incubation with the primary antibody, tissue underwent an all-in-one dewaxing and antigen retrieval preprocessing using PreTreatment Module (PT Module) and Dewax and HIER Buffer H (pH 9; Epredia Catalog #TA-999-DHBH). Tissue was stained using the Alexa Fluor™ 647 Goat anti-Mouse IgG Secondary Antibody at 1:200 at 37 ° Celsius for 2 minutes. (Yellow; Lunaphore Catalog # DR647MS) and counterstained with DAPI (blue; Lunaphore Catalog # DR100). Specific staining was localized to the membrane. Protocol available in COMET™ Panel Builder.

Detection of Human CEACAM‑8/CD66b by Western Blot.

Western blot shows lysates of human peripheral blood mononuclear cells (PBMC) and human peripheral blood granulocytes. PVDF membrane was probed with 2 µg/mL of Mouse Anti-Human CEACAM-8/CD66b Monoclonal Antibody (Catalog # MAB4246) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for CEACAM-8/CD66b at approximately 100 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

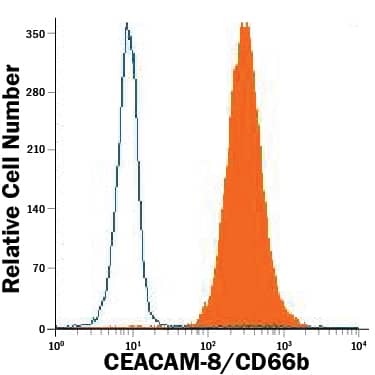

Detection of CEACAM‑8/CD66b in Human Blood Granulocytes by Flow Cytometry.

Human peripheral blood granulocytes were stained with Mouse Anti-Human CEACAM-8/CD66b Monoclonal Antibody (Catalog # MAB4246, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).

Detection of CEACAM-8/CD66b in Human Spleen.

CEACAM-8/CD66b was detected in immersion fixed paraffin-embedded sections of human spleen using Mouse Anti-Human CEACAM-8/CD66b Monoclonal Antibody (Catalog # MAB4246) at 0.5 µg/ml for 1 hour at room temperature followed by incubation with the Anti-Mouse IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC001). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using VisUCyte Antigen Retrieval Reagent-Basic (Catalog # VCTS021). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to the cell surface. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

View 3 more images

Applications for Human CEACAM-8/CD66b Antibody

Application

Recommended Usage

COMET

1 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human Colon Cancer, Hodgkin Lymphoma and Tonsil

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: Human peripheral blood granulocytes

Immunohistochemistry

0.5-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human spleen

Western Blot

2 µg/mL
Sample: Human peripheral blood mononuclear cells (PBMC) and human peripheral blood granulocytes

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CEACAM-8/CD66b

CEACAM-8 (Carcinoembryonic Antigen-related Cell Adhesion Molecule 8), also known as CD66b, CD67 and NCA-95, is a 90 kDa member of the CEACAM subfamily of the CEA family of proteins. It is expressed by neutrophils and eosinophils, and serves as a binding partner for CEACAM-6 and Galectin-3. Mature human
CEACAM-8 is a 287 amino acid GPI-linked glycoprotein. It contains one V-type and two C2-type Ig-like domains. No definitive rodent CEACAM-8 has been reported.

Long Name

Carcinoembryonic Antigen-related Cell Adhesion Molecule 8

Alternate Names

CD66b, CD67, CEACAM8, CGM6, NCA-95

Entrez Gene IDs

1088 (Human); 102138843 (Cynomolgus Monkey)

Gene Symbol

CEACAM8

UniProt

P31997
