Key Product Details

Species Reactivity

Human

Applications

ELISA

Label

CoraFluor 1

Antibody Source

Monoclonal Mouse IgG1 Clone # 1036426

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

View all B7-2/CD86 Antibodies »

Product Specifications

Immunogen

Human embryonic kidney cell HEK293-derived human B7-2/CD86
Leu26-Pro247
Accession # NP_787058

Specificity

Detects human B7-2/CD86 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Description

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(TM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

CoraFluor(TM) 1, amine reactive

CoraFluor(TM) 1, thiol reactive

For more information, please see our CoraFluor(TM) TR-FRET technology flyer.

Scientific Data Images for B7-2/CD86 Antibody (1036426) [CoraFluor™ 1]

B7-2/CD86 Antibody (1036426) [CoraFluor™ 1]

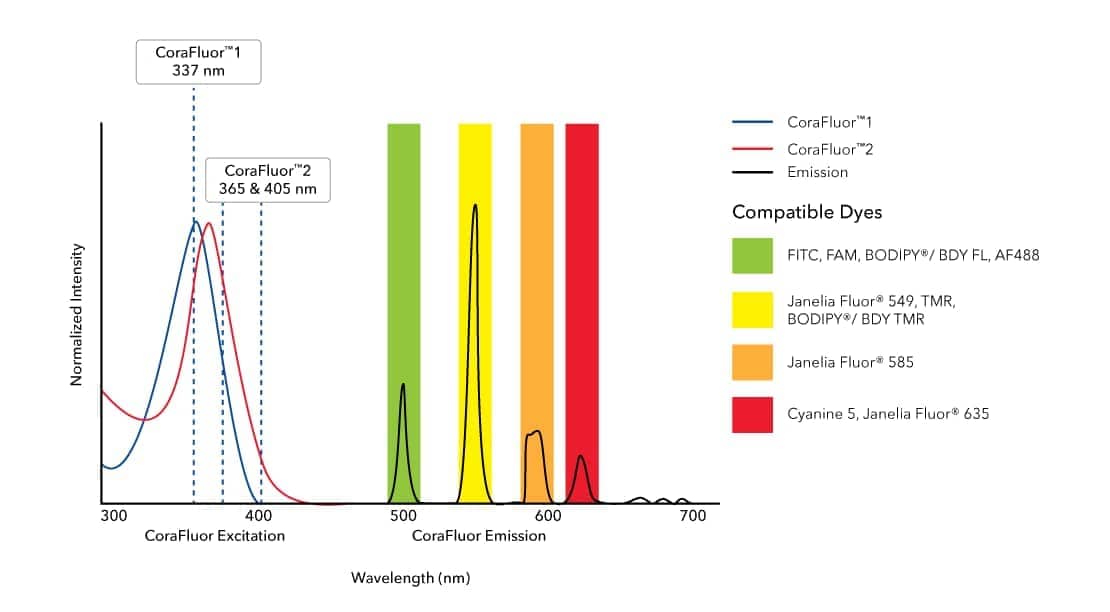

Product Feature: CoraFluor Probes for TR-FRET

CoraFluor™ 1, amine reactive (Catalog:7920) and CoraFluor™ 2, amine reactive (Catalog # 7950) are terbium-based probes that have been developed for use as TR-FRET donors. They emit wavelengths compatible with commonly used fluorescent acceptor dyes such as BODIPY® (or BDY) and Janelia Fluor® dyes, FITC (Catalog # 5440), TMR and Cyanine 5 (Catalog # 5436). CoraFluor™ fluorescence is brighter and more stable in biological media than existing TR-FRET donors, leading to enhanced sensitivity and improved data generation. CoraFluor™ 1 exhibits excitation upon exposure to a 337 nm UV laser.

Applications for B7-2/CD86 Antibody (1036426) [CoraFluor™ 1]

Application
Recommended Usage

ELISA

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: B7-2/CD86

B7-2, also referred to as CD86, is a glycosylated type 1 membrane protein that is a member of the immunoglobulin (Ig) superfamily (1). B7-2/CD86 is constitutively expressed on antigen presenting cells (APCs) such as dendritic cells (DCs), macrophages, and B cells and functions in controlling immune responses through either costimulatory or coinhibitory signals (1,2). Expression of B7-2 is upregulated by APCs upon activation and can be induced in T cells (1,3). The human B7-2 protein, encoded by the CD86 gene, is 329 amino acids (aa) in length with a theoretical molecular weight (MW) of 37.6 kDa (4). The B7-2 protein contains characteristic Ig variable-like (IgV) and constant-like (IgC) domains within its extracellular region (1,3). B7-2/CD86 has structural similarity and shares ~25% sequence homology with another B7 family molecule, B7-1/CD80 (3,5). Both B7-1 and B7-2 are ligands for the activating receptor CD28 and the regulatory receptor cytotoxic T-lymphocyte antigen 4 (CTLA-4) which are expressed on subsets of T cells (1-3,5-7). However, B7-1 and B7-2 bind to CTLA-4 with higher affinity than CD28 (3,5,6). B7-2/CD86 binding to CD28 results in costimulatory signals to promote T cell activation, proliferation, and cytokine production (1-3. 5-7). Binding to CTLA-4 initiates coinhibitory signaling to attenuate the pro-inflammatory T cell response, while also promoting the suppressive function of regulatory T (Treg) cells through expression of indoleamine 2,3-deoxygenase (IDO) (1-3,6,7). Molecules involved in T cell co-signaling have become considerable targets of interest for cancer immunotherapy (7). The anti-CTLA-4 monoclonal antibody ipilimumab, first approved for the treatment of metastatic melanoma, prevents B7-1/B7-2 molecules from binding to CTLA-4, thus driving B7-CD28 binding and promoting costimulatory signals and antitumor effects (1,7,8). Combination therapies targeting co-signaling molecules are currently under investigation to improve antitumor response for treatment of both melanoma and non-melanoma cancers (7,8).

References

1. Collins M, Ling V, Carreno BM. The B7 family of immune-regulatory ligands. Genome Biol. 2005;6(6):223. https://doi.org/10.1186/gb-2005-6-6-223

2. Greaves P, Gribben JG. The role of B7 family molecules in hematologic malignancy. Blood. 2013;121(5):734-744. https://doi.org/10.1182/blood-2012-10-385591

3. Bolandi N, Derakhshani A, Hemmat N, et al. The Positive and Negative Immunoregulatory Role of B7 Family: Promising Novel Targets in Gastric Cancer Treatment. Int J Mol Sci. 2021;22(19):10719. https://doi.org/10.3390/ijms221910719

4. Uniprot (P42081)

5. Bhatia S, Edidin M, Almo SC, Nathenson SG. B7-1 and B7-2: similar costimulatory ligands with different biochemical, oligomeric and signaling properties. Immunol Lett. 2006;104(1-2):70-75. https://doi.org/10.1016/j.imlet.2005.11.019

6. Ohue Y, Nishikawa H. Regulatory T (Treg) cells in cancer: Can Treg cells be a new therapeutic target?. Cancer Sci. 2019;110(7):2080-2089. https://doi.org/10.1111/cas.14069

7. Chen L, Flies DB. Molecular mechanisms of T cell co-stimulation and co-inhibition [published correction appears in Nat Rev Immunol. 2013 Jul;13(7):542]. Nat Rev Immunol. 2013;13(4):227-242. https://doi.org/1010.1038/nri3405

8. Karimi A, Alilou S, Mirzaei HR. Adverse Events Following Administration of Anti-CTLA4 Antibody Ipilimumab. Front Oncol. 2021;11:624780. https://doi.org/101010.3389/fonc.2021.624780

Alternate Names

B72, CD86

Additional B7-2/CD86 Products

Product Documents for B7-2/CD86 Antibody (1036426) [CoraFluor™ 1]

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for B7-2/CD86 Antibody (1036426) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
