Mouse/Rat PDX-1/IPF1 Antibody
R&D Systems, part of Bio-Techne | Catalog # AF2517
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Conjugate
Catalog #
Key Product Details
Species Reactivity
Validated:
Mouse, Rat
Cited:
Mouse, Rat
Applications
Validated:
Immunohistochemistry, Western Blot, Immunocytochemistry, Simple Western
Cited:
Immunohistochemistry, Western Blot, Immunocytochemistry
Label
Unconjugated
Antibody Source
Polyclonal Goat IgG
Product Specifications
Immunogen
E. coli-derived recombinant mouse PDX‑1/IPF1
Met1-Arg284
Accession # P52946
Met1-Arg284
Accession # P52946
Specificity
Detects mouse PDX‑1/IPF1 in direct ELISAs and Western blots.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Mouse/Rat PDX-1/IPF1 Antibody
Detection of Mouse/Rat PDX-1/IPF1 by Western Blot.
Western blot shows lysates of betaTC-6 mouse beta cell insulinoma cell line. PVDF membrane was probed with 1 µg/mL of Goat Anti-Mouse/Rat PDX-1/IPF1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2517) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for PDX-1/IPF1 at approximately 45 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.
PDX‑1/IPF1 in betaTC‑6 Mouse Cell Line.
PDX-1/IPF1 was detected in immersion fixed betaTC-6 mouse beta cell insulinoma cell line using Goat Anti-Mouse/Rat PDX-1/IPF1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2517) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to the nucleus. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

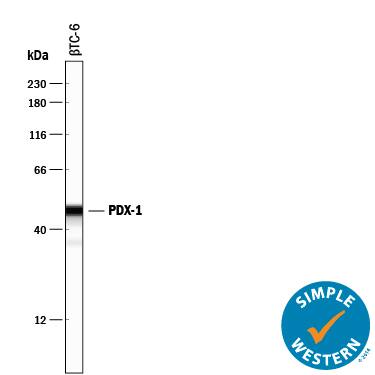

Detection of Mouse PDX-1/IPF1 by Simple WesternTM.
Simple Western lane view shows lysates of betaTC-6 mouse beta cell insulinoma cell line, loaded at 0.2 mg/mL. A specific band was detected for PDX-1/IPF1 at approximately 48 kDa (as indicated) using 10 µg/mL of Goat Anti-Mouse/Rat PDX-1/IPF1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2517) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Mouse/Rat PDX-1/IPF1 Antibody
Application
Recommended Usage
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed beta TC-6 mouse beta cell insulinoma cell line
Sample: Immersion fixed beta TC-6 mouse beta cell insulinoma cell line
Immunohistochemistry
5-15 µg/mL
Sample: Perfusion fixed frozen sections of mouse pancreas
Sample: Perfusion fixed frozen sections of mouse pancreas
Simple Western
10 µg/mL
Sample: betaTC‑6 mouse beta cell insulinoma cell line
Sample: betaTC‑6 mouse beta cell insulinoma cell line
Western Blot
1 µg/mL
Sample: betaTC-6 mouse beta cell insulinoma cell line
Sample: betaTC-6 mouse beta cell insulinoma cell line
Reviewed Applications
Read 1 review rated 3 using AF2517 in the following applications:
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: PDX-1/IPF1
Long Name
Pancreas/Duodenum Homeobox-1
Alternate Names
IDX1, IPF1
Gene Symbol
PDX1
UniProt
Additional PDX-1/IPF1 Products
Product Documents for Mouse/Rat PDX-1/IPF1 Antibody
Product Specific Notices for Mouse/Rat PDX-1/IPF1 Antibody
For research use only
