Mouse LAMP-1/CD107a Lumenal Domain Antibody
R&D Systems, part of Bio-Techne | Catalog # AF4320
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Conjugate
Catalog #
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Human, Mouse, Transgenic Mouse
Applications
Validated:
Western Blot, Intracellular Staining by Flow Cytometry, Immunocytochemistry, CyTOF-ready
Cited:
Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry
Label
Unconjugated
Antibody Source
Polyclonal Goat IgG
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse LAMP1/CD107a
Leu25-Asn370
Accession # P11438
Leu25-Asn370
Accession # P11438
Specificity
Detects mouse LAMP1/CD107a Lumenal Domain in direct ELISAs and Western blots. In direct ELISAs, less than 10% cross‑reactivity with recombinant human LAMP1 is observed.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Mouse LAMP-1/CD107a Lumenal Domain Antibody
Detection of Mouse LAMP‑1/CD107a by Western Blot.
Western blot shows lysates of mouse small intestine tissue and NIH-3T3 mouse embryonic fibroblast cell line. PVDF membrane was probed with 0.2 µg/mL of Goat Anti-Mouse LAMP-1/CD107a Lumenal Domain Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4320) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for LAMP-1/CD107a at approximately 100-120 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

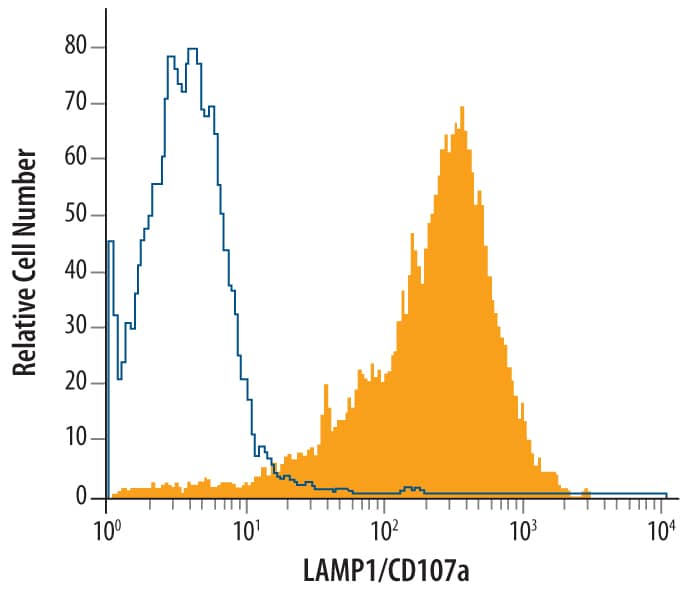

Detection of LAMP-1 in RAW 264.7 Mouse Cell Line by Flow Cytometry.
RAW 264.7 mouse monocyte/macrophage cell line was stained with Goat Anti-Mouse LAMP1/CD107a Lumenal Domain Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4320, filled histogram) or control antibody (Catalog # AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.
LAMP1/CD107a in RAW 264.7 Mouse Cell Line.
LAMP1/CD107a was detected in immersion fixed RAW 264.7 mouse monocyte/macrophage cell line using Goat Anti-Mouse LAMP1/CD107a Lumenal Domain Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4320) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.Applications for Mouse LAMP-1/CD107a Lumenal Domain Antibody
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed RAW 264.7 mouse monocyte/macrophage cell line
Sample: Immersion fixed RAW 264.7 mouse monocyte/macrophage cell line
Intracellular Staining by Flow Cytometry
0.25 µg/106 cells
Sample: RAW 264.7 mouse monocyte/macrophage cell line fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Sample: RAW 264.7 mouse monocyte/macrophage cell line fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Western Blot
0.2 µg/mL
Sample: Mouse small intestine tissue and NIH‑3T3 mouse embryonic fibroblast cell line
Sample: Mouse small intestine tissue and NIH‑3T3 mouse embryonic fibroblast cell line
Reviewed Applications
Read 2 reviews rated 5 using AF4320 in the following applications:
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: LAMP-1/CD107a
LAMP-1 (lysosome-associated membrane glycoprotein 1; also P2B and CD107a) is a 120 kDa member of the LAMP family of proteins. It is a highly glycosylated type I transmembrane protein whose N-terminus projects either extracellularly or into the lumen of lysosomes. LAMP-1 may protect lysosomal membranes from enzymatic attack or mediate fusion of phagosomes with lysosomes. Mature mouse LAMP1 is 382 amino acids (aa) in length. It contains a 346 aa lumenal domain (aa 25‑370) and a 12 aa cytoplasmic region. Over aa 25‑370, mouse LAMP1 shares 82% and 62% aa identity with rat and human LAMP1, respectively.
Long Name
Lysosome-associated Membrane Glycoprotein 1
Alternate Names
CD107a, LAMP1
Gene Symbol
LAMP1
UniProt
Additional LAMP-1/CD107a Products
Product Documents for Mouse LAMP-1/CD107a Lumenal Domain Antibody
Product Specific Notices for Mouse LAMP-1/CD107a Lumenal Domain Antibody
For research use only
