NAIA
Tocris Bioscience, part of Bio-Techne | Catalog # 8910
Broad spectrum cysteine reactive probe; suitable for live-cell applications
Key Product Details
Description
Broad spectrum cysteine reactive probe; suitable for live-cell applications
Alternative Names
N-Acryloylindole-alkyne,NAIA-5
Product Description
NAIA (N-Acryloylindole-alkyne) is a broad-spectrum cysteine reactive probe enabling cysteine profiling and imaging. It covalently binds cysteine residues in proteins. Displays faster reaction kinetics with CYS (k > 102 M-1 s-1) and targets an expanded pool of ligandable cysteines and proteins compared to IA-Alkyne (Cat. No. 7015). Also shows higher stability and selectivity for CYS over SER and LYS than IA-Alkyne (Cat. No. 7015). NAIA is used in chemoproteomics experiments as a click-chemistry handle to attach a fluorophore or biotin to reactive cysteines in proteins for visualization by in-gel fluorescence or identification by mass spectrometry, respectively. Can also be used to image oxidized cysteines in cells under oxidative stress by confocal fluorescence microscopy. Cell-permeable and non-cytotoxic, NAIA is suitable for live-cell experiments.Scientific Data Images for NAIA
Application of NAIA.
HepG2 cells were incubated with NAIA (10 µM) in complete medium for 60 min. The cells were then washed with PBS, fixed by 4% paraformaldehyde, permeabilized, and reacted with azide-fluor 545 (20 µM) by CuAAC reaction at room temperature in the dark for 1 h. The stained cells were washed with PBS and further incubated with Hoechst (8.2 µM) for 15 min. The cells were then washed with PBS and imaged by confocal fluorescence microscopy.

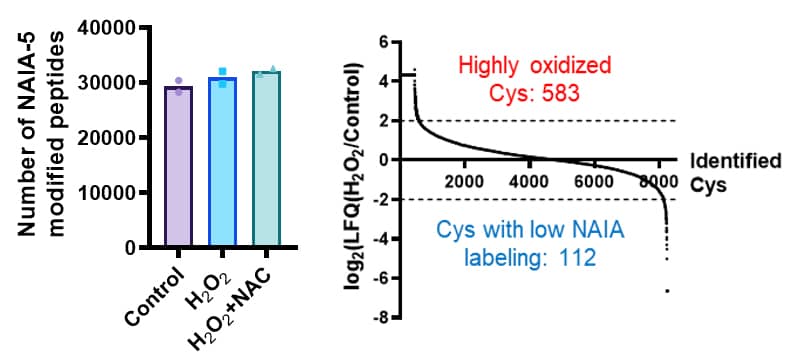

Application for NAIA .
HepG2 cells were treated with solvent vehicle, H2O2 (1 mM) or H2O2 (1 mM) + NAC (5 mM) in a serum-free medium for 15 min at 37 °C. The cells were then incubated with NAI (50 µM; 10 min) to label-free thiols in live cells, followed by cell lysis and TCEP (1 mM) reduction for 1 h. After acetone precipitation at -20 °C overnight, the proteins were labeled by NAIA-5 (100 µM) in PBS. The samples were then prepared for MS and analyzed by LC-MS/MS.

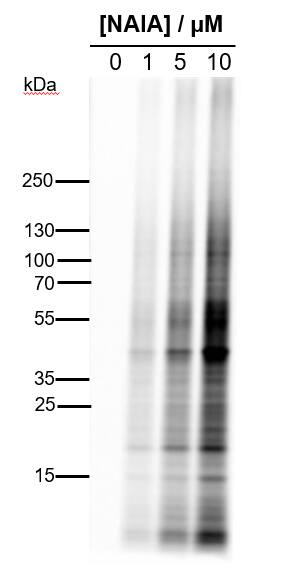

Application for NAIA in Gel-based ABPP experiment.
HepG2 cell lysates (100 µg) in PBS were incubated with NAIA for 60 min, followed by copper-catalyzed azide-alkyne cycloaddition reaction with azide-fluor 545 (25 µM). The protein mixtures were then boiled with sampling buffer, resolved by SDS-PAGE and imaged.Licensing Information
Sold under license from Versitech LimitedProduct Specifications
Molecular Weight
324.38
Formula
C19H20N2O3
Storage
Store at -20°C
Purity
≥95% (HPLC)
Chemical Name
N-5-Hexyn-1-yl-2-[[1-(1-oxo-2-propen-1-yl)-1H-indol-5-yl]oxy]acetamide
CAS Number
3020685-33-7
PubChem ID
171403789
InChI Key
STJKPWRTQBLLKC-UHFFFAOYSA-N
SMILES
O=C(C=C)N1C=CC=2C=C(OCC(=O)NCCCCC#C)C=CC21
The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.
Solubility
| Solvent | Max Conc. mg/mL | Max Conc. mM | |
|---|---|---|---|
| Solubility | |||
| DMSO | 32.44 | 100 |
Preparing Stock Solutions
for NAIA
The following data is based on the product molecular weight 324.38
Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which all affect the solvent volumes required to prepare stock solutions.
| Concentration / Solvent Volume / Mass | 1 mg | 5 mg | 10 mg |
|---|---|---|---|
| 1 mM | 3.08 mL | 15.41 mL | 30.83 mL |
| 5 mM | 0.62 mL | 3.08 mL | 6.17 mL |
| 10 mM | 0.31 mL | 1.54 mL | 3.08 mL |
| 50 mM | 0.06 mL | 0.31 mL | 0.62 mL |
Calculators
Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Background References
References are publications that support the biological activity of the product.
- Koo Activity-based protein profiling for functional cysteines and protein target identification Methods Mol.Biol. 2025 PMID: 40515999
- Koo N-Acryloylindole-alkyne (NAIA) enables imaging and profiling new ligandable cysteines and oxidized thiols by chemoproteomics. Nat.Commun. 2023 PMID: 37322008
Product Specific Notices for NAIA
For research use only
