4-1BB/TNFRSF9/CD137 Antibody - (Research Grade urelumab Biosimilar) - Low Endotoxin, Azide and BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-28248

Recombinant Monoclonal Antibody
Novus Biologicals, part of Bio-Techne

Key Product Details

Species Reactivity

Human

Applications

ELISA, Flow Cytometry, Functional

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Human IgG4 expressed in CHO

Format

Low Endotoxin, Azide and BSA Free

Concentration

LYOPH mg/ml

View all 4-1BB/TNFRSF9/CD137 Antibodies »

Product Specifications

Immunogen

TNFRSF9 / 4-1BB / CD137

Reactivity Notes

Predicted species reactivity: Cynomolgus

Clonality

Monoclonal

Host

Human

Isotype

IgG4

Endotoxin Level

0.001EU/ug,determined by LAL method.

Description

The heavy chain type is huIgG4SP, and the light chain type is hukappa. It has a predicted MW of 146.5 kDa.

Also known as 'urelumab'.

This product is shipped at ambient temperature. Upon receipt, store immediately at -20C or lower for 12 months in a lyophilized state. - 80C for 3 months after reconstitution. Avoid repeated freeze-thaw cycles.

Scientific Data Images

4-1BB/TNFRSF9/CD137 Antibody (urelumab)

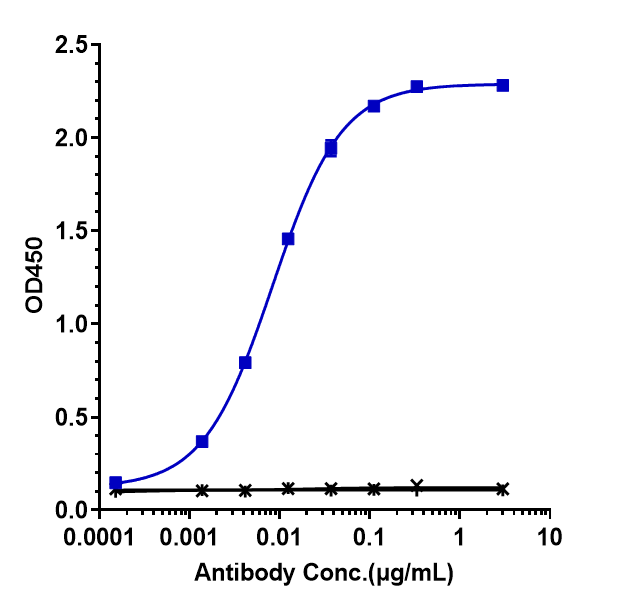

ELISA: 4-1BB/TNFRSF9/CD137 Antibody (urelumab)[NBP3-28248] -

Immobilized N His HSA TNFSF9/4 1BB at 2 ug/mL can bind 4-1BB/TNFRSF9/CD137 Antibody (urelumab), EC50=0.008304 ug/mL.
4-1BB/TNFRSF9/CD137 Antibody (urelumab)

Flow Cytometry: 4-1BB/TNFRSF9/CD137 Antibody (urelumab)[NBP3-28248] -

4-1BB-NF-kappa B-Jurkat cells were stained with 4-1BB/TNFRSF9/CD137 Antibody (urelumab) and negative control protein respectively, washed and then followed by PE and analyzed with FACS, EC50=0.012 ug/mL.

Applications

Application
Recommended Usage

ELISA

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Functional

Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A purified

Reconstitution

Reconstitute with sterile, distilled water to a final concentration of 1 mg/ml. Gently shake to solubilize completely. Do not vortex.

Formulation

Lyophilized from 25mM histidine, 8% sucrose, 0.01% Tween80 (pH6.2)

Format

Low Endotoxin, Azide and BSA Free

Preservative

No Preservative

Concentration

LYOPH mg/ml

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C in powder form. Store at -80C once reconstituted.

Background: 4-1BB/TNFRSF9/CD137

4-1BB, also called CD137 and tumor necrosis factor receptor superfamily member 9 (TNFRSF9), is a type I surface glycoprotein expressed on activated T cell and natural killer (NK) cells (1,2). Human 4-1BB protein is 255 amino acids (aa) in length with a theoretical molecular weight of 28 kDa. It contains an extracellular domain, a helical transmembrane domain, and a cytoplasmic/intracellular domain (3). 4-1BB/TNFRSF9/CD137 is a costimulatory receptor that binds the ligand 4-1BBL/CD137L which is primarily expressed on antigen presenting cells (APCs) such as dendritic cells (DCs), macrophages, and B cells (1,2,4,5). The 4-1BB receptor-ligand interaction results in recruitment of TNFR-associated factor (TRAF) family adaptor proteins to 4-1BB's cytoplasmic domain (1,2,4,5). TRAF1, TRAF2, and TRAF3 are found in various homodimer and/or heterodimer configurations. Their recruitment to 4-1BB/CD137 initiates signalosome formation as well as activation of the nuclear factor-kappa B (NF-kappaB) and mitogen-activated protein kinase (MAPK) signaling cascade (1,4,5). 4-1BB/TNFRSF9/CD137 stimulation leads to increased cellular cytotoxic activity and pro-inflammatory cytokine production (1,2,4). Given its role in immune cell activation, 4-1BB has become a promising target for cancer immunotherapy (1,2,4). Current approaches to target 4-1BB include agonistic monoclonal and bispecific anti-4-1BB antibodies and well as utilizing the cytoplasmic domain of 4-1BB in generating chimeric antigen receptors (CARs) (1,2,4). 4-1BB agonists in clinical trials include Urelumab and Utolimumab. Utolimumab also has ligand blocking properties whereas Urelumab does not (1,2,4). Anti-4-1BB monoclonal antibodies are being tested as monotherapy as well as combination therapy with either other immunostimulatory monoclonal antibodies or with checkpoint blockade antibodies like anti-PD-1 (1,2,4).

References

1. Etxeberria, I., Glez-Vaz, J., Teijeira, A., & Melero, I. (2020). New emerging targets in cancer immunotherapy: CD137/4-1BB costimulatory axis. ESMO open, 4(Suppl 3), e000733. https://doi.org/10.1136/esmoopen-2020-000733

2. Chester, C., Sanmamed, M. F., Wang, J., & Melero, I. (2018). Immunotherapy targeting 4-1BB: mechanistic rationale, clinical results, and future strategies. Blood, 131(1), 49-57. https://doi.org/10.1182/blood-2017-06-741041

3. Uniport (Q07011)

4. Chester, C., Ambulkar, S., & Kohrt, H. E. (2016). 4-1BB agonism: adding the accelerator to cancer immunotherapy. Cancer Immunology, Immunotherapy: CII, 65(10), 1243-1248. https://doi.org/10.1007/s00262-016-1829-2

5. Zapata, J. M., Perez-Chacon, G., Carr-Baena, P., Martinez-Forero, I., Azpilikueta, A., Otano, I., & Melero, I. (2018). CD137 (4-1BB) signalosome: complexity is a matter of TRAFs. Frontiers in Immunology, 9, 2618. https://doi.org/10.3389/fimmu.2018.02618

Alternate Names

41BB, CD137, ILA, TNFRSF9

Gene Symbol

TNFRSF9

UniProt

Q07011

Additional 4-1BB/TNFRSF9/CD137 Products

Product Documents

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
