Simple Plex Human alpha-Synuclein Cartridge

ProteinSimple, part of Bio-Techne | Catalog # SPCKC-PS-011989

Simple Plex Human alpha-Synuclein assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer. Sample type indicated with PS (Plasma/Serum).

Customize Your Simple Plex Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and add up to 8 analytes per cartridge.

Build My Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Cerebrospinal Fluid (10 µL)

Sensitivity

0.82 pg/mL

Assay Range

2.62-1600 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human alpha-Synuclein Cartridge Summary

Simple Plex assay for the detection of human alpha-Synuclein ( alpha-Synuclein) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all alpha-Synuclein Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Product Specifications

Reactivity

Human

Specificity

Natural and recombinant human alpha-Synuclein.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 54 54
Mean (pg/mL) 22.2 862 16.6 745
Standard Deviation 0.974 60.5 1.45 79.2
CV% 4.4 7.0 8.8 10.6

Recovery for Simple Plex Human alpha-Synuclein Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 115 115-116
Cerebrospinal Fluid (n=4) 115 109-118

Linearity

Samples containing and/or spiked with high concentrations of recombinant human alpha-Synuclein were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Human alpha-Synuclein Ella Assay

Scientific Data Images for Simple Plex Human alpha-Synuclein Cartridge

Human alpha-Synuclein Ella Assay

Human alpha-Synuclein Ella Assay Standard Curve

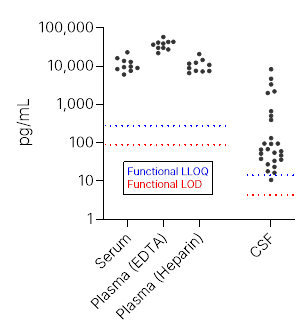

Human alpha-Synuclein Ella Assay

Human alpha-Synuclein Ella Assay Endogenous Levels

Functional LOD and functional LLOQ are calculated as the LOD and LLOQ of the assay multiplied by the minimum required dilution (MRD) for the sample type.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: alpha-Synuclein

The synuclein family includes alpha-Synuclein, beta-Synuclein, gamma-Synuclein, and synoretin. These small, highly conserved proteins are localized predominantly in the brain, concentrated in presynaptic nerve terminals. Alpha-Synuclein is normally a soluble protein. Abnormal alpha-synuclein forms filamentous inclusions (Lewy bodies and Lewy neurites) in several neurodegenerative diseases, including Parkinson's disease (PD), dementia with Lewy bodies, and Alzheimer's disease. Beta-Synuclein and gamma-Synuclein (synoretin) associate with alpha-synuclein and inhibit its aggregation.

Alternate Names

NACP, PARK1, PARK4, SNCA, Synuclein-alpha

Entrez Gene IDs

6622 (Human); 20617 (Mouse); 29219 (Rat); 641350 (Porcine); 282857 (Bovine)

Gene Symbol

SNCA

Additional alpha-Synuclein Products

Product Documents for Simple Plex Human alpha-Synuclein Cartridge

Loading product document information...

Loading product document information...

Certificate of Analysis

To download a Certificate of Analysis, please enter your Simple Plex catalog number and lot number in the search boxes below.

Product Specific Notices for Simple Plex Human alpha-Synuclein Cartridge

For research use only
