MAP2 Antibody (CL5420)

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-52055

Recombinant Monoclonal Antibody
Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP3-52055-100ul
NBP3-52055-25ul
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Species Reactivity

Human

Applications

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Mouse IgG1 Clone # CL5420

Concentration

1 mg/ml

View all MAP2 Antibodies »

Product Specifications

Immunogen

This antibody was developed using a recombinant protein derived from P11137, with the exact immunogen sequence remaining proprietary.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for MAP2 Antibody (CL5420)

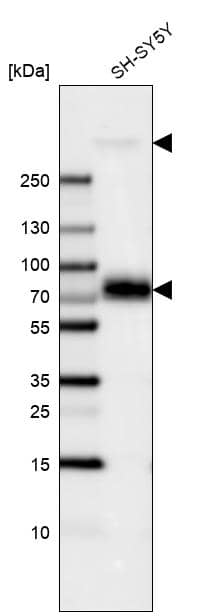

MAP2 Antibody (CL5420) Western Blot: MAP2 Antibody (CL5420) [NBP3-52055]

Western Blot: MAP2 Antibody (CL5420) [NBP3-52055]

Analysis in human cell line SH-SY5Y.
MAP2 Antibody (CL5420) Immunohistochemistry: MAP2 Antibody (CL5420) [NBP3-52055]

Immunohistochemistry: MAP2 Antibody (CL5420) [NBP3-52055]

Staining of human pancreas shows cytoplasmic immunoreactivity in pancreatic islets.
MAP2 Antibody (CL5420) Immunohistochemistry: MAP2 Antibody (CL5420) [NBP3-52055]

Immunohistochemistry: MAP2 Antibody (CL5420) [NBP3-52055]

Staining of human cerebral cortex shows cytoplasmic immunoreactivity in neurons, as well as positivity in neuropil.
View 3 more images

Applications for MAP2 Antibody (CL5420)

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

2-10 ug/ml

Immunohistochemistry

1:1000 - 1:2500

Immunohistochemistry-Paraffin

1:1000 - 1:2500

Western Blot

1 ug/ml
Application Notes
For IHC-Paraffin, HIER pH 6 retrieval is recommended. ICC/IF Fixation Permeabilization: Use PFA/Triton X-100.

Formulation, Preparation, and Storage

Purification

Protein A purified

Formulation

PBS, pH 7.2, 40% glycerol

Preservative

0.02% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: MAP2

Microtubule-associated protein 2 also known as MAP2 (theoretical molecular weight 280 kDa) belongs to the MAP2/Tau family which in addition to the two neuronal forms MAP2 and Tau also includes MAP4 (1). For MAP2, four different isoforms have been identified which are produced through alternative splicing including MAP2a, MAP2b, MAP2c and MAP2d (1). MAP2 isoforms contain multiple microtubule-binding domains located near the carboxy terminal, a variably sized amino-terminal projection domain, and a conserved protein kinase A binding domain. MAP2c and MAP2d isoforms have a shorter amino-terminal projection domain, lower molecular weight and are identifiable at ~70 kDa in SDS-PAGE analysis (2,3). MAP2's carboxy terminal domain supports interactions with microtubules, actin, and intermediate filaments (2).

MAP2 isoforms are developmentally regulated and differentially expressed in neurons and some glia. MAP2c is predominantly expressed in the developing brain while the other isoforms are expressed in the adult brain. The distribution of MAP2 isoforms also varies, with MAP2a and MAP2b predominantly localized to dendrites, while MAP2c is also found in axons. Lastly, the expression of MAP2d is not limited to neurons and may be found in glia, specifically oligodendrocytes (1, 2). MAP2 isoforms associate with microtubules and mediate their interaction with actin filaments thereby playing a critical role in organizing the microtubule-actin network. In neurons, MAP2 isoforms are implicated in different processes including neurite initiation, elongation and stabilization as well as axon and dendrite formation (2). Knockout of MAP expression in animal models results in a variety of functional and structural brain defects according to the isoform affected (e.g., reduced LTP and LTD, reduced myelination, absence of corpus collosum, motor system malfunction, abnormal hippocampal dendritic morphology, abnormal synaptic plasticity) (4).

References

1. Dehmelt, L., & Halpain, S. (2005). The MAP2/Tau family of microtubule-associated proteins. Genome Biology. https://doi.org/10.1186/gb-2004-6-1-204

2. Mohan, R., & John, A. (2015). Microtubule-associated proteins as direct crosslinkers of actin filaments and microtubules. IUBMB Life. https://doi.org/10.1002/iub.1384

3. Shafit-Zagardo, B., & Kalcheva, N. (1998). Making sense of the multiple MAP-2 transcripts and their role in the neuron. Molecular Neurobiology. https://doi.org/10.1007/BF02740642

4. Tortosa, E., Kapitein, L. C., & Hoogenraad, C. C. (2016). Microtubule organization and microtubule-associated proteins (MAPs). In Dendrites: Development and Disease. https://doi.org/10.1007/978-4-431-56050-0_3

Long Name

Microtubule-associated Protein 2

Alternate Names

DKFZp686I2148, MAP-2, MAP2A, MAP2B, MAP2C, Microtubule Associated Protein 2, microtubule-associated protein 2, MTAP2

Gene Symbol

MAP2

Additional MAP2 Products

Product Documents for MAP2 Antibody (CL5420)

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for MAP2 Antibody (CL5420)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
