CCL2/MCP1 Antibody - BSA Free

Immunocytochemistry/ Immunofluorescence: CCL2/MCP1 Antibody - BSA Free [NBP1-07035]

Immunocytochemistry/Immunofluorescence: CCL2/MCP1 Antibody [NBP1-07035] - MCP1 antibody was tested in HeLa cells with Dylight 488 (green). Nuclei and alpha-tubulin were counterstained with DAPI (blue) and Dylight 550 (red).

Immunohistochemistry-Paraffin: CCL2/MCP1 Antibody - BSA Free [NBP1-07035]

Immunohistochemistry-Paraffin: CCL2/MCP1 Antibody [NBP1-07035] - IHC analysis of a formalin-fixed paraffin-embedded (FFPE) human breast carcinoma tissue section using 1:1000 dilution of CCL2/MCP1 antibody (NBP1-07035) on a Bond Rx autostainer (Leica Biosystems). The assay involved 20 minutes of heat induced antigen retrieval (HIER) with 10mM sodium citrate buffer (pH 6.0) and endogenous peroxidase quenching using peroxide block. The sections were incubated with primary antibody for 30 minutes. Bond Polymer Refine Detection (Leica Biosystems) and DAB were used for signal detection which followed counterstaining with hematoxylin. Whole slide scanning and capturing of representative images (20X) were performed using Aperio AT2 (Leica Biosystems). This antibody generated a diffused cytoplasmic staining of CCL2 antigen in the cancer cells, stromal cells as well as the endothelial cells. The stroma itself showed a weak immunopositivity for CCL2. Staining was performed by Histowiz.

Western Blot: CCL2/MCP1 AntibodyBSA Free [NBP1-07035]

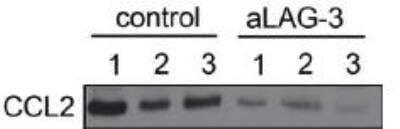

Western Blot: CCL2/MCP1 Antibody [NBP1-07035] - CCL2 expression level was evaluated in control group and aLAG-3 group.

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - Ox-LDL induced macrophage foam cell formation, SIRT1 inhibition, autophagy impairment, & MCP-1 production in THP-1 cellsHuman THP-1 macrophages were exposed to 0, 20, 40, 60, & 80 μg/mL of ox-LDL for 24 hrs. Treated cells were photographed using light microscopy (A). The THP-1 macrophage-derived foam cell formation was determined using ORO staining method (B) & (C). Western blot for SIRT1, LC3, Beclin1, p62, & MCP-1 proteins were analyzed from the ox-LDL-stimulated THP-1 cells. beta-actin was used as loading control (D-I). Scale bar: 20 μm. Bar graph indicates the mean ± SD (n = 3). *P < 0.05 & **P < 0.01 vs. Cont group (0 μg/mL of ox-LDL). Image collected & cropped by CiteAb from the following publication (https://www.oncotarget.com/lookup/doi/10.18632/oncotarget.17691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

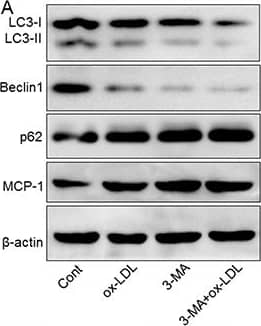

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - Inhibition of autophagy with 3-MA led to increased foam cell formation & MCP-1 productionHuman THP-1 macrophages were pretreated with 3-MA (5 μM) for 2 hrs, & then exposed to 80 μg/mL of ox-LDL for an additional 24 hrs. Western blot for LC3, Beclin1, p62, & MCP-1 proteins were analyzed from the ox-LDL-stimulated THP-1 cells. beta-actin was used as loading control (A-E). THP-1 macrophage-derived foam cell formation was determined using ORO staining method (F-G). Scale bar: 40 μm. Bar graph indicates the mean ± SD (n = 3). *P < 0.05 & **P < 0.01 vs. Cont group; #P < 0.05 & ##P < 0.01 vs. 3-MA group; &P < 0.05 & &&P < 0.01 represent significant differences between ox-LDL group & 3-MA+ox-LDL group. Image collected & cropped by CiteAb from the following publication (https://www.oncotarget.com/lookup/doi/10.18632/oncotarget.17691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

Immunocytochemistry/ Immunofluorescence: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - CCL2-ir cellular distribution in ependymal layers attached to the CC. A, B CCL2-ir (CCL2 panels, arrows) & GFAP (GFAP panels, arrowheads) double immunostained structures (Merged panels, arrow-arrowheads) are seen inlaid in the ependymal layers attached to the CC in both saline & LPS injected mice. C A CCL2-ir & Iba-1 double labeled soma (Merged, arrow-arrowhead) is seen at a corner of lateral ventricle, which seems be just next to an invaginated choroid plexus between the CC & basal ganglion (framed areas & insets). D, E Hyper-ramified & amoeba like Iba-1 labeled cells (Iba-1 panel, opened arrowheads) are observed in the CC of LPS injected mice, indicating their activated states. The CCL2-ir & Iba-1 double labeled structures are also regarded in the ependymal layers (Merged, arrow-arrowheads). Scare bar = 100 µm in all A– E Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35354428), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - Inhibition of autophagy using Atg5 siRNA aggravated foam cell formation & MCP-1 expressionHuman THP-1 macrophages were pretreated with Atg5 siRNA (20 μM) for 24 hrs, & then exposed to 80 μg/mL of ox-LDL for an additional 24 hrs. Western blot forAtg5, LC3, Beclin1, p62, & MCP-1 proteins were analyzed from the ox-LDL-stimulated THP-1 cells. beta-actin was used as loading control (A-F) & (I). THP-1 macrophage-derived foam cell formation was determined using ORO staining method (G) & (H). Scale bar: 40 μm. Bar graph indicates the mean ± SD (n = 3). *P < 0.05 & **P < 0.01 vs. NC siRNA group; #P < 0.05 & ##P < 0.01 vs. Atg5 siRNA group; &P < 0.05 & &&P < 0.01 represent significant differences between NC siRNA+ox-LDL group & Atg5 siRNA+ox-LDL group. Image collected & cropped by CiteAb from the following publication (https://www.oncotarget.com/lookup/doi/10.18632/oncotarget.17691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

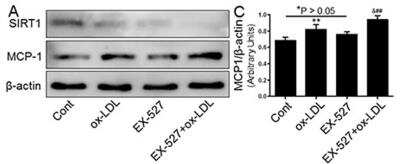

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - Inhibition of SIRT1 using EX-527 or SIRT1 siRNA transfection enhanced MCP-1 expression & foam cell formationHuman THP-1 macrophages were pretreated with EX-527 (2 μM, for 2 hrs) or SIRT1 siRNA (20 μM, for 24 hrs), & then exposed to 80 μg/mL of ox-LDL for an additional 24 hrs. Western blot for SIRT1 & MCP-1 proteins were analyzed from the ox-LDL-stimulated THP-1 cells. beta-actin was used as loading control (A-C) & (F-H). THP-1 macrophage-derived foam cell formation was determined using ORO staining method (D-E) & (I-J). Scale bar: 40 μm. Bar graph indicates the mean ± SD (n = 3). *P < 0.05 & **P < 0.01 vs. Cont group (NC siRNA group); #P < 0.05 & ##P < 0.01 vs. EX-527 group (SIRT1 siRNA group); &P < 0.05 & &&P < 0.01 represent significant differences between ox-LDL group (NC siRNA+ox-LDL group) & EX-527+ox-LDL group (SIRT1 siRNA+ox-LDL group). Image collected & cropped by CiteAb from the following publication (https://www.oncotarget.com/lookup/doi/10.18632/oncotarget.17691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] -

Western Blot: CCL2/MCP1 Antibody - BSA Free [NBP1-07035] - Overexpression of SIRT1 using adenoviral transfection reversed ox-LDL-induced macrophage foam cell formation & autophagy impairment in THP-1 cellsHuman THP-1 macrophages were transfected by SIRT1 over-expressing adenovirus (HBAD-SIRT1) or NC adenovirus (HBAD-GFP) for 24 hrs & then exposed to 80 μg/mL of ox-LDL for an additional 24 hrs. The transfected THP-1 cells were observed using an inverted fluorescence microscope (A) & then were harvested for transfection efficiency analysis by Western blot method (B). THP-1 macrophage-derived foam cell formation was determined using ORO staining method (C) & (D). Western blot for LC3, Beclin1, p62, & Atg5 proteins & immunoprecipitation for acetyl-Lys Atg5 were analyzed from the ox-LDL-stimulated THP-1 cells. beta-actin was used as loading control (E-L). Scale bar: 40 μm. Bar graph indicates the mean ± SD (n = 3). *P < 0.05 & **P < 0.01 vs. HBAD-GFP group; #P < 0.05 & ##P < 0.01 vs. HBAD-SIRT1 group; &P < 0.05 & &&P < 0.01 represent significant differences between HBAD-GFP+ox-LDL group & HBAD-SIRT1+ox-LDL group. Image collected & cropped by CiteAb from the following publication (https://www.oncotarget.com/lookup/doi/10.18632/oncotarget.17691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
