In the presence of Recombinant Mouse M-CSF (20 ng/mL, 416-ML), Recombinant Mouse TRANCE/TNFSF11/RANK L (462-TR) induces osteoclast-like cell formation in RAW 264.7 cells in a dose-dependent manner (orange line), as measured by TRAP (tartrate-resistant acid phosphatase) solution assay. Under these conditions, osteoclast-like cell formation elicited by Recombinant Mouse TRANCE/TNFSF11/ RANK L (30 ng/mL) is neutralized (green line) by increasing concentrations of Goat Anti-Mouse TRANCE/TNFSF11/RANK L Antigen Affinity-purified Polyclonal Antibody (Catalog # AF462). The ND₅₀ is typically <0.500 µg/mL.

Detection of Mouse TRANCE/TNFSF11/RANK L by Immunohistochemistry-Paraffin

MMP2, MMP9, and RANKL expression in AAAs.A. Immunohistochemical staining for indicated proteins of serial sections of aortas one week after CaCl2 treatment. Elastic van Gieson staining is also shown. SM alpha-actin and F4/80 were stained to locate SMCs and macrophages, respectively. Shown are representative images of 4 or more samples in each group. Scale bars, 50 µm. B. Relative positive staining area of MMP2, MMP9, and RANKL in sections from control diet and EPA diet groups. n = 4–5. *P<0.05. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.pone.0096286), licensed under a CC-BY license. Not internally tested by R&D Systems.

Detection of TRANCE/TNFSF11/RANK L by Western Blot

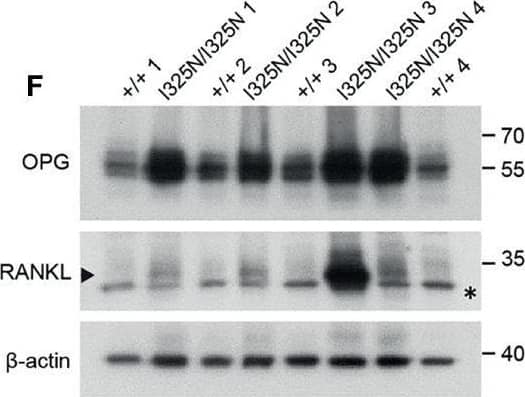

Tnfaip3 I325N mice exhibit impaired mammary development, elevated non-canonical RankL signalling and dampened non-canonical NF-kappa B signalling. (A) Mammary gland whole mounts of the 3rd and 4th mammary gland from 14-week virgin Tnfaip3I325N mice of indicated genotype. * denotes empty fat pad space. LN = lymph node. (B) Representative H&E of mammary gland from does 8.5 days post-partum, and (C) pup weight of resulting pairs, normalised to litter size. (D, E) Quantified positive immunohistochemistry staining for (D) progesterone receptor (PR) or (E) estrogen receptor (ER) (n = 9 Tnfaip3+/+ and 9 Tnfaip3I325N/I325N). (F) 4th Mammary gland from 10-week-old mice were collected and lysed for immunoblot assessment of paracrine hormones OPG and RANKL with Beta-actin used as the loading control.* denotes non-specific band and arrow head denotes specific band. Molecular weight in Kilodaltons is shown to the right of each blot. (G–I) 4th Mammary gland and its lymph node (J–L) from 10-week-old mice were collected for immunoblot (G, J) and densitometry analysis (H, I, K, L) for non-canonical NF-kappa B components NIK, p100/p52 and RelB. Immunoblots are representative of 2 independent experiments with n=6 (H, I) or n = 3 (K, L) biological replicates for both WT and HOM donors. Densitometry values were normalised to the average WT value of each blot to allow cumulative quantification. Error bars represent s.e.m and Student’s T test used for significance analysis * = P < 0.05. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/35464428), licensed under a CC-BY license. Not internally tested by R&D Systems.

View 1 more images

Applications for Mouse TRANCE/TNFSF11/RANK L Antibody

Application

Recommended Usage

Immunohistochemistry

0.25-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of mouse spleen

Western Blot

0.1 µg/mL
Sample: Recombinant Mouse TRANCE/TNFSF11/RANK L (Catalog # 462-TR)

Neutralization

Measured by its ability to neutralize TRANCE/TNFSF11/RANK L-induced osteoclast-like cell formation in RAW 264.7 cells. Nakagawa, N. et al. (1998) Biochim. Biophys. Res. Commun. 253:395. The Neutralization Dose (ND₅₀) is typically <0.500 µg/mL in the presence of 30 ng/mL Recombinant Mouse TRANCE/TNFSF11/RANK L.

Mouse TRANCE/TNFSF11/RANK L Sandwich Immunoassay

ELISA Capture (Matched Antibody Pair)

Recommended Concentration: 0.2-0.8 µg/mL
Use in combination with these reagents:

Detection Reagent: Mouse TRANCE/TNFSF11/RANK L Biotinylated Antibody (Catalog # BAF462)
Standard: Recombinant Mouse TRANCE/RANK L/TNFSF11 Protein (Catalog # 462-TR)

Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 2 reviews rated 5 using AF462 in the following applications:

Immunocytochemistry/Immunofluorescence (1 Review)
Immunohistochemistry (1 Review)

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: TRANCE/TNFSF11/RANK L

TRANCE (receptor activator of NF-kappa B ligand [RANK L], also called TNF-related activation-induced cytokines, osteoprotegerin ligand [OPGL], and osteoclast differentiation factor [ODF]), is a member of the tumor necrosis factor (TNF) family. In the TNF superfamily nomenclature, TRANCE is referred to as TNFSF11. TRANCE was originally identified as an immediate early gene upregulated by T cell receptor stimulation. The murine TRANCE cDNA encodes a type II transmembrane protein of 316 amino acids with a predicted cytoplasmic domain of 48 amino acids and an extracellular domain of 247 amino acids. The extracellular domain contains two potential N-linked glycosylation sites. Mouse and human TRANCE share 85% amino acid identity. TRANCE is primarily expressed in T cells and T cell rich organs, such as thymus and lymph nodes. The multi-functions of TRANCE include induction of activation of the c-jun N-terminal kinase, enhancement of T cell growth and dendritic cell function, induction of osteoclastogenesis, and lymph node organogenesis. RANK is the cell surface signaling receptor of TRANCE. RANK has been shown to undergo receptor clustering during signal transduction. Osteoprotegerin, a soluble member of the TNF receptor family which binds TRANCE, is a naturally occurring decoy receptor that counterbalances the effects of TRANCE.

References

Wong, B.R. et al. (1997) J. Biol. Chem. 272:25190.
Anderson, D.M. et al. (1997) Nature 390:175.
Nakagawa, N. et al. (1998) Biochem. Biophys. Res. Commun. 245:382.
Kong, Y-Y. et al. (1999) Nature 397:315.

Long Name

TNF-related Activation-induced Cytokine

Alternate Names

CD254, ODF, OPGL, RANK L, RANKL, TNFSF11

Entrez Gene IDs

8600 (Human); 21943 (Mouse); 117516 (Rat); 102137946 (Cynomolgus Monkey)

Gene Symbol

TNFSF11

UniProt

O35235
