Simple Plex Human EGF Cartridge
ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000311
Customize Your Simple Plex Cartridge
Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and add up to 8 analytes per cartridge.
Key Product Details
Assay Length
Sample Type & Volume Required Per Well*
Sensitivity
Assay Range
Simple Plex Human EGF Cartridge Summary
*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.
Compatible Instruments
Ella Automated Immunoassay System
Product Specifications
Assay Type
Format
Reactivity
Specificity
Cross-reactivity
Interference
Precision
Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one EGF assay.
Inter-Assay Precision (Precision between assays) Replicates of each EGF control were tested in multiple assays performed by at least three technicians using two lots of reagents for human EGF.
Cell Culture Supernates, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum, Urine
| Intra-Assay Precision | Inter-Assay Precision | |||
|---|---|---|---|---|
| Sample | 1 | 2 | 1 | 2 |
| n | 16 | 16 | 9 | 9 |
| Mean (pg/mL) | 30.8 | 1355 | 30.1 | 1467 |
| Standard Deviation | 1.19 | 79.3 | 1.43 | 139 |
| CV% | 3.9 | 5.9 | 4.8 | 9.5 |
Recovery for Simple Plex Human EGF Cartridge
Recovery for the human EGF assays was evaluated at three different spiked concentrations of EGF protein.
| Sample Type | Average % Recovery | Range % |
|---|---|---|
| Cell Culture Media (n=2) | 114 | 112-117 |
| Platelet-poor EDTA Plasma (n=3) | 92 | 74-103 |
| Platelet-poor Heparin Plasma (n=3) | 89 | 70-103 |
| Serum (n=5) | 93 | 83-107 |
Linearity
Samples containing and/or spiked with high concentrations of human EGF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay
Scientific Data Images for Simple Plex Human EGF Cartridge

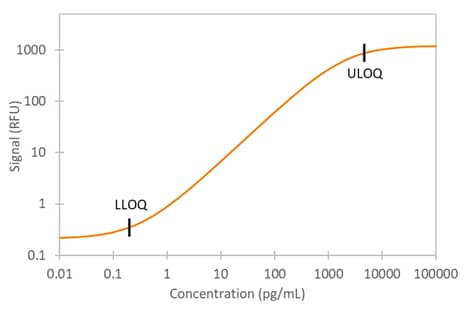

Simple Plex Human EGF Assay Standard Curve
Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human EGF Assay. Assay range is 0.2-4680 pg/mL.Preparation and Storage
Shipping
Stability & Storage
Background: EGF
EGF (Epidermal Growth Factor) is expressed as a transmembrane protein that is proteolytically cleaved to generate soluble forms. It signals through EGF R/ErbB1 which heterodimerizes with ErbB2, ErbB3, or ErbB4 and can also associate with PDGF R beta and HGF R/c-MET. During development, EGF regulates thymocyte differentiation, neuroglia production, and adipocyte maturation. In the adult, EGF plays a role in mammary gland lactogenesis, fibroblast mitosis, dissociation of the extracellular matrix, and cell migration.
Long Name
Alternate Names
Gene Symbol
UniProt
Additional EGF Products
Product Documents for Simple Plex Human EGF Cartridge
Product Specific Notices for Simple Plex Human EGF Cartridge
For research use only
