Western blot shows lysates of LNCaP human prostate cancer cell line and PC-3 human prostate cancer cell line. Gels were loaded with 20 µg of cytoplasmic (Cyto) and 10 µg of nuclear extracts (Nuc). PVDF membrane was probed with 1 µg/mL Goat Anti-Human Max Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4304) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band for Max was detected at approximately 28 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Detection of Human Max by Western Blot

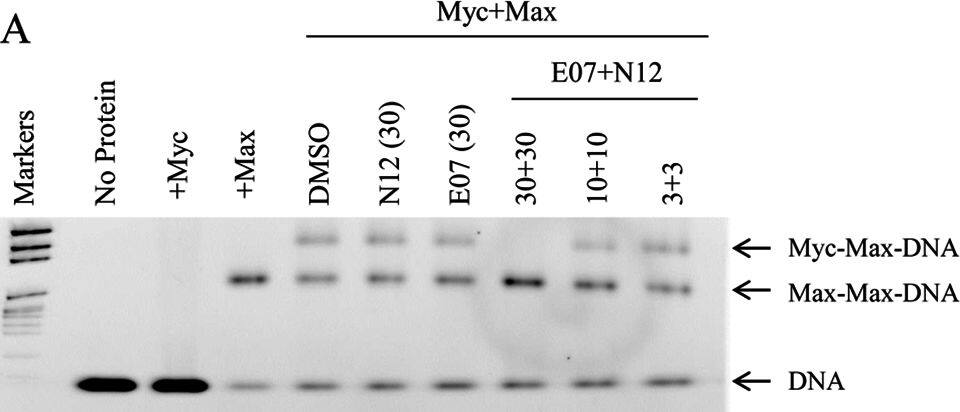

The dimeric inhibitors block Myc:Max but not Max:Max binding to DNA.Gel mobility shift assay showing the effects on Myc:Max DNA complex formation by the dimeric inhibitor E07+N12 (A) and the non-dimerizable control combination E07+C12 (B). The bands that represent protein-DNA complex or naked DNA are shown on the right hand side of each panel. The concentrations indicated are in μM. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25875098), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human Max Antibody

Application

Recommended Usage

Western Blot

1 µg/mL
Sample: LNCaP human prostate cancer cell line and PC-3 human prostate cancer cell line

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Max

Max is a member of the basic helix-loop-helix leucine zipper (bHLHZ) family of transcription factors. Max is able to form homodimers and heterodimers with other family members (Mad, Mxi1, and Myc). These homodimers and heterodimers compete for a common DNA target site (the E box (CACGTG)). MYC:MAX heterodimers are associated with transcriptional activation and cellular proliferation, whereas, the MAD:MAX heterodimers are associated with transcriptional repression and cellular differentiation. Max has six alternatively spliced transcript variants.

Long Name

Myc associated factor X

Alternate Names

BHLHD4, bHLHd4MGC11225, bHLHd5, bHLHd6, bHLHd7, bHLHd8, Class D basic helix-loop-helix protein 4, helix-loop-helix zipper protein, MAX protein, MGC10775, MGC18164, MGC34679, MGC36767, MYC associated factor X, Myc-associated factor X, orf1, protein max

Entrez Gene IDs

4149 (Human); 17187 (Mouse); 60661 (Rat)

Gene Symbol

MAX

UniProt

P61244

Additional Max Products

Product Documents for Human Max Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Human Max Antibody

For research use only

Citations
Reviews

Human Max Antibody

R&D Systems, part of Bio-Techne | Catalog # AF4304

Key Product Details

Species Reactivity

Validated:

Cited:

Applications

Validated:

Cited:

Label

Antibody Source

View all Max Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Human Max Antibody

Detection of Human Max by Western Blot.
