Human HNF-3 beta/FoxA2 Antibody Best Seller

HNF‑3 beta/FoxA2 in Human Liver.

HNF-3 beta/FoxA2 was detected in immersion fixed paraffin-embedded sections of human liver using Goat Anti-Human HNF-3 beta/FoxA2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2400) at 3 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Goat IgG VisUCyte™ HRP Polymer Antibody (VC004). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm and nuclei. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

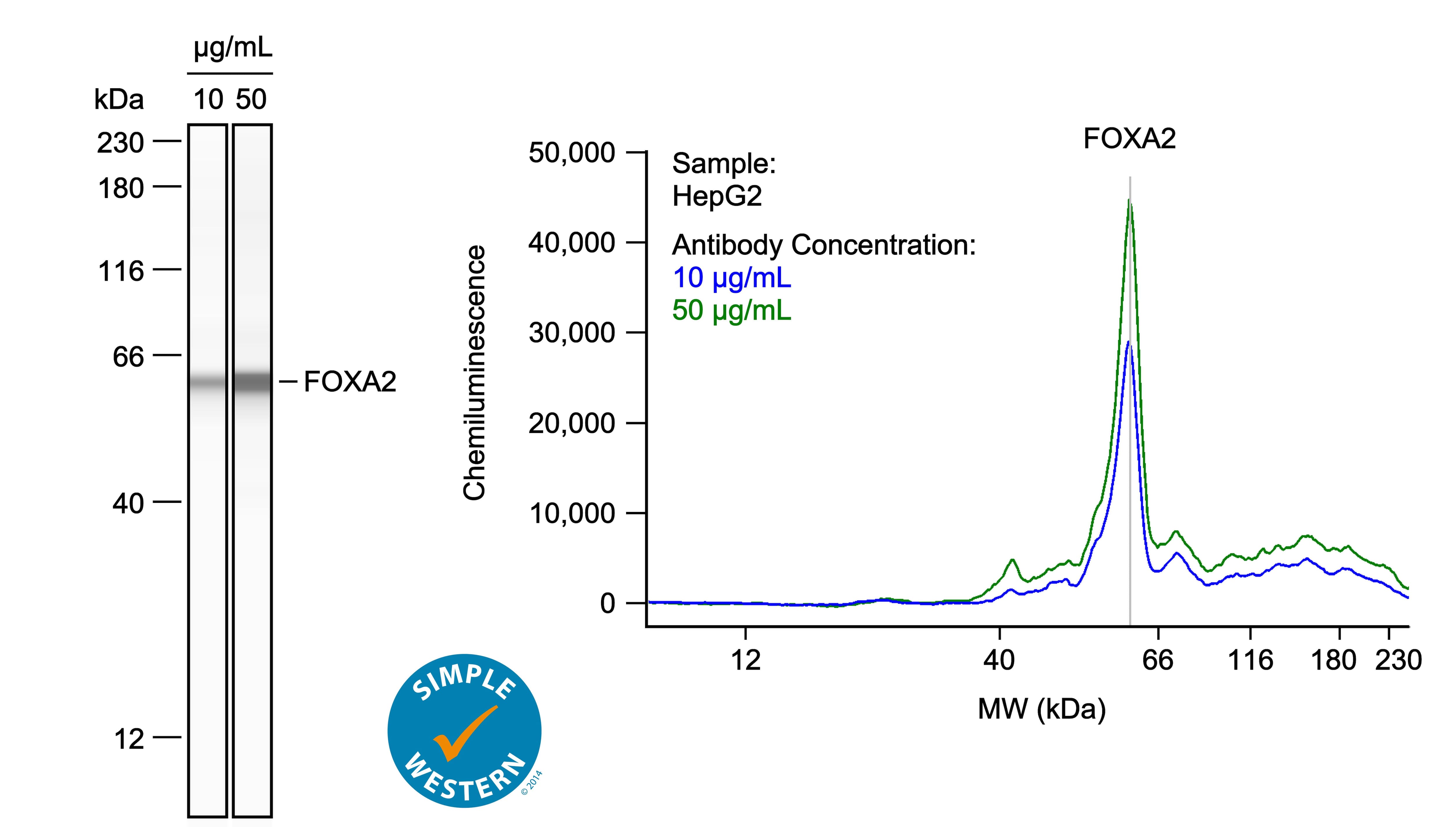

Detection of Human HNF-3 beta/FoxA2 by Simple Western^TM.

Left: Simple Western lane view shows lysates of HepG2 human hepatocellular carcinoma cell line, loaded at 1 mg/ml. A specific band was detected for HNF-3 beta/FoxA2 at approximately 61 kDa (as indicated) using both 10 µg/ml and 50 µg/ml of Goat Anti-Human HNF-3 beta/FoxA2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2400) followed by HRP-conjugated Donkey Anti-Goat Secondary Antibody (Catalog # 043-522-2). This experiment was conducted under reducing conditions and using the 12-230kDa separation system. Right: Simple Western electropherogram showing the same Goat Anti-Human HNF-3 beta/FoxA2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2400) tested at 10 µg/ml (blue line) and 50 µg/ml (green line) in the HepG2 human hepatocellular carcinoma cell line.

Detection of HNF-3 beta/FoxA2 in HepG2 Cells (Positive) and THP-1 Cells (Negative).

HNF-3 beta/FoxA2 was detected in immersion fixed HepG2 Human Hepatocellular Carcinoma Cells (Positive) and absent in THP-1 Human Acute Monocytic Leukemia Cells (Negative) using Goat Anti-Human HNF-3 beta/FoxA2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2400) at 5 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cell nuclei. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

Detection of Human HNF-3 beta/FoxA2 by Immunocytochemistry/Immunofluorescence

Differentiation of hESCs into definitive endoderm cells by Activin A with CHIR99021.a The relative primitive streak (BRACHYRUY, MESP1, and MIXL1) gene expression of the day 1 differentiated cells by adding Activin A (100 ng/mL) with CHIR99021 (2–5 µM) or Wnt3a (25–100 ng/mL) treatments were determined by real-time quantitative PCR (qPCR). None, no WNT signaling pathway activators were used on day 1 for PS differentiation (Activin A only). b, c After 1 day, the medium was changed to Activin A (100 ng/mL) and 1 × CTS-B27 to induce DE differentiation. The definitive endoderm (FOXA2 and SOX17) and mesoderm (MESP2 and HAND1) relative gene expression levels were determined by qPCR. d Immunofluorescence analysis of the expression of SOX17 and FoxA2 for Activin A with 2 µM CHIR99021-induced differentiated cells on day 3. e, f The expression of SOX17 and FoxA2 for Activin A with 2 µM CHIR99021-induced differentiated cells was determined by flow cytometry on day 3. Isotype control antibodies were used as controls. At a specific gene expression, datum points lacking common letters differ, p < 0.05. Data are represented as the mean ± SD. Scale bar, 100 µm Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31601782), licensed under a CC-BY license. Not internally tested by R&D Systems.

Immunofluorescent Staining of Adult Stem Cell-derived Liver Organoids.

Adult stem cell-derived liver organoids were generated following the steps detailed in the human liver organoid culture protocol. Differentiated human liver organoids were stained using a (A) Mouse Anti-Human Serum Albumin Monoclonal Antibody (Catalog # MAB1455; red) and a (B) Goat Anti-Human HNF-3beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2400; red) and counterstained with DAPI (Catalog # 5748; blue).

Detection of HNF-3 beta/FoxA2 by Flow Cytometry

FOXA2 drives the p3-specific chromatin accessibility program(A) Footprinting score for the FOX motif is highest in p3 samples.(B) Foxa2 expression in p3 NPs suggests it is the most likely candidate to drive the footprinting signal.(C) Average ATAC-seq accessibility at FOXA2 ChIP-seq peaks13 in the indicated samples shows these regions are highly accessible in p3 NPs.(D) Normalized FOXA2 ChIP-seq coverage showing accessibility in p3-specific elements from the groups of ATAC-seq elements in the indicated clusters from Figure 3B.(E) Genetic lineage tracing indicates that cells that expressed Foxa2 at E8.5 (tamoxifen administration) have contributed to the p3 progenitor and V3 neuronal cell types by E11.5 (red arrows).(F) Quantifications of p3 and V3 cells expressing tdTomato in embryos collected after tamoxifen administration at the indicated times. Biological replicates: n = 2 for E7.5, n = 4 for E8.5, n = 3 for E9.5.(G) Foxa2−/− ES cells fail to generate p3 NPs when exposed to 500 nM SAG.(H) Representative flow cytometry plots of the quantifications in (G) showing a marked reduction in p3 NPs from Foxa2−/− ES cells compared with wild type. Cells are gated for SOX2+ live neural progenitors.(I) Representative immunohistochemistry staining for SOX2, OLIG2 and NKX2,2 showing reduced number of cells expressing NKX2.2 in Foxa2−/− mutant cells at day 6 of differentiation treated with 500 nM SAG.Scale bars, 50 μm.See also Figure S4. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/36516856), licensed under a CC-BY license. Not internally tested by R&D Systems.

Detection of HNF-3 beta/FoxA2 by Immunocytochemistry/ Immunofluorescence

Expression profiles and functional enrichments of marker genes across time points identified during hESC differentiation. A. UMAP visualization of the expression of well-defined marker genes of different stages in hESC differentiation. B. The representative immunofluorescence staining for definitive endoderm cells with antibodies against SOX17 and FOXA2. DAPI serves as a nucleus indicator. The individual color channels were merged to assess the colocalization of SOX17 an FOXA2 expression in the nuclei. Scale bars, 200 μm. C. Dot plot showing the average and percentage expression of well-defined marker genes in different stages or cell types. Genes are colored according to their mean expression level. Diameter denotes fractional expression. SC-alpha, SC-beta, and SC-EC represent stem-cell-derived alpha, beta, and enterochromaffin cells, respectively. D. Heatmap showing the expression of the top ten marker genes of each time point. lncRNA genes are indicated by arrows. E. Enriched GO terms of marker genes of each time point. F. UMAP visualization of the expression of genes related to endoderm formation. G. Violin plots showing the expression of lncRNA genes that listed in the top 10 marker genes of each time point Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/36907881), licensed under a CC-BY license. Not internally tested by R&D Systems.

Detection of HNF-3 beta/FoxA2 by Immunocytochemistry/ Immunofluorescence

Expression profiles and functional enrichments of marker genes across time points identified during hESC differentiation. A. UMAP visualization of the expression of well-defined marker genes of different stages in hESC differentiation. B. The representative immunofluorescence staining for definitive endoderm cells with antibodies against SOX17 and FOXA2. DAPI serves as a nucleus indicator. The individual color channels were merged to assess the colocalization of SOX17 an FOXA2 expression in the nuclei. Scale bars, 200 μm. C. Dot plot showing the average and percentage expression of well-defined marker genes in different stages or cell types. Genes are colored according to their mean expression level. Diameter denotes fractional expression. SC-alpha, SC-beta, and SC-EC represent stem-cell-derived alpha, beta, and enterochromaffin cells, respectively. D. Heatmap showing the expression of the top ten marker genes of each time point. lncRNA genes are indicated by arrows. E. Enriched GO terms of marker genes of each time point. F. UMAP visualization of the expression of genes related to endoderm formation. G. Violin plots showing the expression of lncRNA genes that listed in the top 10 marker genes of each time point Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/36907881), licensed under a CC-BY license. Not internally tested by R&D Systems.

Detection of HNF-3 beta/FoxA2 by Flow Cytometry

FOXA2 drives the p3-specific chromatin accessibility program(A) Footprinting score for the FOX motif is highest in p3 samples.(B) Foxa2 expression in p3 NPs suggests it is the most likely candidate to drive the footprinting signal.(C) Average ATAC-seq accessibility at FOXA2 ChIP-seq peaks13 in the indicated samples shows these regions are highly accessible in p3 NPs.(D) Normalized FOXA2 ChIP-seq coverage showing accessibility in p3-specific elements from the groups of ATAC-seq elements in the indicated clusters from Figure 3B.(E) Genetic lineage tracing indicates that cells that expressed Foxa2 at E8.5 (tamoxifen administration) have contributed to the p3 progenitor and V3 neuronal cell types by E11.5 (red arrows).(F) Quantifications of p3 and V3 cells expressing tdTomato in embryos collected after tamoxifen administration at the indicated times. Biological replicates: n = 2 for E7.5, n = 4 for E8.5, n = 3 for E9.5.(G) Foxa2−/− ES cells fail to generate p3 NPs when exposed to 500 nM SAG.(H) Representative flow cytometry plots of the quantifications in (G) showing a marked reduction in p3 NPs from Foxa2−/− ES cells compared with wild type. Cells are gated for SOX2+ live neural progenitors.(I) Representative immunohistochemistry staining for SOX2, OLIG2 and NKX2,2 showing reduced number of cells expressing NKX2.2 in Foxa2−/− mutant cells at day 6 of differentiation treated with 500 nM SAG.Scale bars, 50 μm.See also Figure S4. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/36516856), licensed under a CC-BY license. Not internally tested by R&D Systems.
