Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

Western Blot, Neutralization, Flow Cytometry, CyTOF-ready

Cited:

Immunohistochemistry-Frozen, Western Blot, Flow Cytometry, Immunoprecipitation

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

S. frugiperda insect ovarian cell line Sf 21-derived recombinant human Common  gamma Chain/IL‑2 R gamma
Leu23-Asn254
Accession # P31785

Specificity

Detects human Common  gamma Chain/IL‑2 R gamma in direct ELISAs and Western blots. In direct ELISAs, approximately 50% cross-reactivity with recombinant mouse IL-2 R gamma is observed, less than 10% cross-reactivity with recombinant human (rh) IL-2 R beta is observed, and less than 2% cross-reactivity with rhIL-2 R alpha is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Endotoxin Level

<1.0 EU per 1 μg of the antibody by the LAL method.

Scientific Data Images for Human Common  gamma Chain/IL-2 R gamma Antibody

Cell Proliferation Induced by IL‑2 and Neutralization by Human Common  gamma Chain/ IL‑2 R gamma Antibody.

Cell Proliferation Induced by IL‑2 and Neutralization by Human Common gamma Chain/ IL‑2 R gamma Antibody.

Recombinant Human IL-2 (Catalog # 202-IL) stimulates proliferation in the MO7e human megakaryocytic leukemic cell line in a dose-dependent manner (orange line). Proliferation elicited by Recombinant Human IL-2 (30 ng/mL) is neutralized (green line) by increasing concentrations of Goat Anti-Human Common gamma Chain/ IL-2 R gamma Antigen Affinity-purified Polyclonal Antibody (Catalog # AF284). The ND50 is typically 20-60 µg/mL.

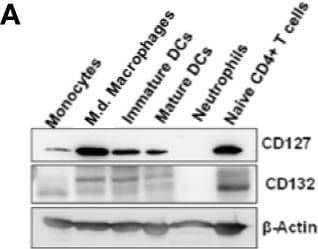

Detection of Common gamma Chain/IL-2 R gamma by Western Blot

Detection of Common gamma Chain/IL-2 R gamma by Western Blot

Inducible expression of CD127 in monocyte-derived macrophages. (A) Selected immune cells from the innate and adaptive immune system were isolated from Buffy Coats from healthy donors. Some cell types (Neutrophils, CD14+ monocytes, and naive CD4+ T cells were lysed directly after the isolation. Some CD14+ monocytes were matured into Monocyte-derived macrophages, immature and mature DCs as described in the methods section. The amount of CD127 and CD132 was analyzed via Western Blot with beta-Actin as reference. One out of two experiments (n=2) is shown as demonstration. (B) mRNA levels of CD127 and CD132 relative to housekeeping GAPDH mRNA in freshly isolated monocytes and DCs, which were stimulated with 10 ng/ml lipopolysaccharide (LPS) for the displayed time points. Standard deviations of two experiments (n=2) performed with three replicates each are shown. *P < 0.05 for comparison of the indicated time points with baseline. (C) mRNA levels of CD127 and CD132 relative to housekeeping GAPDH mRNA in monocyte-derived macrophages, which were stimulated with 10 ng/ml LPS, 100 ng/ml poly(I:C) HMW or 100 ng/ml pams3CSK4, with or without 5 µg/ml antibody against IFNAR1, for the time points shown. Standard deviations of three experiments (n=3) performed with three replicates each are shown. *P < 0.05 for comparison of the indicated time points with baseline. (D) Monocyte-derived macrophages were stimulated with 10 ng/ml LPS for the displayed time points. The amount of CD127 and CD132 was assessed by Western Blot (top panel) and by immunofluorescence (bottom panel). One out of two experiments (n=2) is shown as demonstration. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/33584648), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human Common  gamma Chain/IL-2 R gamma Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: Daudi human Burkitt's lymphoma cell line

Western Blot

0.1 µg/mL
Sample: Recombinant Human Common  gamma Chain/IL-2 R gamma (Catalog # 384-RG)

Neutralization

Measured by its ability to neutralize IL‑2-induced proliferation in the MO7e human megakaryocytic leukemic cell line. Avanzi, G. et al. (1988) Br. J. Haematol. 69:359. The Neutralization Dose (ND50) is typically 20-60 µg/mL in the presence of 30 ng/mL Recombinant Human IL‑2.

Reviewed Applications

Read 1 review rated 5 using AF284 in the following applications:

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Common gamma Chain/IL-2 R gamma

The gamma chain of the high affinity functional human IL-2 receptor complex belongs to the hematopoietin receptor family. IL-2 R gamma is a 369 amino acid residue protein consisting of a 22 residue signal sequence, a 232 residue extracellular domain, a 29 residue transmembrane domain and an 86 residue cytoplasmic domain. Although IL-2 R gamma by itself does not bind IL-2 with any appreciable affinity, it is required for IL-2 receptor signaling. Besides IL-2, the gamma chain has been shown to be a component of the functional receptor complexes for IL-4, IL-7, IL-9 and IL-15. It has been proposed that IL-2 R gamma be designated the common gamma chain ( gammac). The site of molecular defects in X-linked SCID (severe combined immunodeficiency) has now been mapped to the IL-2 R gamma gene.

References

  1. Minami, Y. et al. (1993) Annu. Rev. Immunol. 11:245.
  2. Noguchi, M. et al. (1993) Science 262:1877.

Long Name

IL-2 Receptor gamma

Alternate Names

CD132, IL-2 R gamma, IL2R gamma, IL2RG

Entrez Gene IDs

3561 (Human); 16186 (Mouse)

Gene Symbol

IL2RG

UniProt

Additional Common gamma Chain/IL-2 R gamma Products

Product Documents

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human Common  gamma Chain/IL-2 R gamma Antibody

For research use only
