CD31 was detected in immersion fixed paraffin-embedded sections of human Lymph Node using Mouse Anti-Human CD31, Monoclonal Antibody (Catalog #MAB11666) at 0.1ug/mL at 37 ° Celsius for 4 minutes. Before incubation with the primary antibody, tissue underwent an all-in-one dewaxing and antigen retrieval preprocessing using PreTreatment Module (PT Module) and Dewax and HIER Buffer H (pH 9; Epredia Catalog # TA-999-DHBH).Tissue was stained using the Alexa Fluor™ 647 Goat anti-Mouse IgG Secondary Antibody at 1:200 at 37 ° Celsius for 2 minutes. (Yellow; Lunaphore Catalog # DR647MS) and counterstained with DAPI (blue; Lunaphore Catalog # DR100). Specific staining was localized to the membrane. Protocol available in COMET™ Panel Builder.

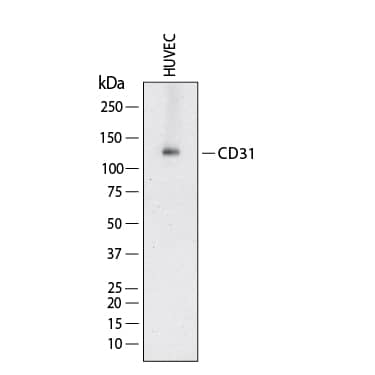

Detection of Human CD31/PECAM-1 by Western Blot.

Western Blot shows lysates of HUVEC human umbilical vein endothelial cells. PVDF membrane was probed with 2 µg/ml of Mouse Anti-Human CD31/PECAM-1 Monoclonal Antibody (Catalog # MAB11666) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for CD31/PECAM-1 at approximately 130 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.

Detection of CD31/PECAM-1 in Human Liver Tumor.

CD31/PECAM-1 was detected in immersion fixed paraffin-embedded sections of human liver tumor using Mouse Anti-Human CD31/PECAM-1 Monoclonal Antibody (Catalog # MAB11666) at 0.05 µg/ml for 1 hour at room temperature followed by incubation with the Anti-Mouse IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC001) or the HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF007). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using VisUCyte Antigen Retrieval Reagent-Basic (Catalog # VCTS021). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to the cell surface. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

View 2 more images

Applications for Human CD31/PECAM-1 Antibody

Application

Recommended Usage

Immunohistochemistry

0.05-10 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human liver tumor and normal human liver

Multiplex Immunofluorescence

0.1 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human Lymph Node

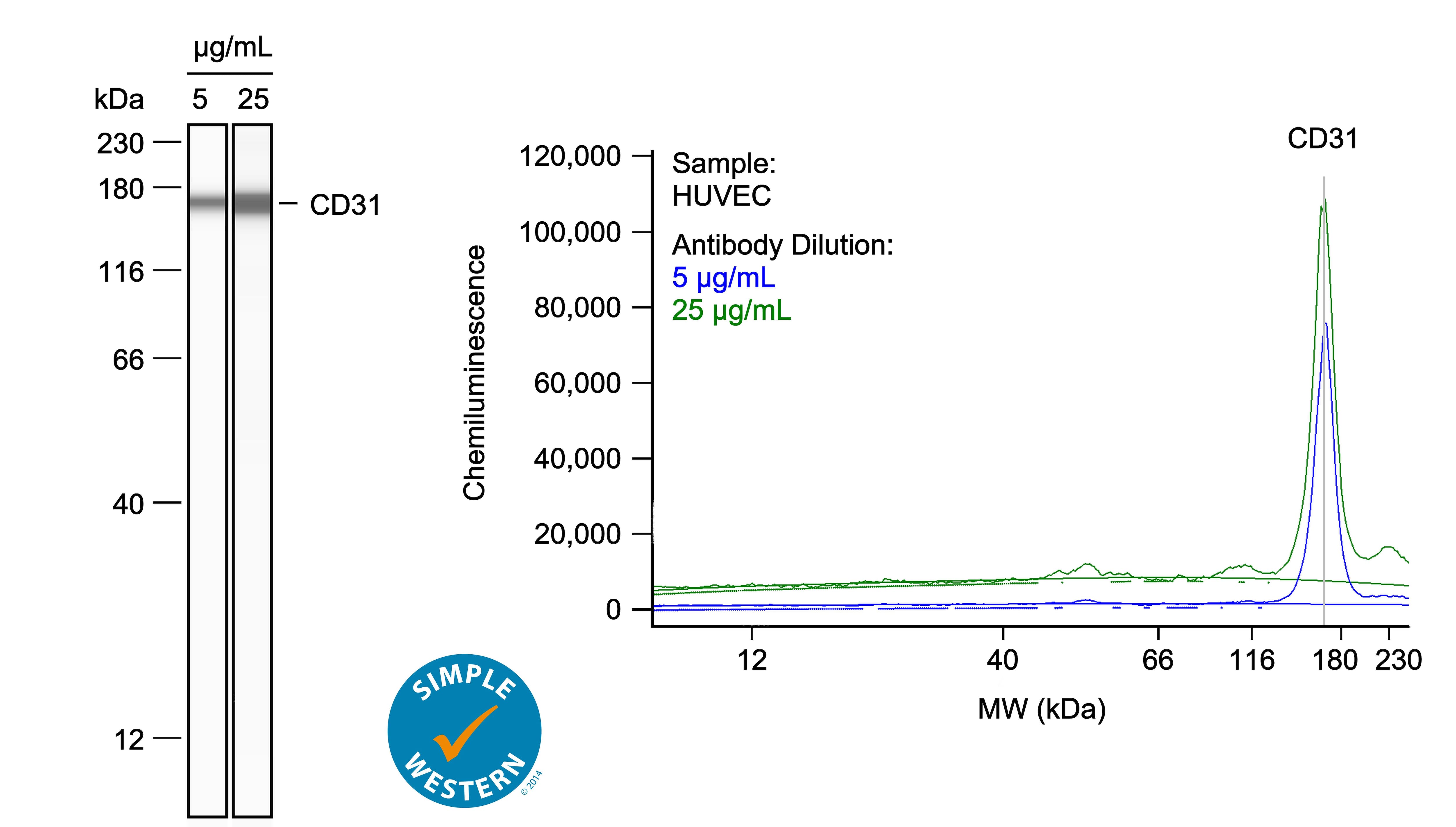

Simple Western

5-25 µg/mL
Sample: HUVEC human umbilical vein endothelial cells

Western Blot

2 µg/mL
Sample: HUVEC human umbilical vein endothelial cells

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute lyophilized material at 0.2 mg/ml in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CD31/PECAM-1

The CD31 adhesion molecule, also known as PECAM-1, is expressed in large amounts on endothelial cells at intercellular junctions and on T cell subsets, and to a lesser extent on platelets and most other leukocytes such as monocytes and neutrophils. CD31 binds to itself homotypically, and also to the leukocyte integrin alphav beta3 heterotypically. CD31 is required for the transendothelial migration of leukocytes through intercellular junctions of vascular endothelial cells. CD31 has been found in human plasma, and the presence of this circulating isoform is suggested to modulate the transendothelial migration of leukocytes.

Long Name

Platelet Endothelial Cell Adhesion Molecule 1

Alternate Names

CD31, EndoCAM, PECA1, PECAM-1, PECAM1

Entrez Gene IDs

5175 (Human); 18613 (Mouse); 29583 (Rat)

Gene Symbol

PECAM1

UniProt

P16284

Additional CD31/PECAM-1 Products

Product Documents for Human CD31/PECAM-1 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Human CD31/PECAM-1 Antibody

For research use only

Citations
Reviews

Human CD31/PECAM-1 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB11666

Key Product Details

Species Reactivity

Applications

Label

Antibody Source

View all CD31/PECAM-1 Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Human CD31/PECAM-1 Antibody

Detection of CD31 in Human Lymph Node via seqIF™ staining on COMET™
